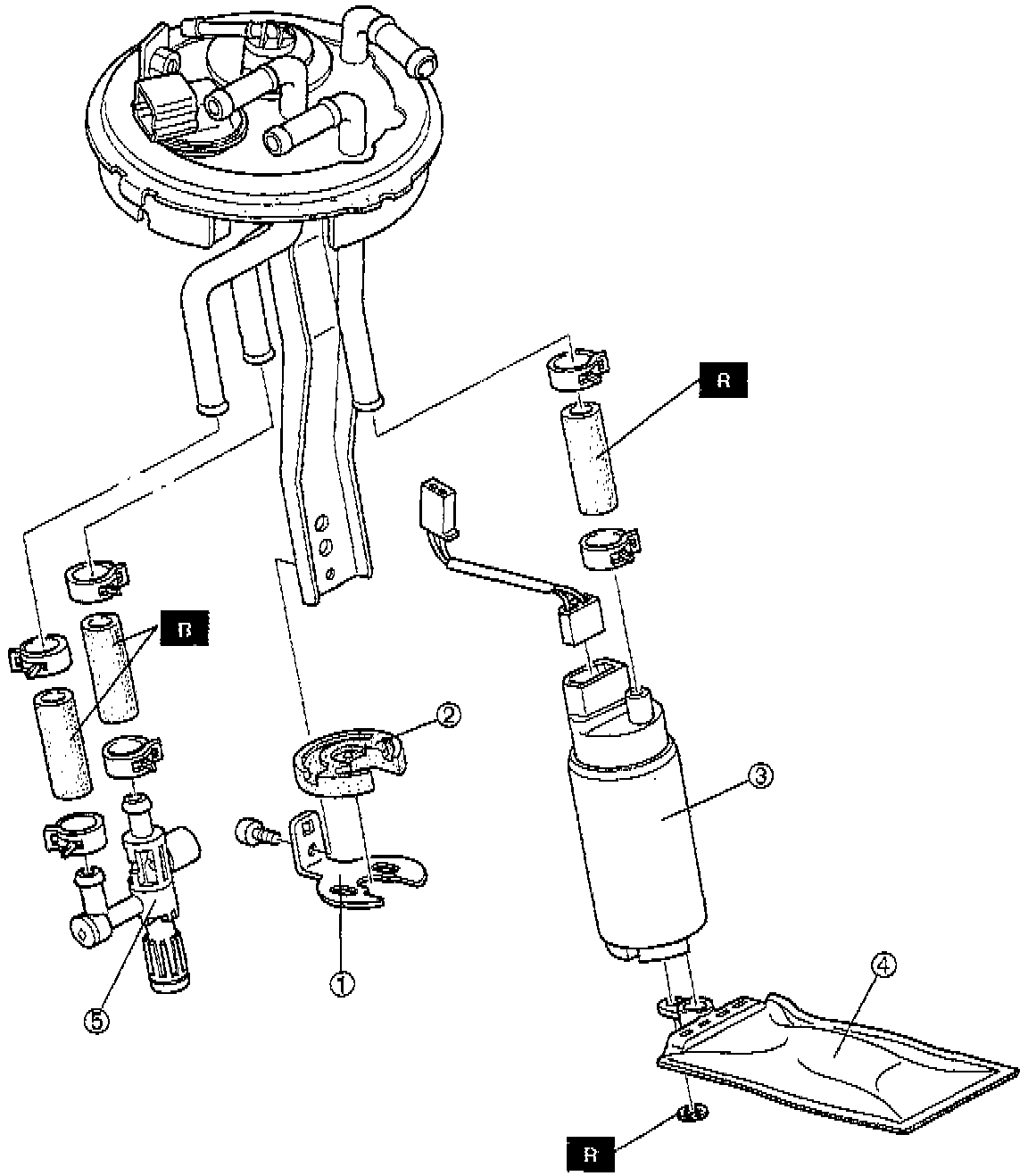

Fuel Pump





1. Bracket
2. Rubber mount
3. Fuel pump
4. Fuel filter (Low-pressure side)
5. Fuel pump (transfer)
