626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>

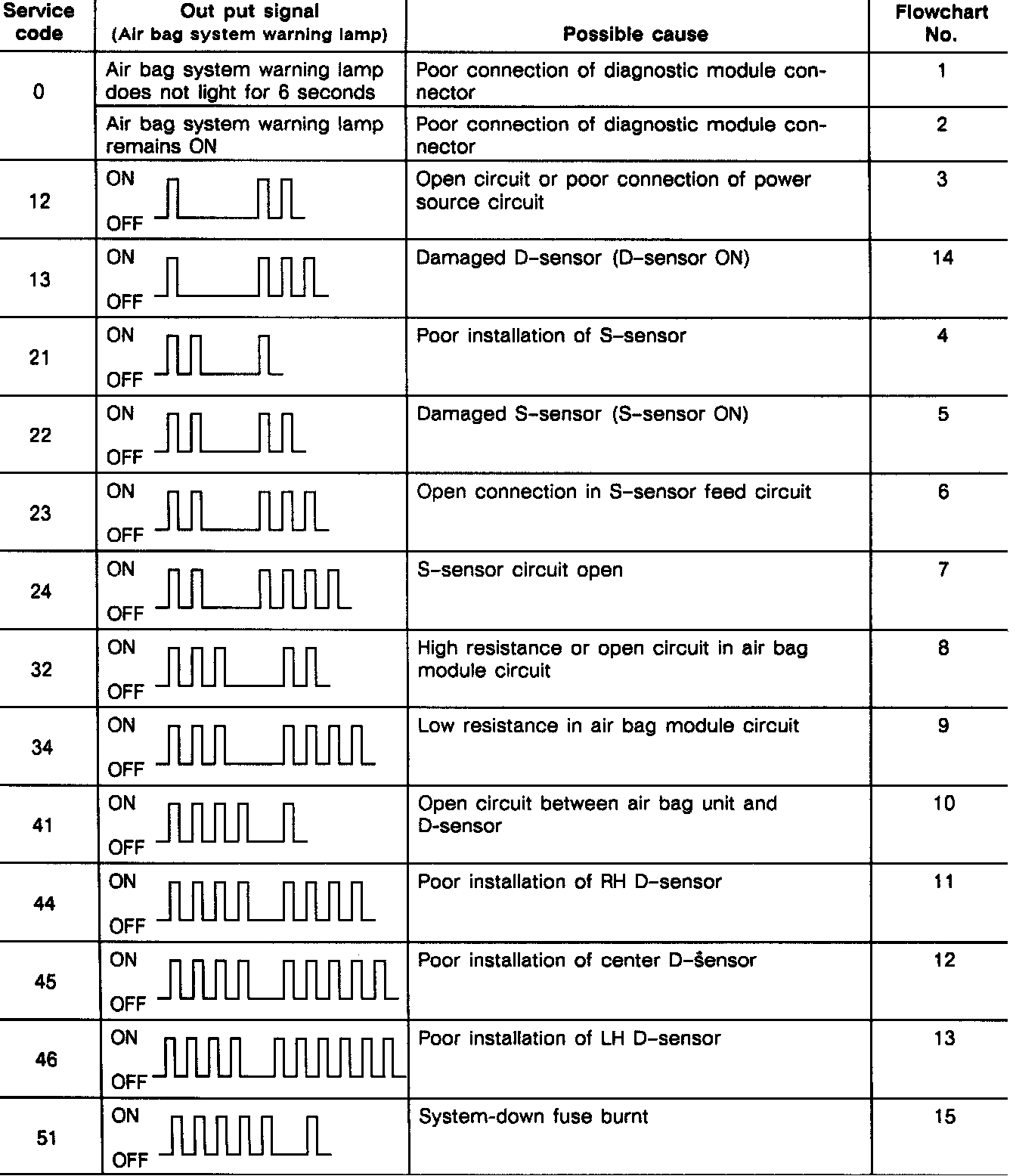

Service Code Table
Service Code Table
Service Code Table
Note:
If two or more troubles exist in the air bag system, the warning lamp indicates the cause of the trouble with the highest priority.
