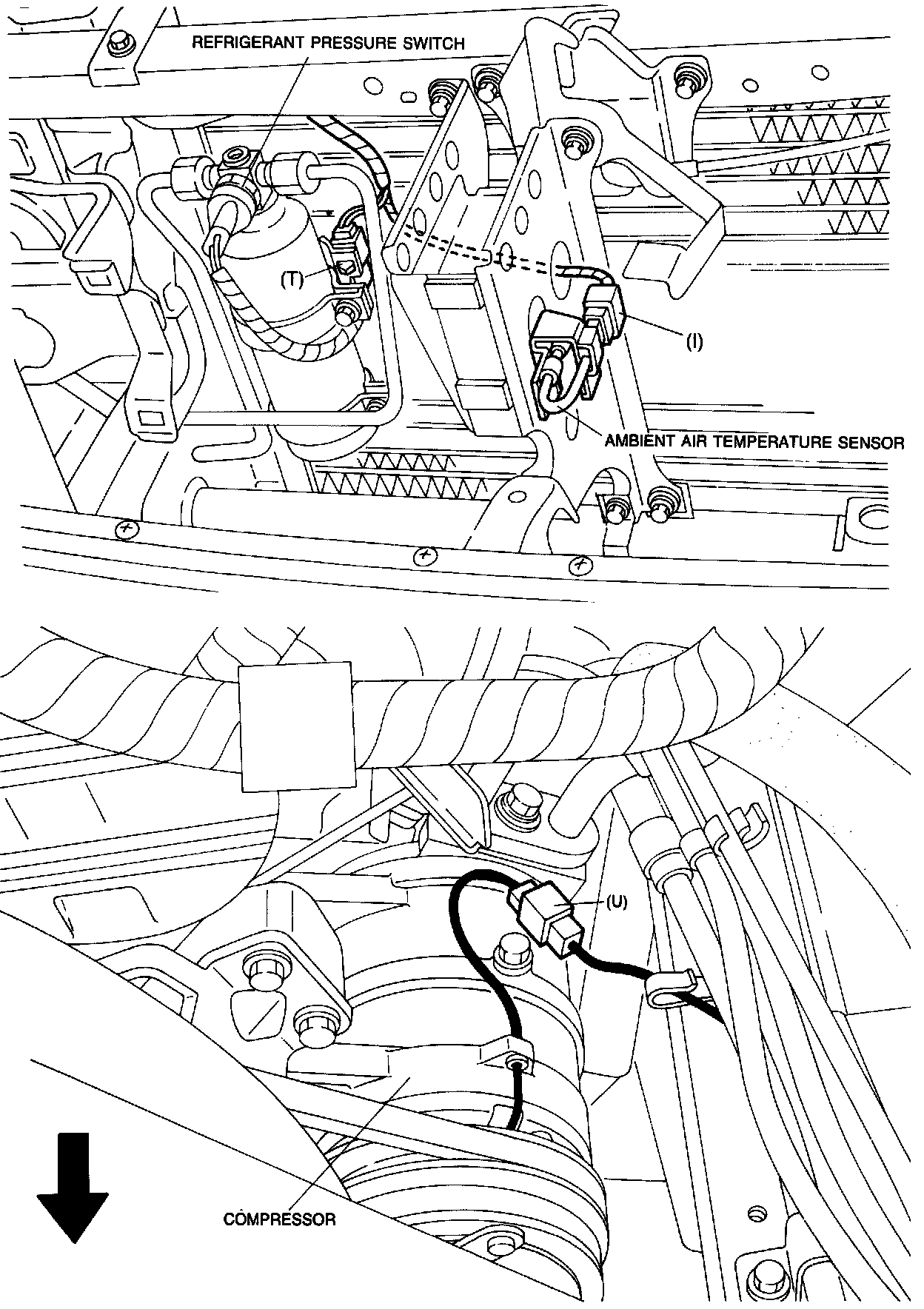

Heating and Air Conditioning: Locations

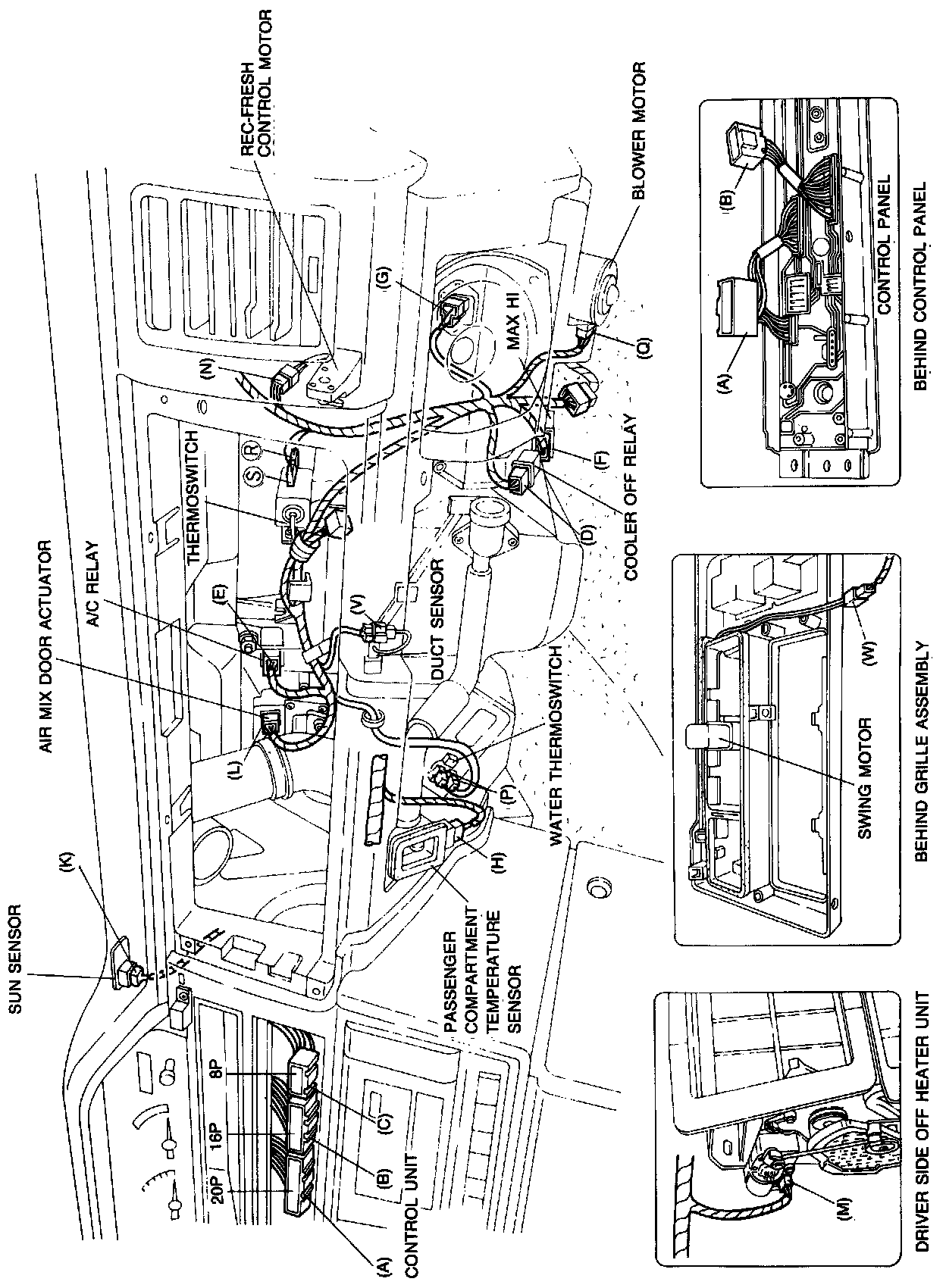

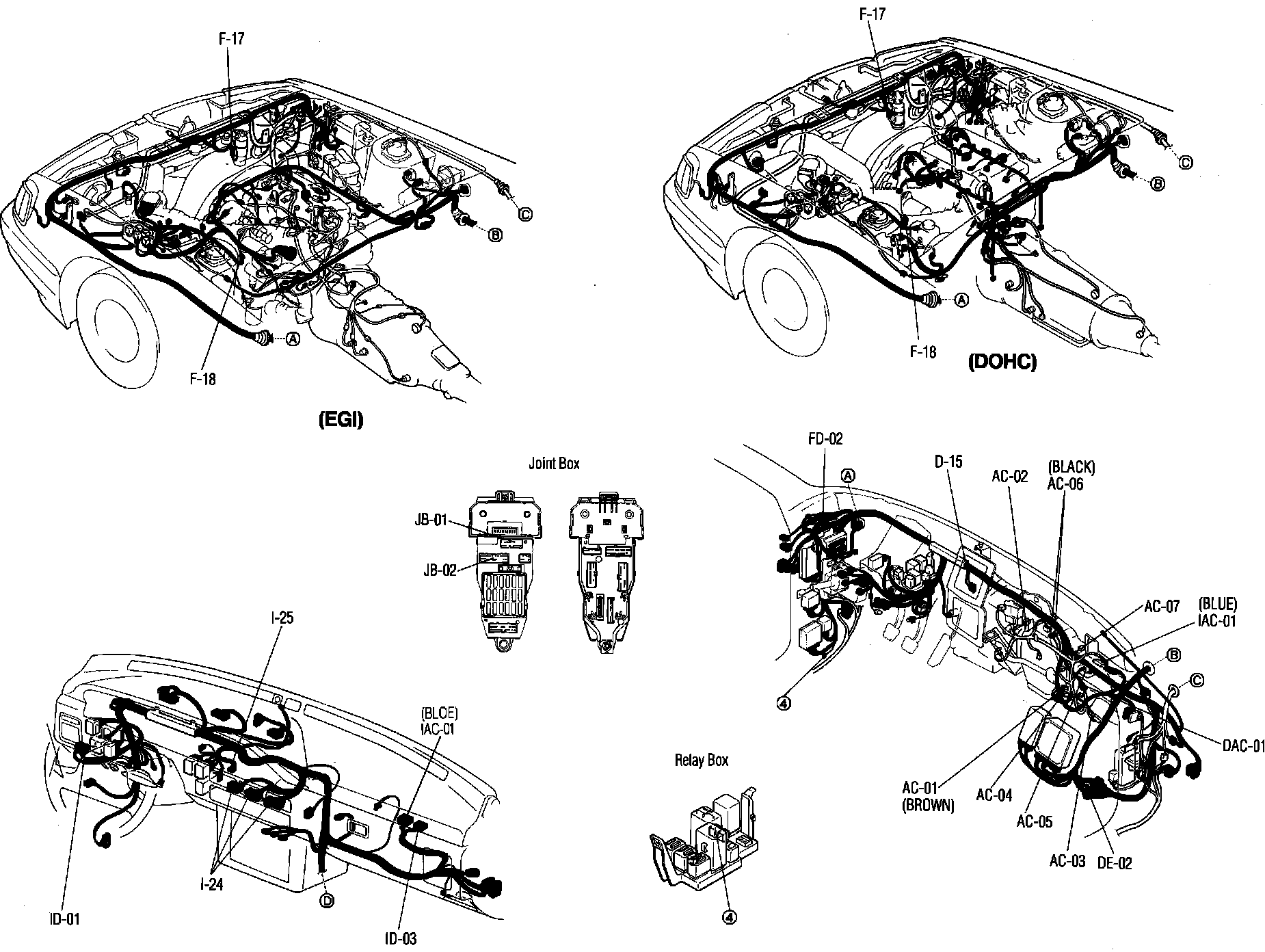

Heater & Air Conditioning. Harness Locations:

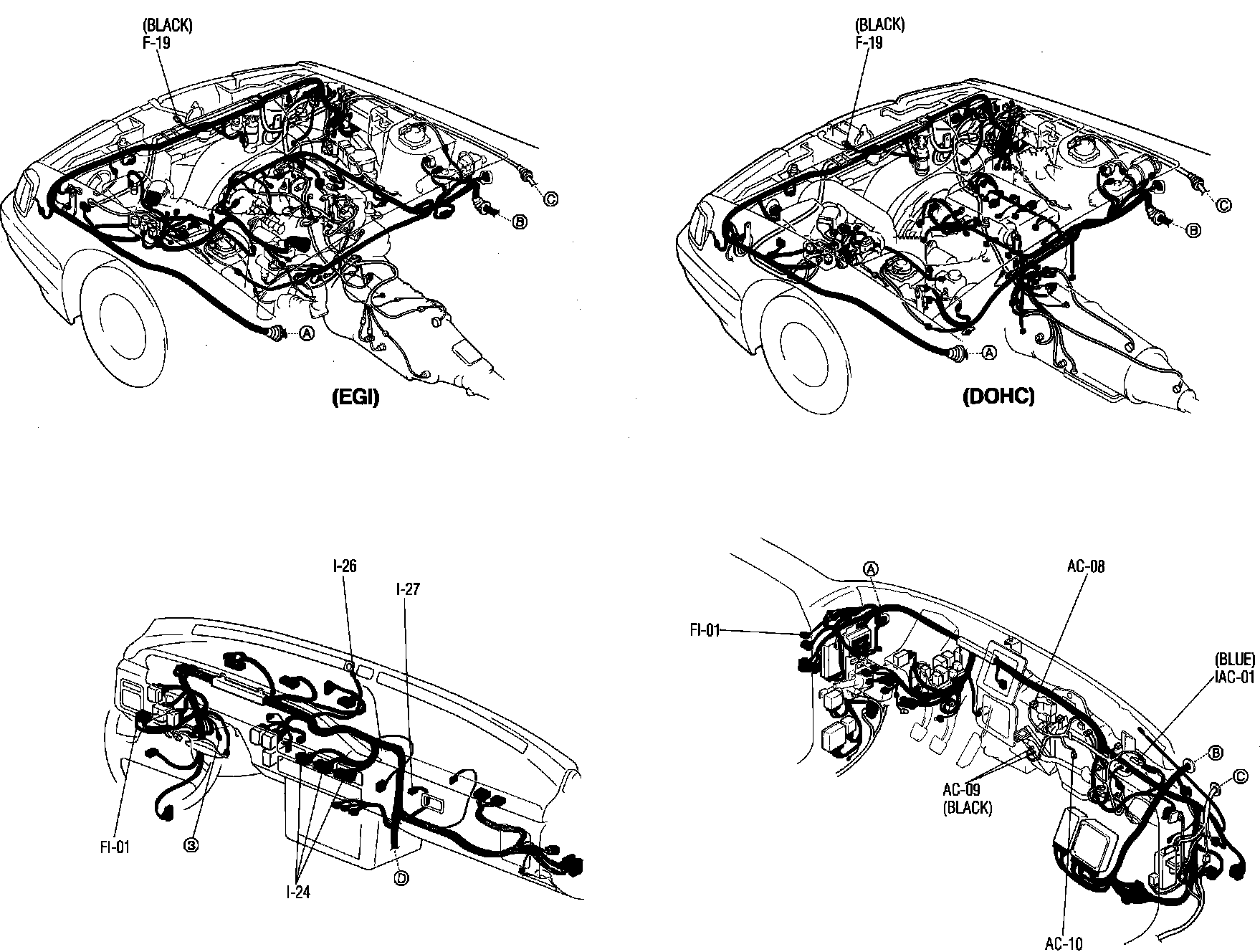

Heater & Air Conditioning. Harness Locations:
