Home >> Mazda >> 1985 >> RX7 2RTR-1308cc 80 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Fuel Not Accepted Smoothly

Fuel Not Accepted Smoothly

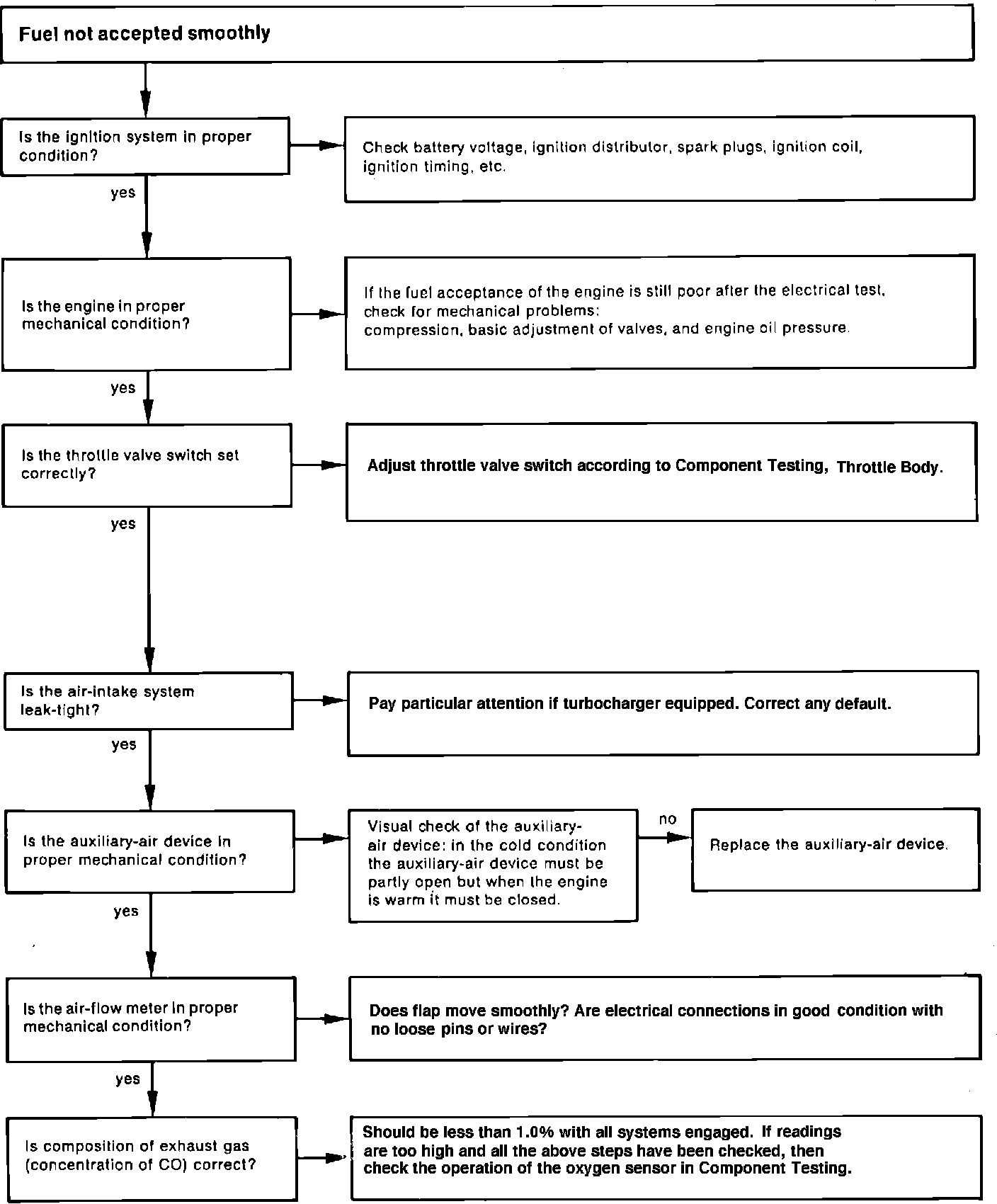

Fig. 4 Fuel not accepted smoothly.:
