Computers and Control Systems

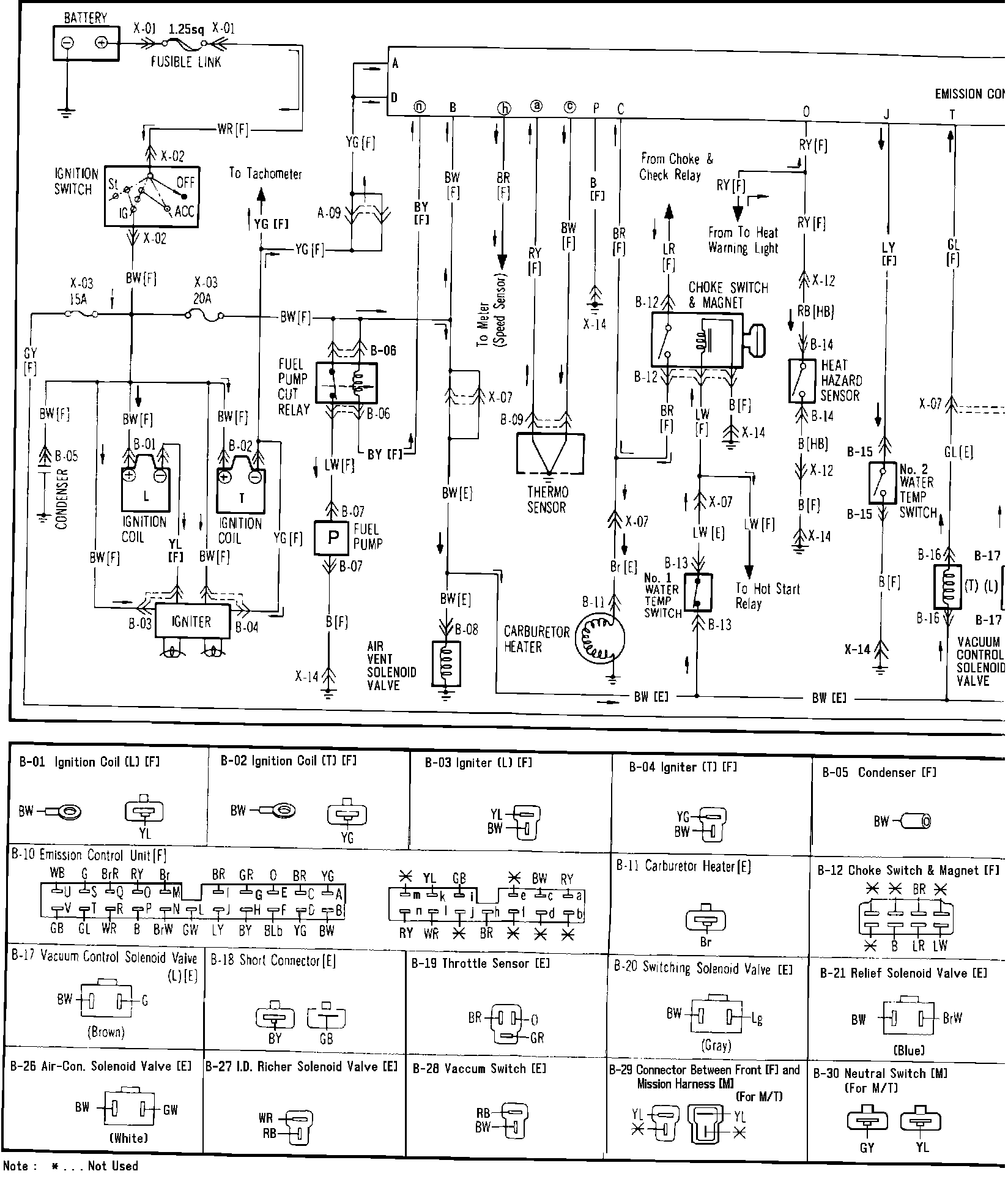

n��%Fig. 34b Emission Control, Ignition System & Fuel Pump Wiring Circuit W/Carbureted Engine:
