Electrical Diagrams

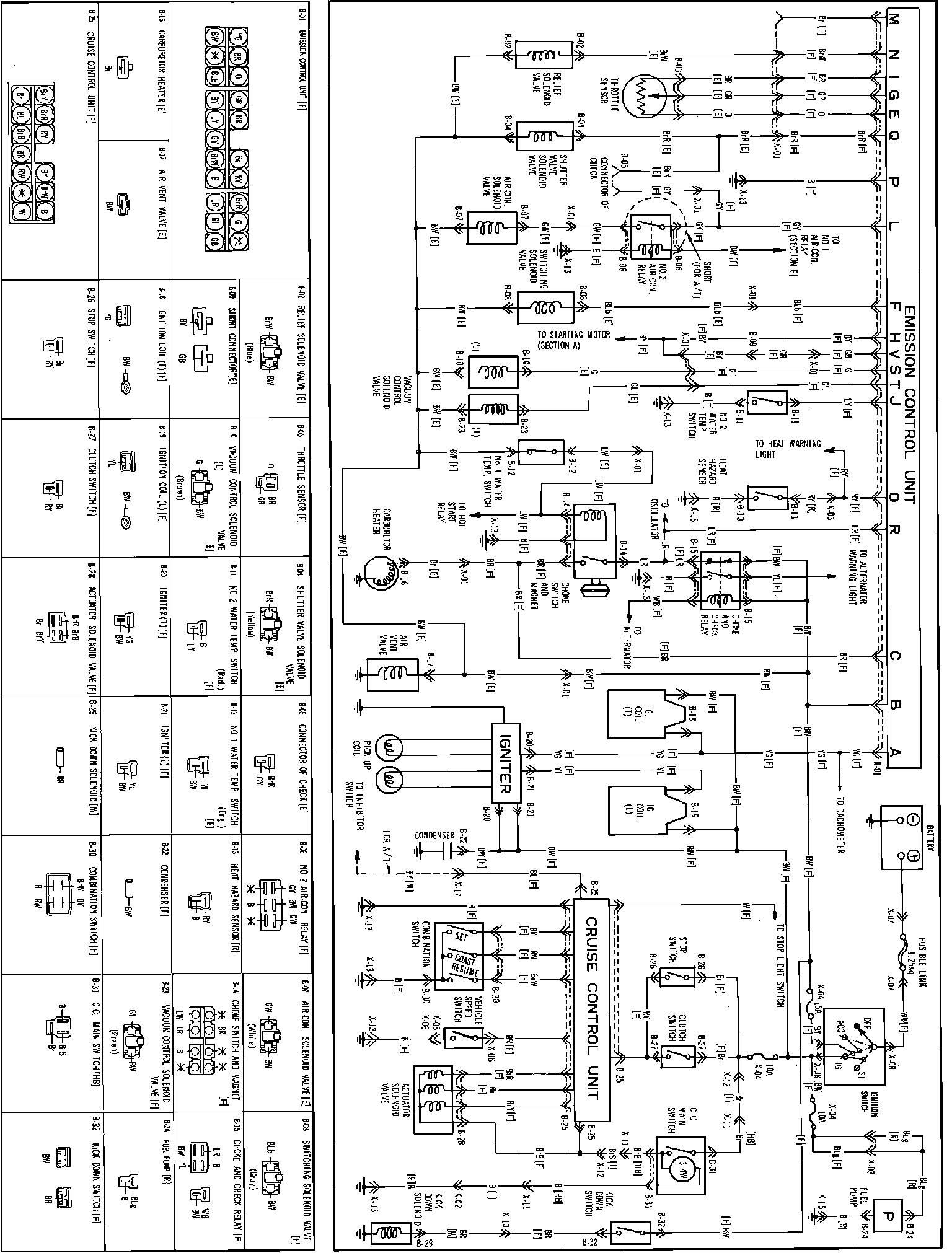

Fig. 19 Cruise Control, Emission Control, Ignition & Kickdown System & Fuel Pump:
