Mechanical Specifications
>>
Differential Assembly
Differential Assembly

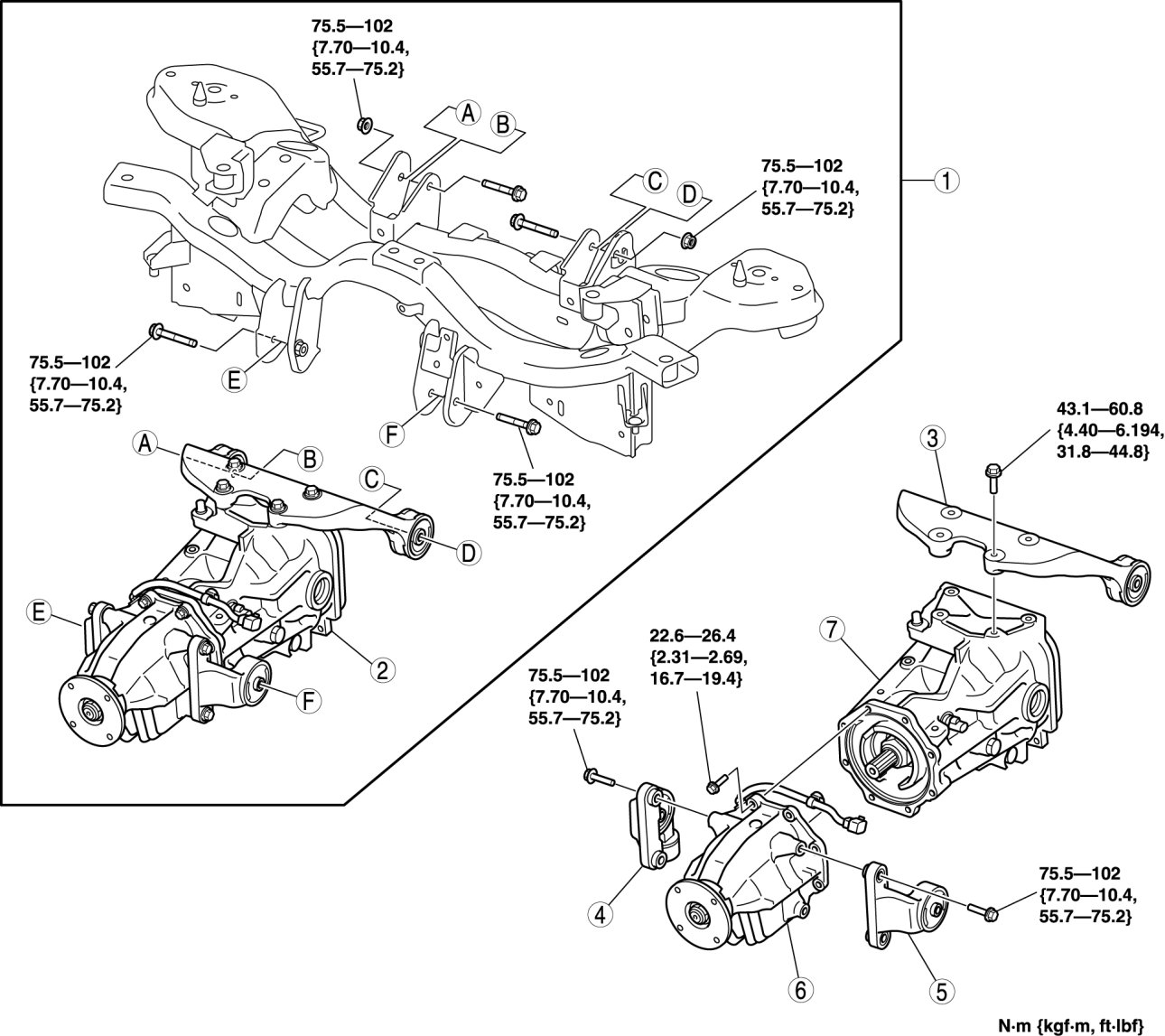

REAR DIFFERENTIAL REMOVAL/INSTALLATION

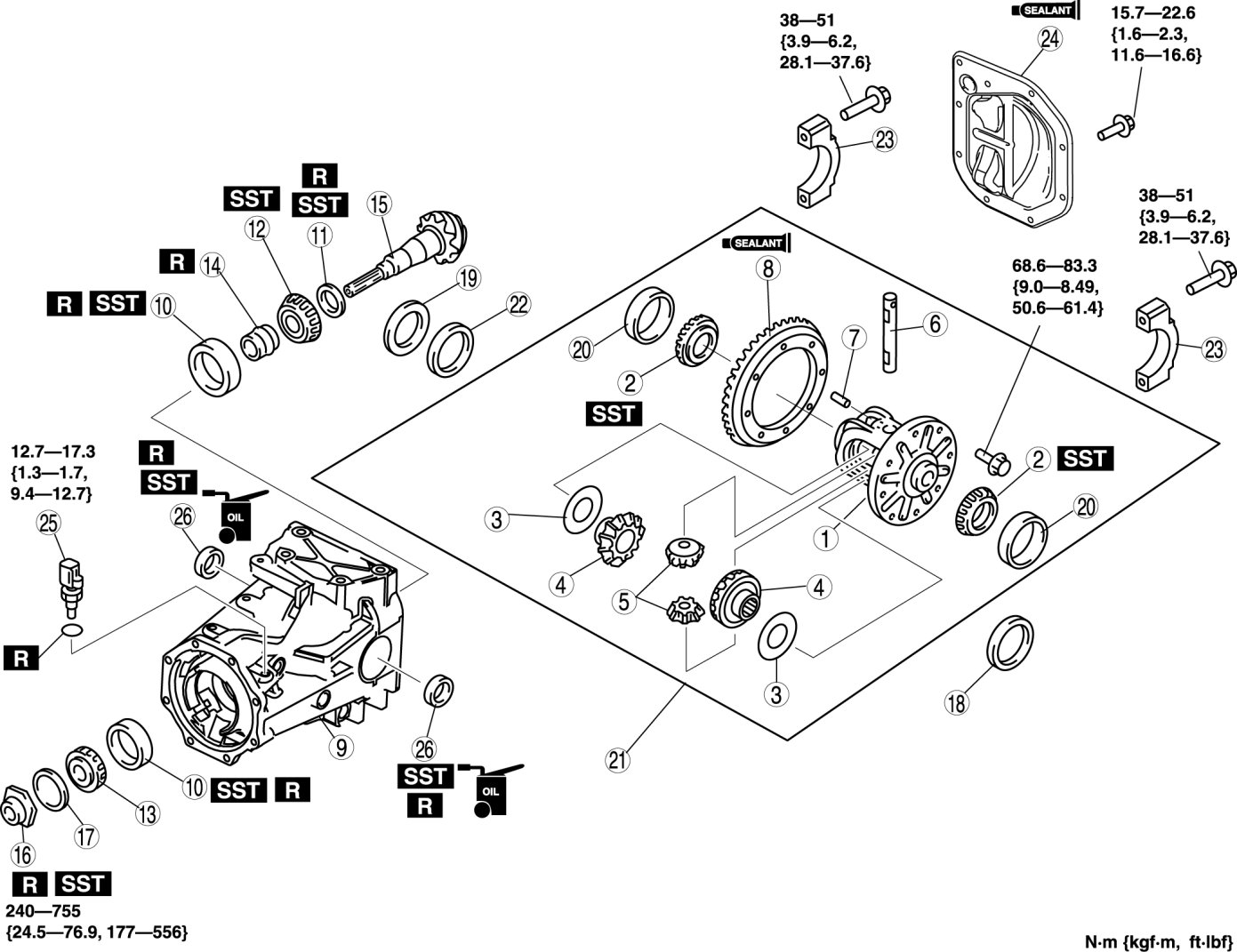

REAR DIFFERENTIAL DISASSEMBLY
REAR
DIFFERENTIAL ASSEMBLY
