Power and Ground Distribution
>>
Fuse
>>
Locations
>>

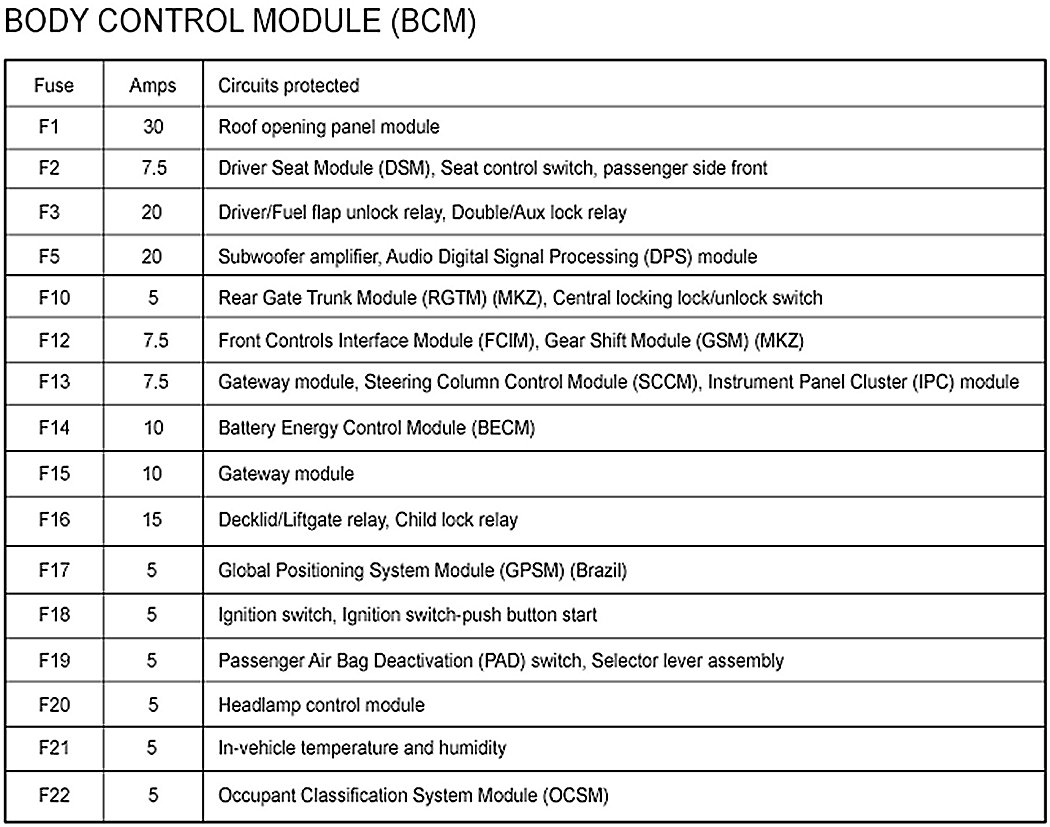

Body Control Module (BCM)

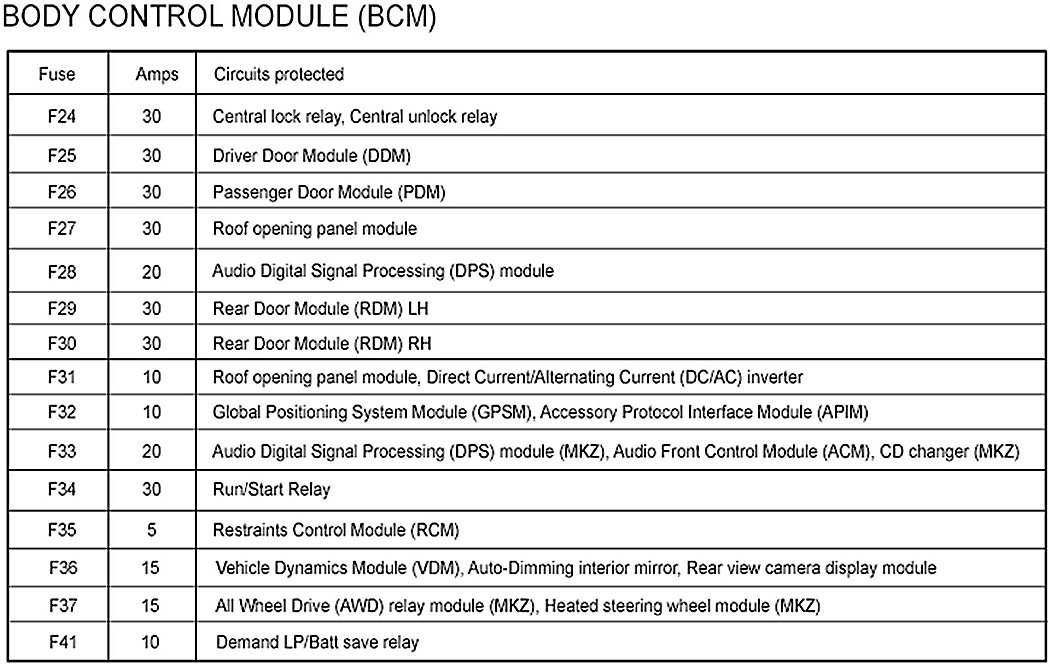

Body Control Module (BCM)

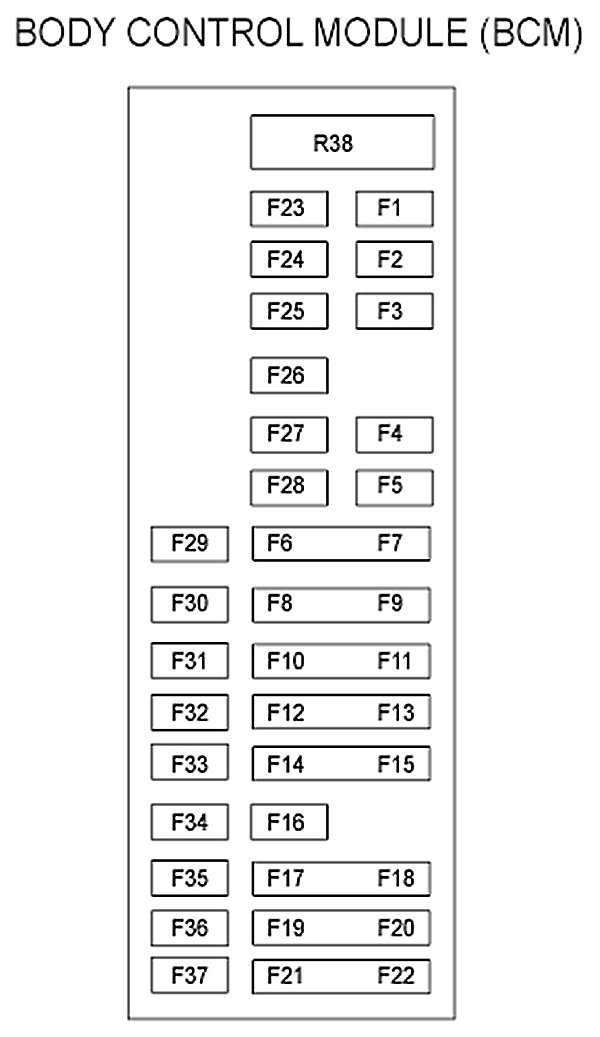

Body Control Module (BCM)
11-05:
11-06:
11-07:
