Power Distribution Box

Power Distribution Box

Power Distribution Box:

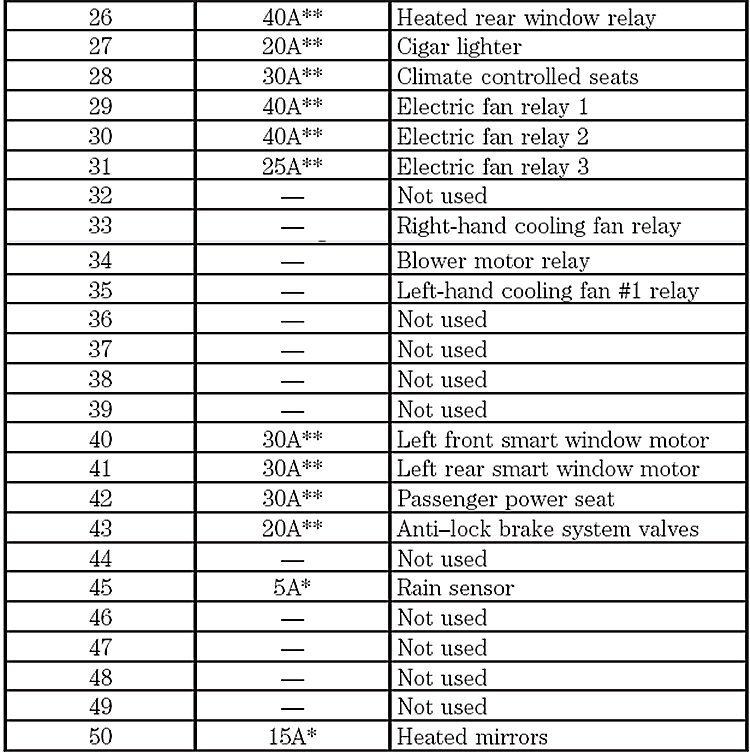

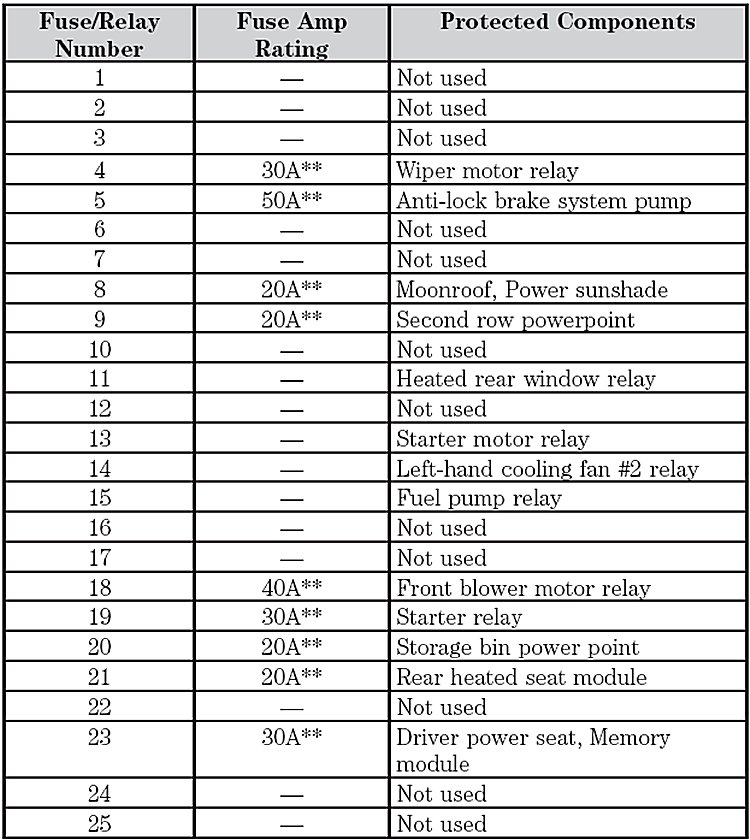

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle's main electrical systems from overloads. The high-current fuses are coded as follows:
