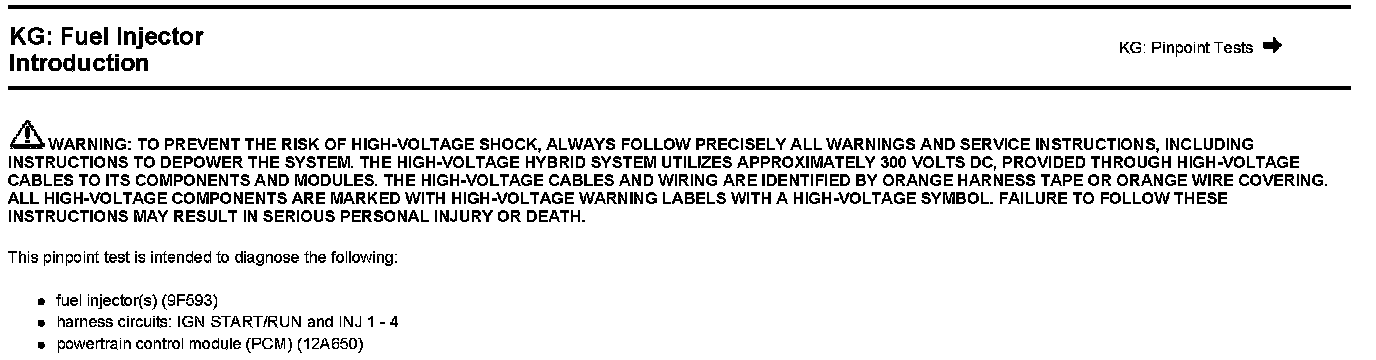

Test KG: Fuel Injector

KG: FUEL INJECTOR







Fuel Injector Connector

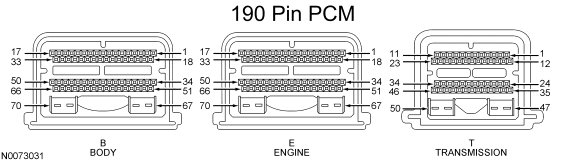

Powertrain Control Module (PCM) Connector
