Home >> Lincoln >> 2012 >> MKZ FWD L4-2.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> Test DM: Manifold Absolute Pressure (MAP) Sensor

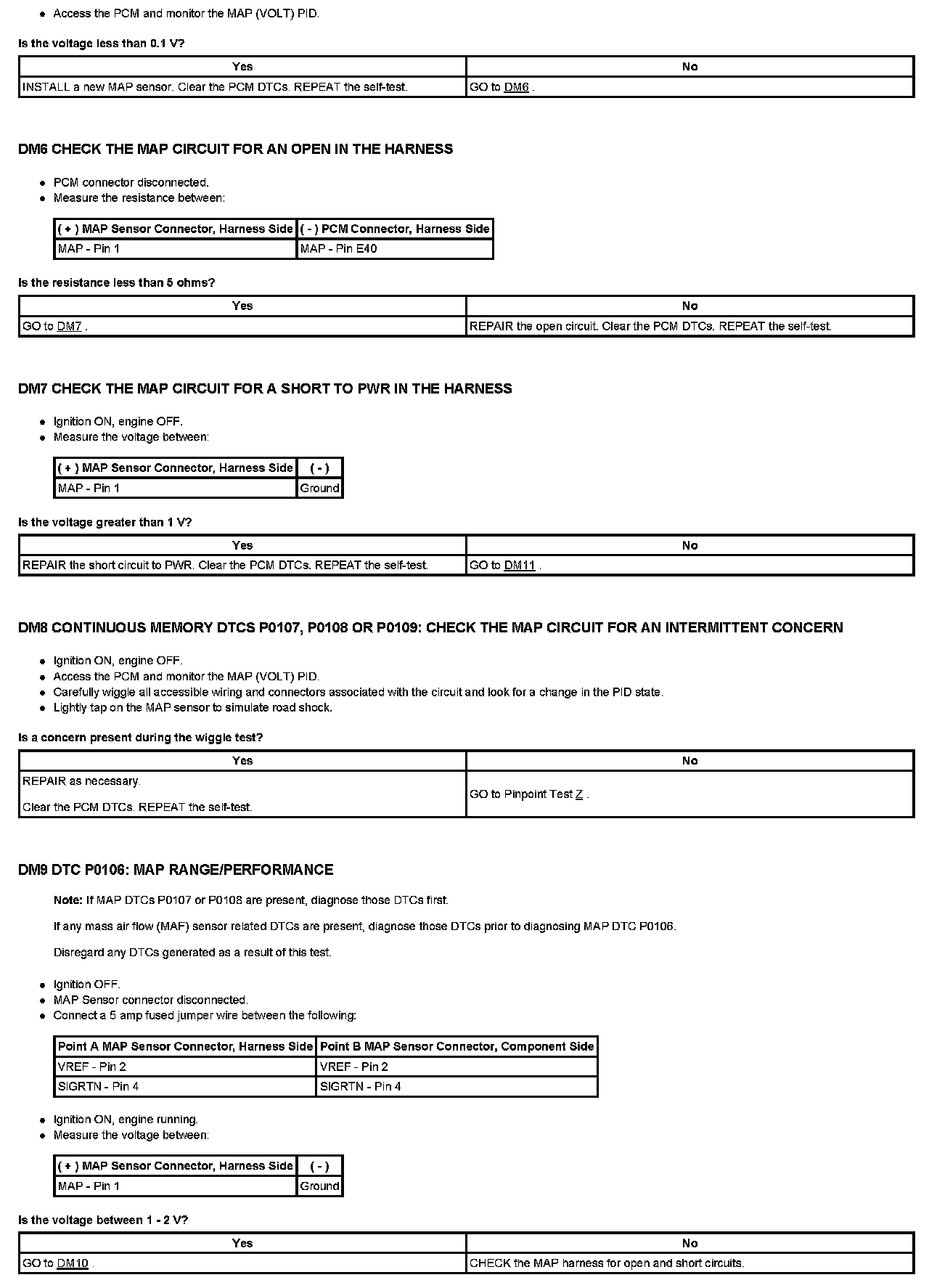

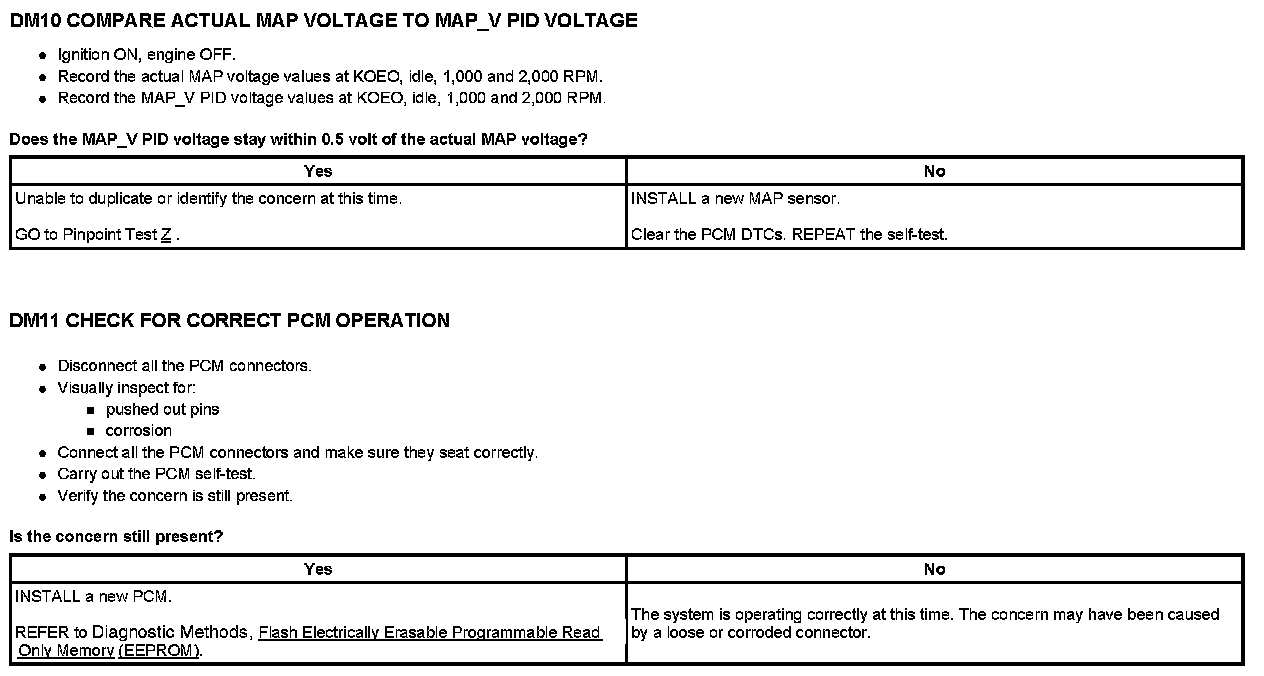

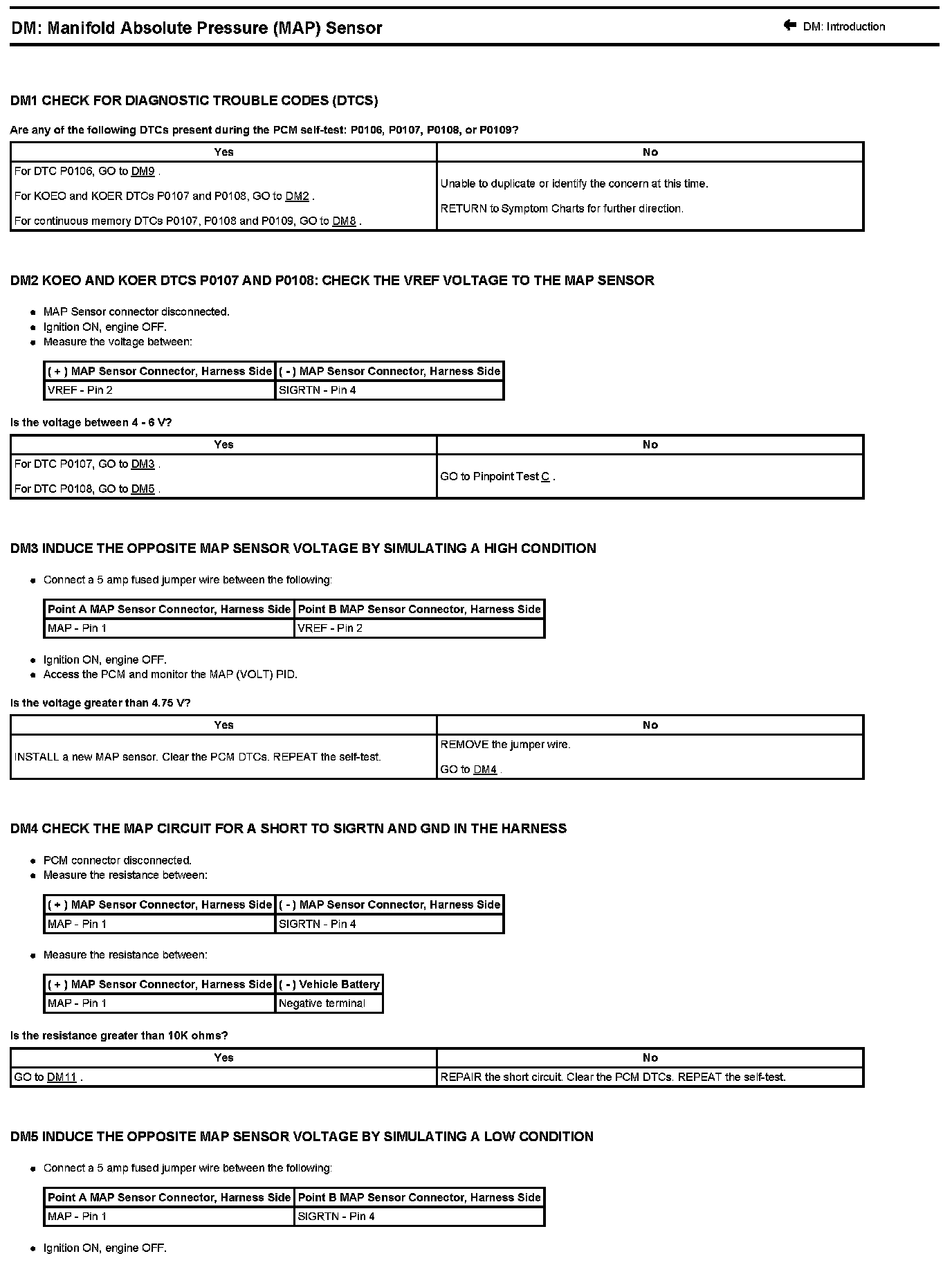

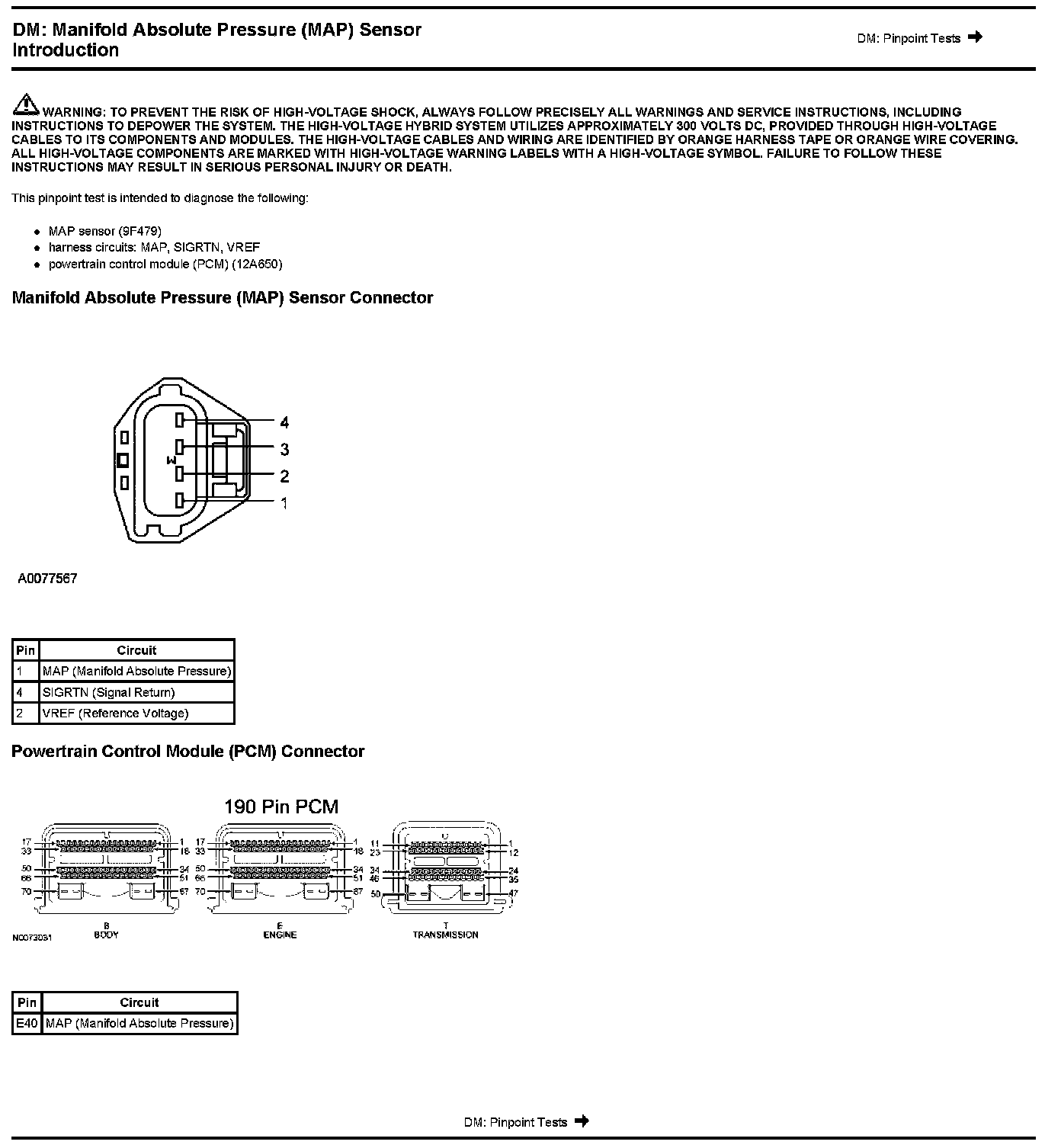

Test DM: Manifold Absolute Pressure (MAP) Sensor

DM: MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
