Home >> Lincoln >> 2012 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Diagrams >> C1315 Wheel Speed Sensor, Left Front

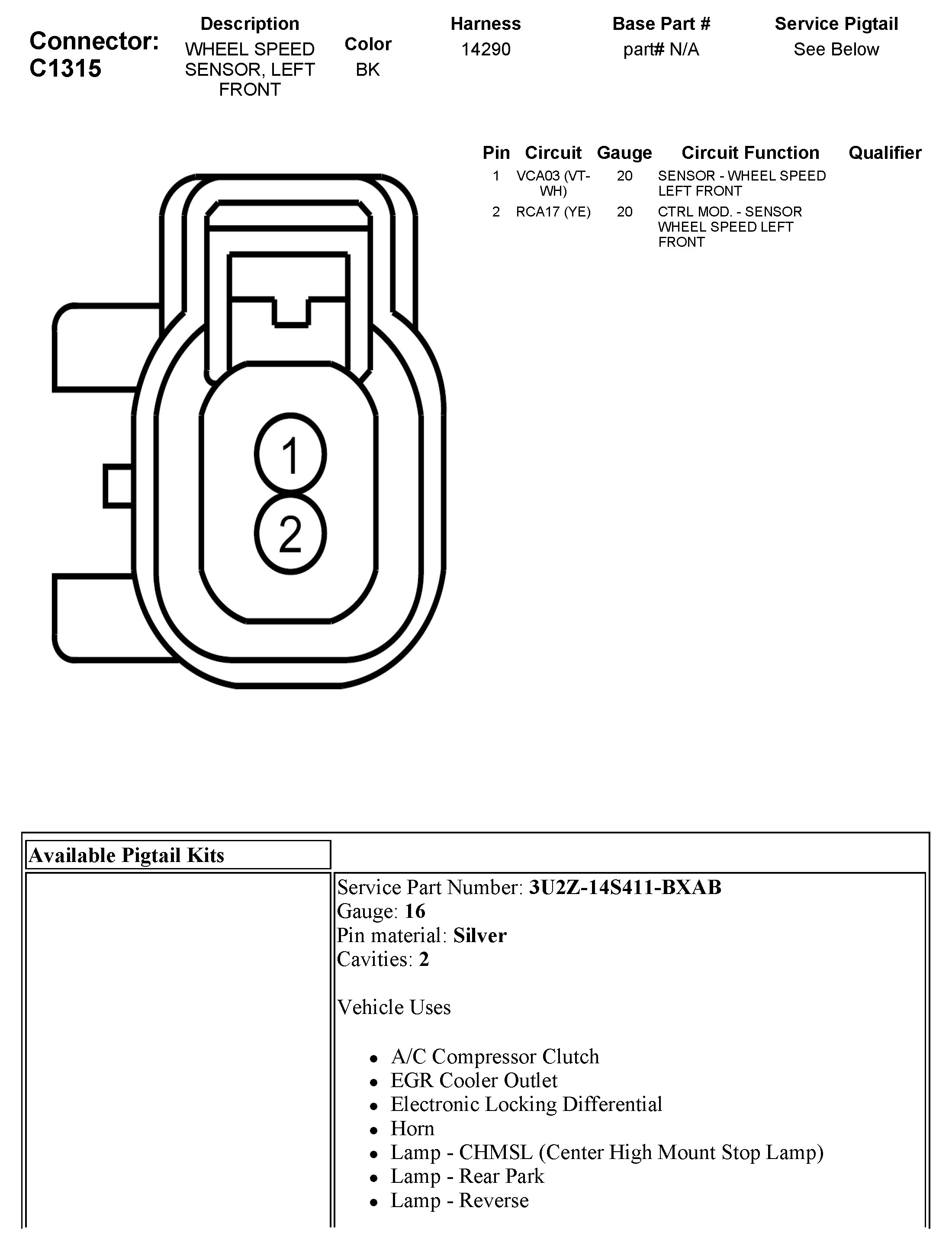

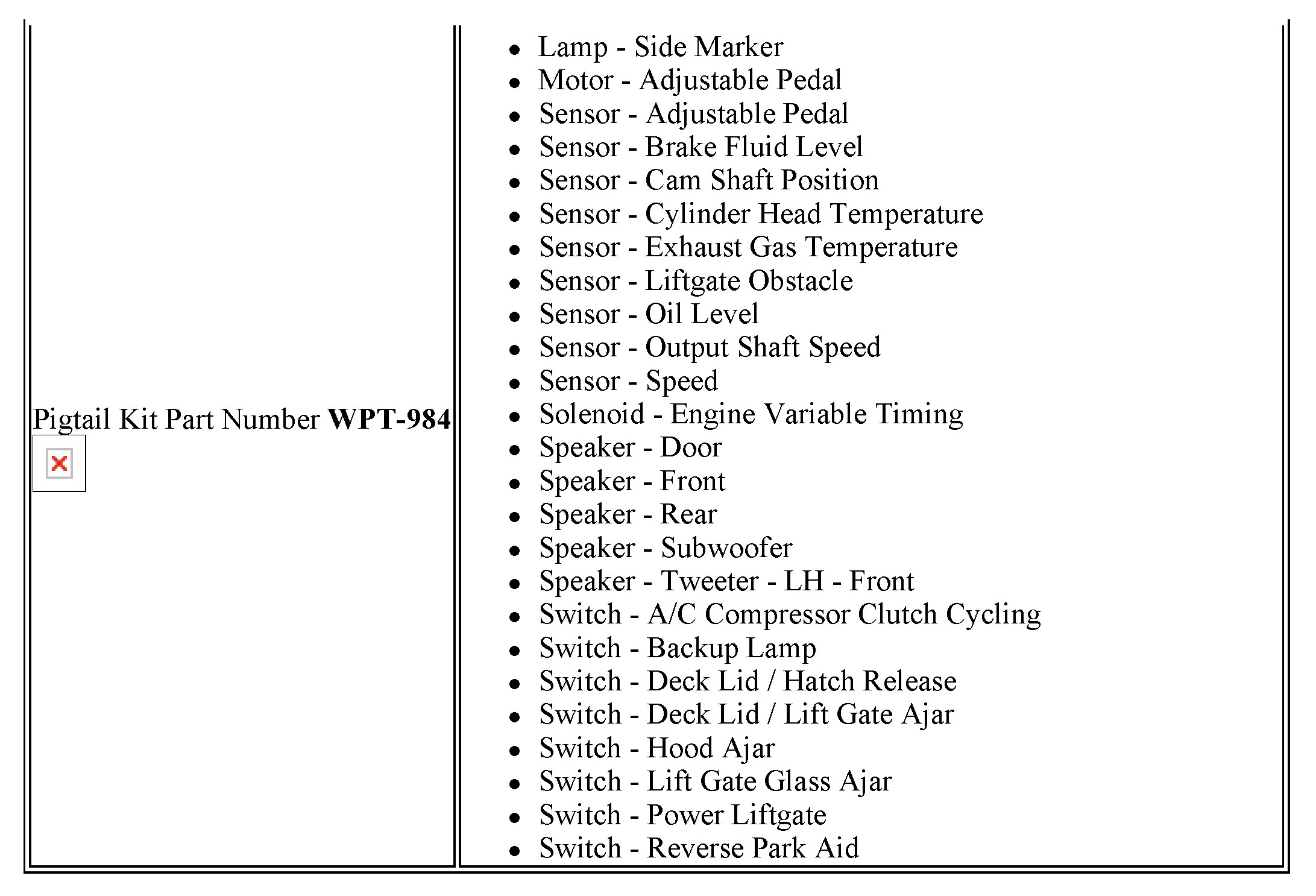

C1315 Wheel Speed Sensor, Left Front
