Home >> Lincoln >> 2012 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Parking Assist Distance Sensor >> Diagrams >> C1428 Parking Aid Sensor, Front, Outer Left

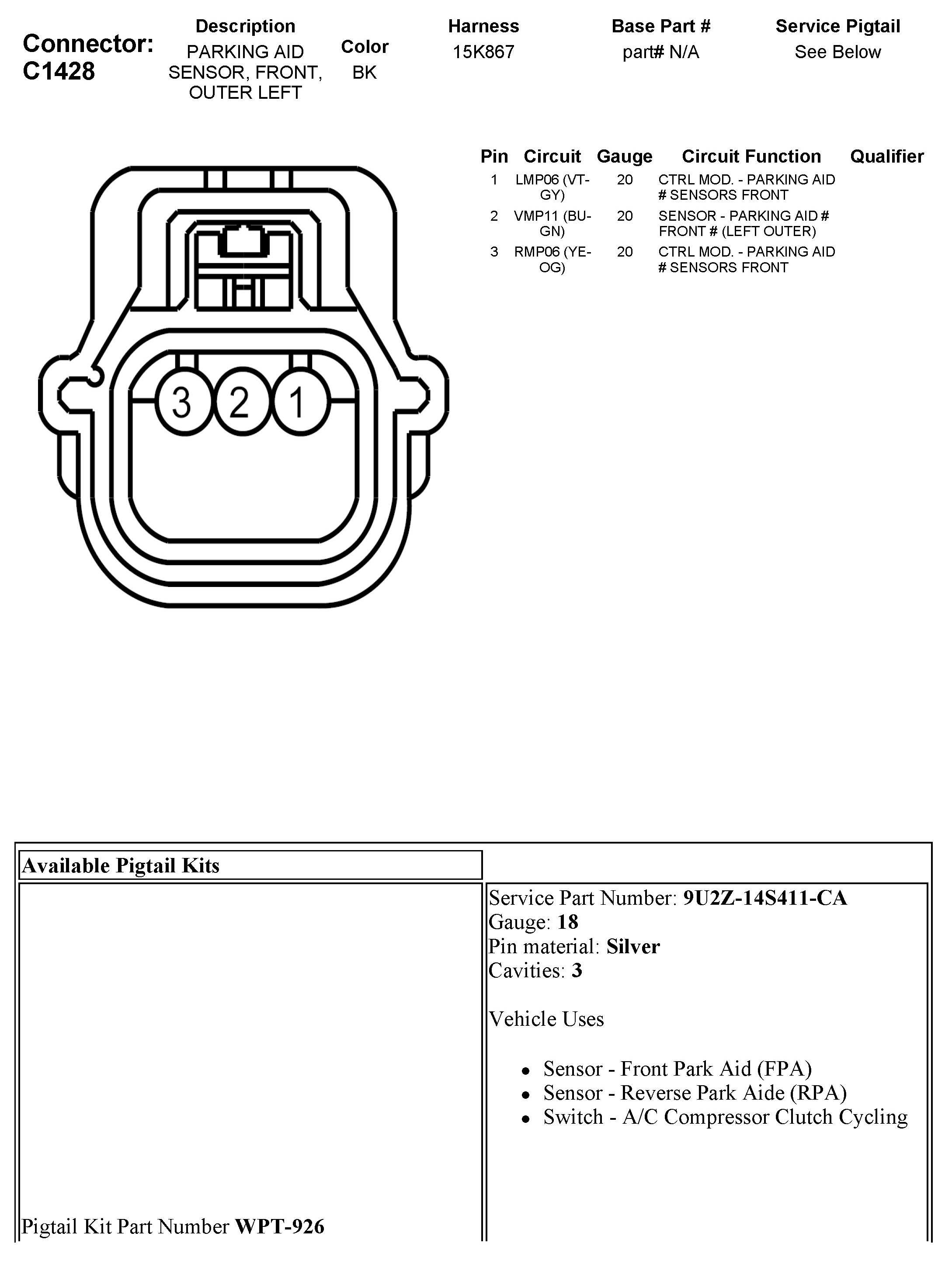

C1428 Parking Aid Sensor, Front, Outer Left
