Headliner: Service and Repair

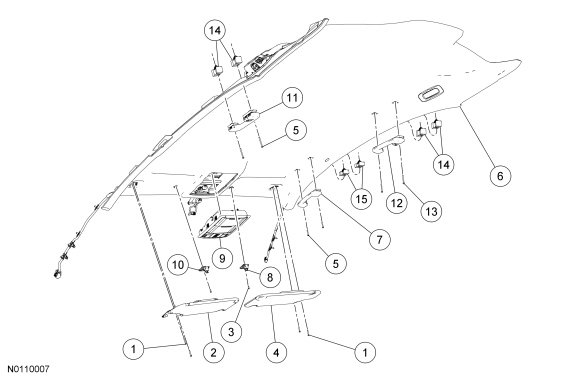

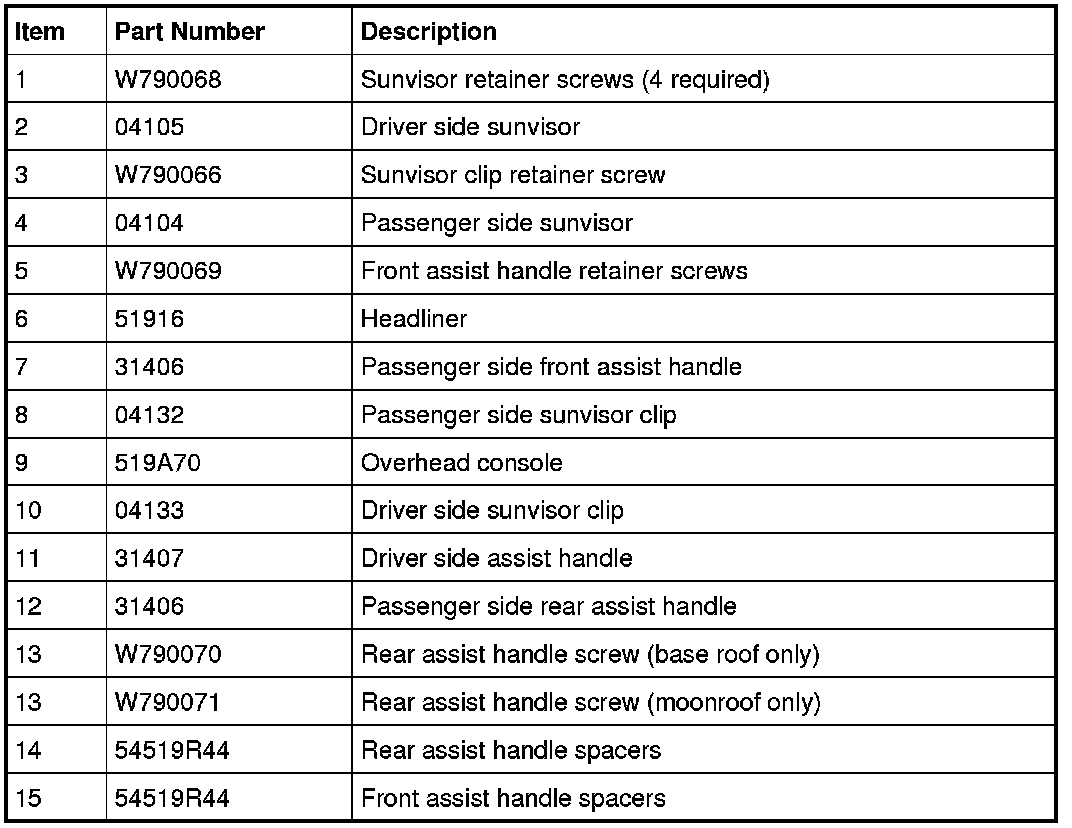

Headliner

NOTE: The moonroof version is equipped with magnets around the perimeter of the roof opening panel openings that retain the headliner to the roof.









Removal and Installation

1. Pull down on the back of the headliner in the indicated positions to release the hidden fasteners from the body.





2. Remove the driver seat.

3. Remove the passenger seat.

4. Remove the rear seat.

5. Remove the floor console.

6. NOTE: The A-pillar trim panel is one-time use only.

Remove the A-pillar trim panels. For additional information, refer to A-Pillar Trim Panel A-Pillar Trim Panel.

7. Remove the B-pillar trim panels. For additional information, refer to B-Pillar Trim Panel B-Pillar Trim Panel.

8. Remove the lower C-pillar trim panel. For additional information, refer to C-Pillar Trim Panel- Lower C-Pillar Trim Panel - Lower.

9. Remove the quarter trim panels. For additional information, refer to C-Pillar Trim Panel- Upper C-Pillar Trim Panel - Upper.

10. Remove the sunvisor clip retainer screw and remove the sunvisor clip.





11. Remove the sunvisors.
- Remove the sunvisor retainer screws.

- Disconnect the electrical connectors.






12. If equipped, remove the rain sensor cover and disconnect the electrical connectors.

13. Disconnect the mirror electrical connector.





14. NOTE: RH side shown. LH side similar.
Disconnect the A-pillar electrical connector, 4 pushpins and roof opening panel drain hose (if equipped).






15. Remove the overhead console.

16. If equipped, disconnect the moonroof electrical connectors.





17. NOTE: Note the orientation of the assist handles to make sure they are installed correctly.
Open the assist handle retainer screw covers.






18. NOTICE: The assist handle spacers must be reinstalled prior to installation. Failure to follow this direction may result in damage to the headliner.

NOTE: The large assist handle spacers are for the rear assist handles and the small assist handle spacers are for the front.

NOTE: The smooth side of the assist handle spacer faces the headliner and the notch side faces the roof with the notch connecting into the sheet metal bar on the roof.
Remove the assist handle retainer screws and remove the assist handles.






NOTICE: The following steps must be completed with an assistant. Failure to follow this direction may result in damage to the headliner.

19. If equipped with a moonroof, simultaneously pull downward on the rear corners of the front roof opening panel opening and the front corners of the rear roof opening panel opening to release the magnets from the roof.





20. Position the headliner all the way rearward.





21. Lower the front of the headliner to floor and position all the way forward.





22. Rotate the headliner until partially out of the RH front door.





23. Position the headliner to be removed out of the longest angle of the driver side rear door.





24. NOTICE: Make sure to roll the edges of the headliner while removing. Failure to follow this direction may result in damage to the headliner.

Remove the headliner from the vehicle.


25. NOTE: Obtain the 3M Duramix 4747 Super Fast Adhesive commercially. The 3M Duramix 4747 Super Fast Adhesive is a 2-part adhesive in a 50-ml dual-tube applicator. Depending on the size of the headliner and optional wire harness(es), the purchase of two to five 50-ml tubes is suggested.
If installing a NEW headliner, transfer the wire harness in the following sequence:

1. Using a suitable marking tool, mark the new headliner with the routing and exit points of the wire harness from the original headliner.

2. Carefully remove the wire harness from the original headliner.

3. NOTICE: Make sure not to damage the wire harness when cutting the excess adhesive from the wire harness.

Cut and remove any excess adhesive from the wire harness.

4. Position the wire harness onto the new headliner and check that the harness has enough length to be connected to the body/roof connectors. Apply tape to temporarily hold the wire harness in that position on the headliner.

5. NOTE: The 3M Duramix 4747 Super Fast Adhesive will set in 20 seconds. Continually make sure that the wire harness is routed correctly when applying the adhesive.
Apply the 3M Duramix 4747 Super Fast Adhesive in the same location as the factory installed adhesive along the full length of the wire harness-to-headliner to avoid any NVH concern(s).

6. Transfer all necessary components.


26. To install, reverse the removal procedure.
