Hood Latch Release: Service and Repair

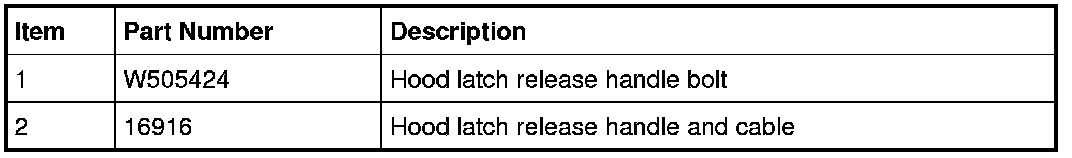

Hood Latch Release Handle

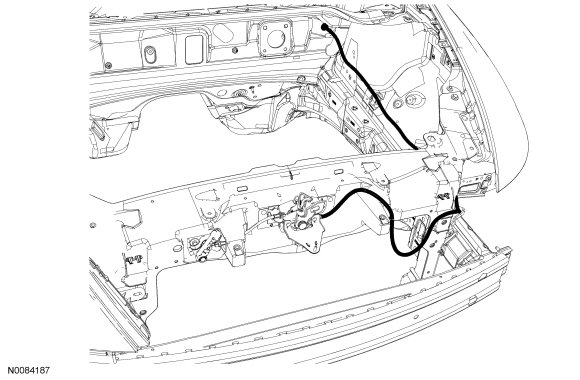

Hood Latch Release Cable Routing





Removal and Installation

1. Remove the LH headlamp.

2. Remove the hood latch. For additional information, refer to Hood Latch Service and Repair.

3. Remove the battery tray.

4. Release the hood latch release cable routing clips.

5. Remove the Smart Junction Box (SJB).

6. Remove the hood latch release handle bolt.
- To install, tighten to 2 Nm (18 lb-in).


7. Remove the hood latch release cable.

8. To install, reverse the removal procedure.
