Home >> Lincoln >> 2012 >> MKS AWD V6-3.5L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> C2403 Front Control Interface Module (FCIM)

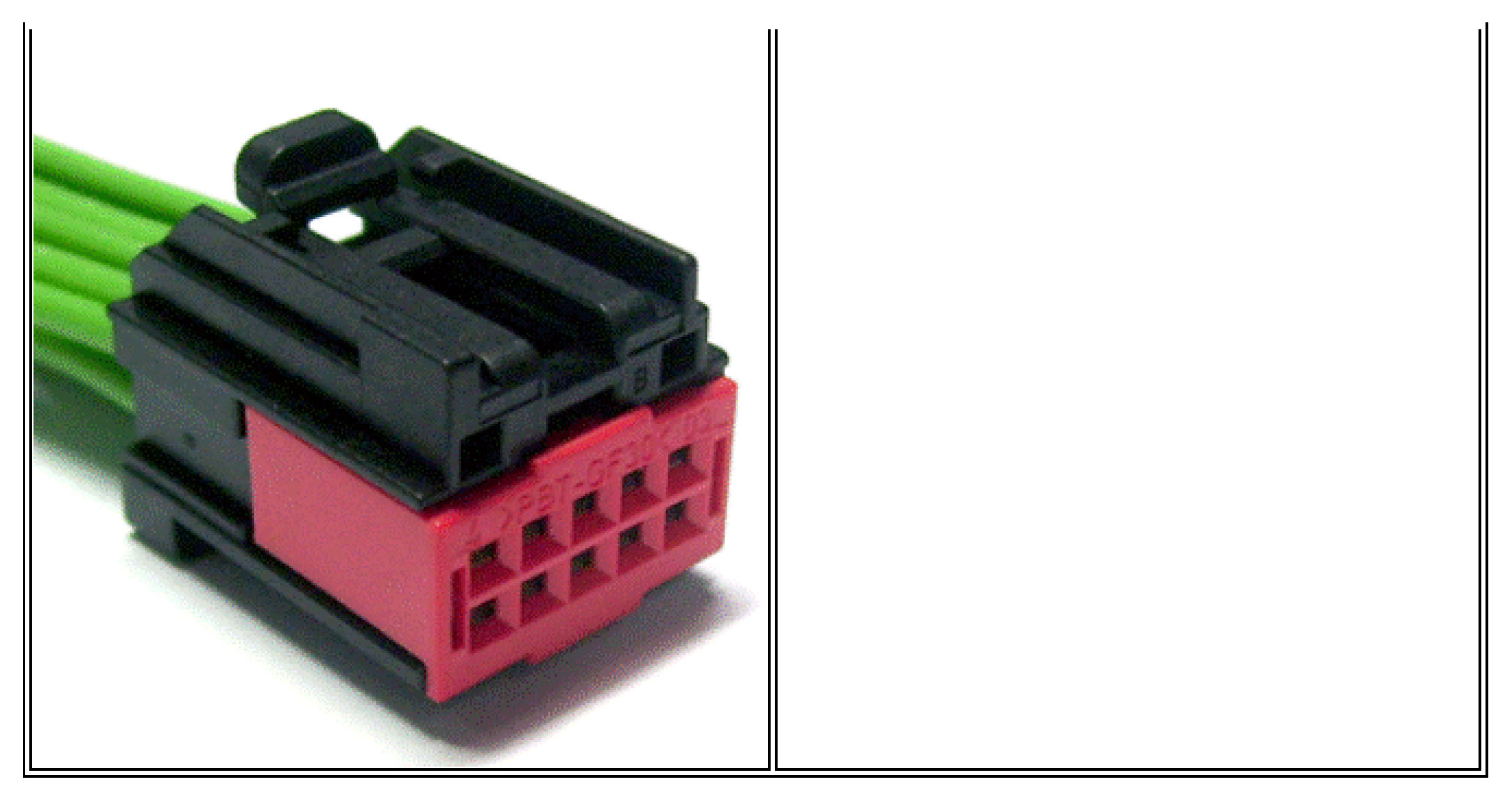

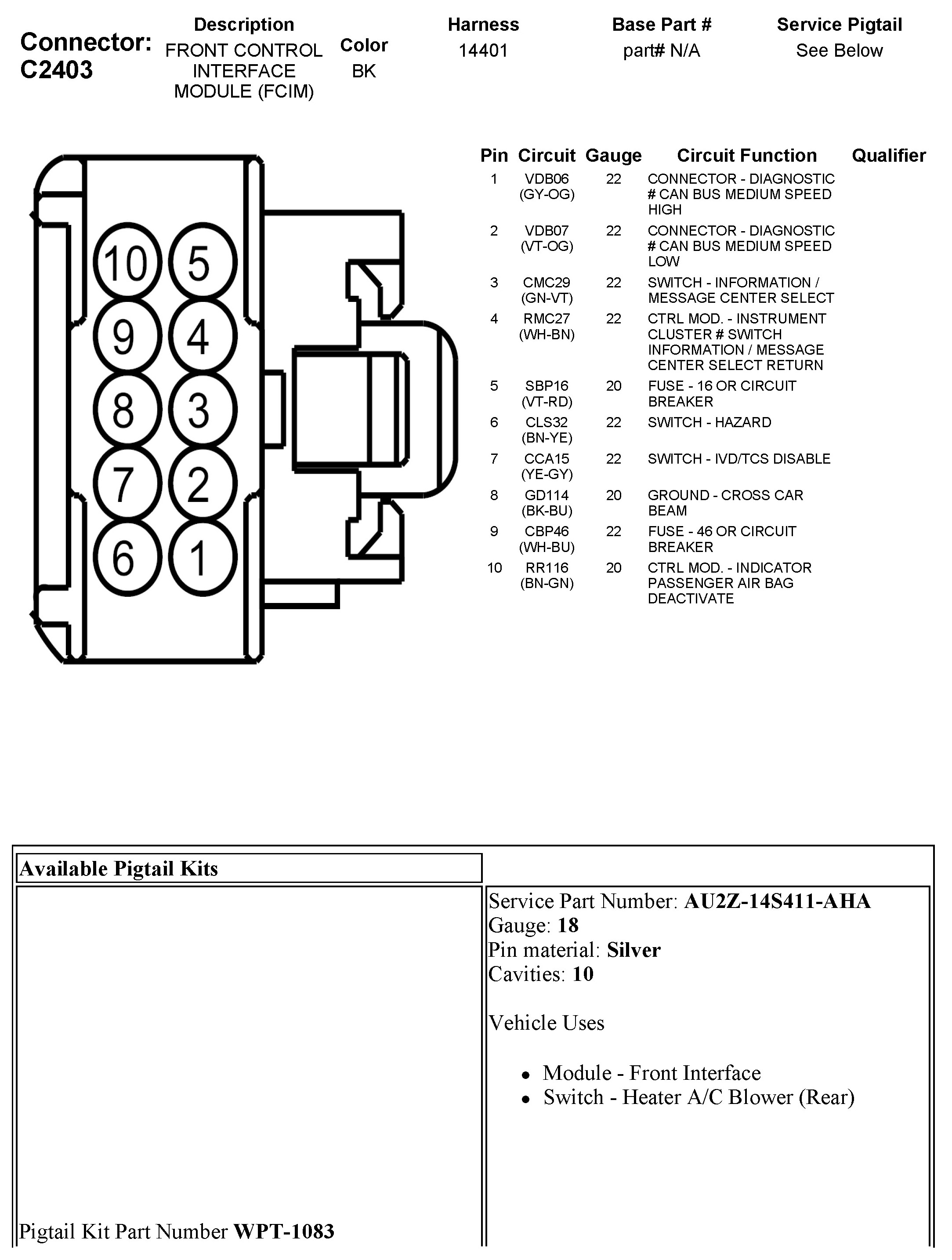

C2403 Front Control Interface Module (FCIM)
