Home >> Lincoln >> 2012 >> MKS AWD V6-3.5L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Control Module >> C1600 Headlamp Control Module (HCM)

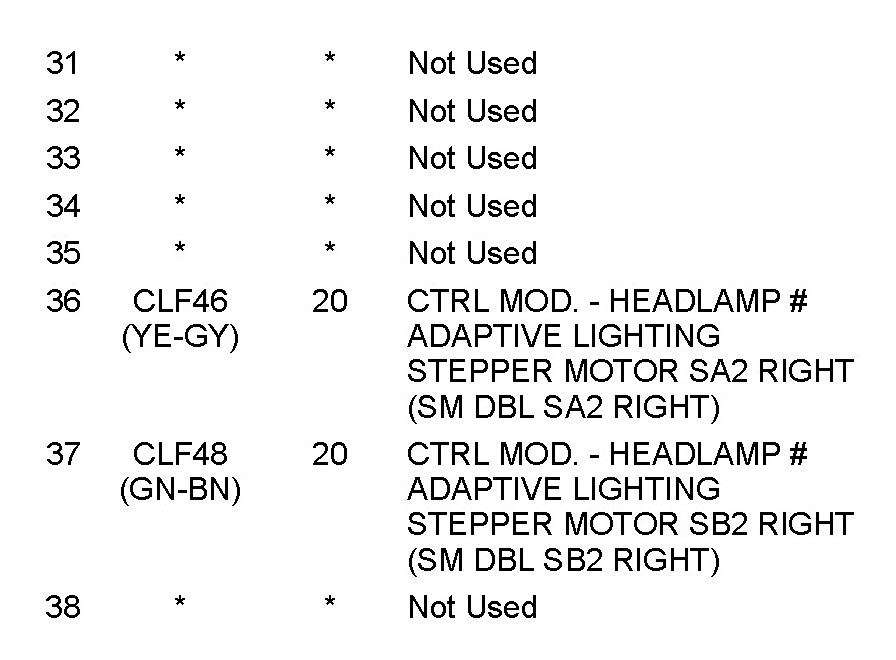

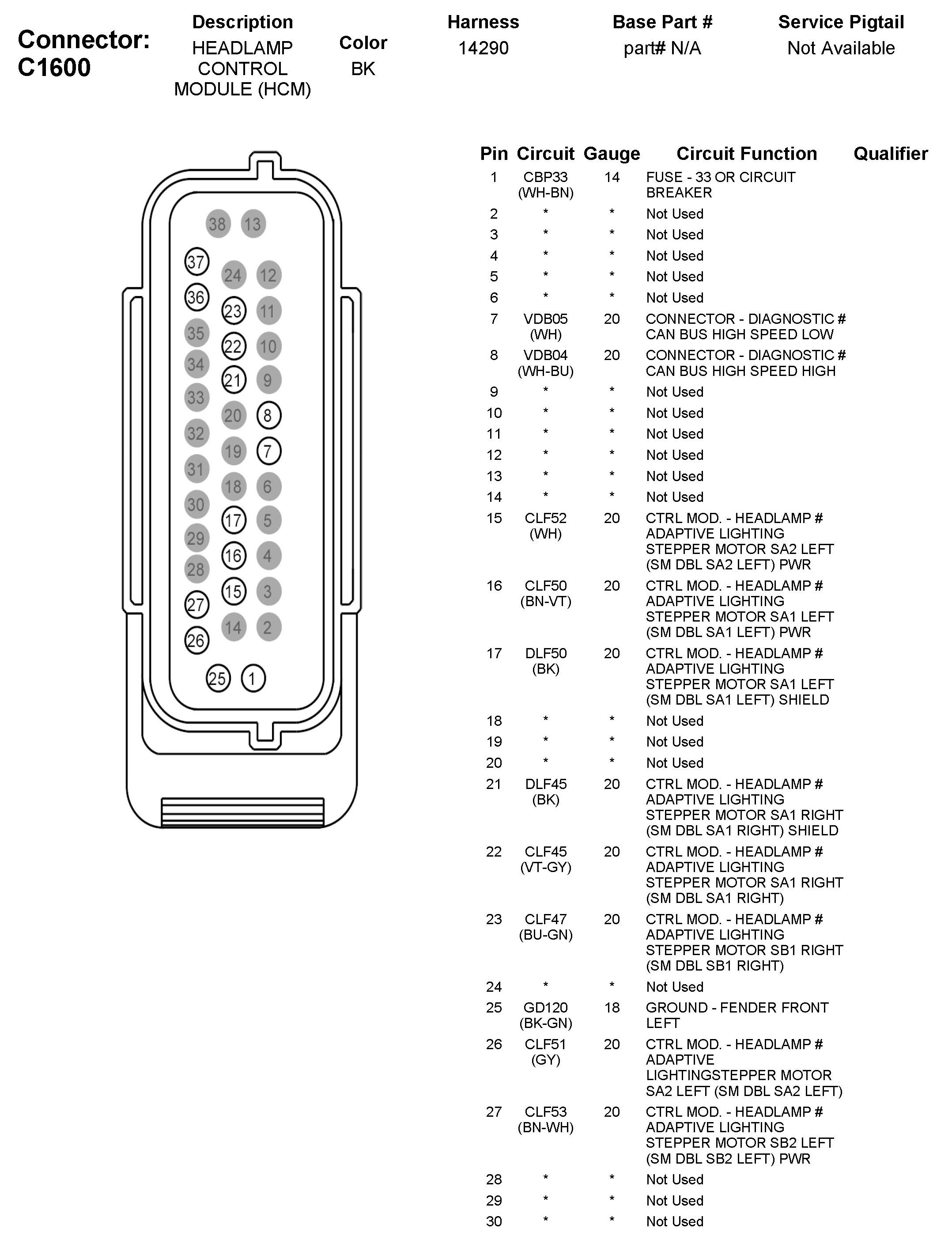

C1600 Headlamp Control Module (HCM)
