Exterior Trim - Exploded View




Exterior Trim - Exploded View

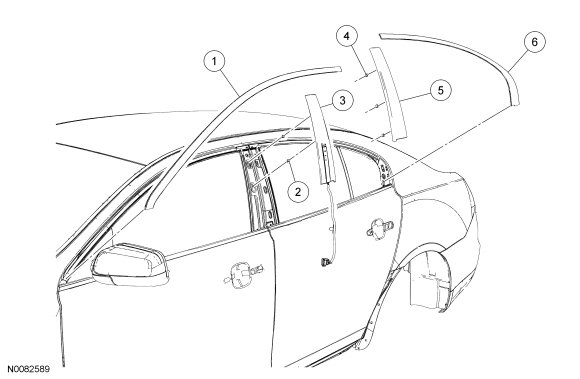

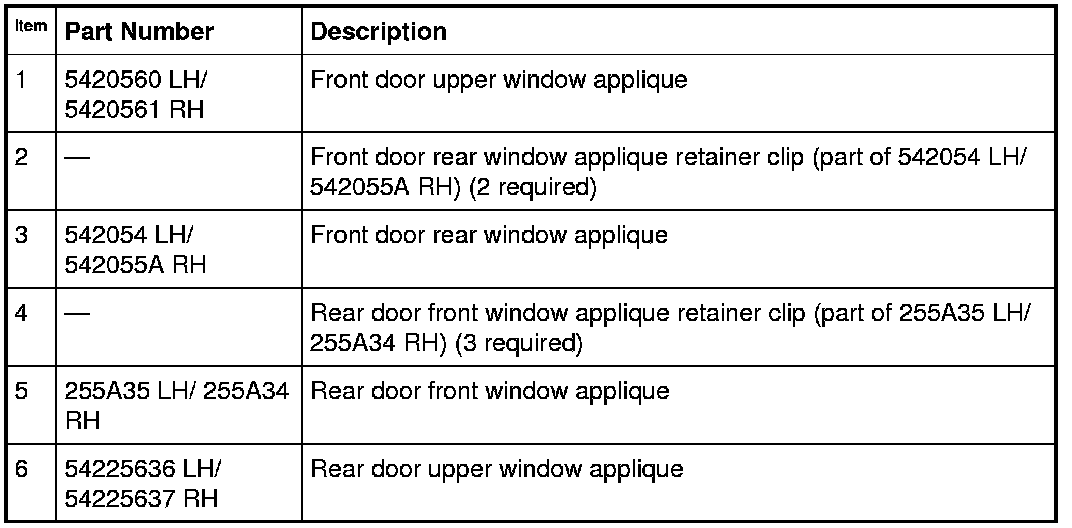

Upper Trim

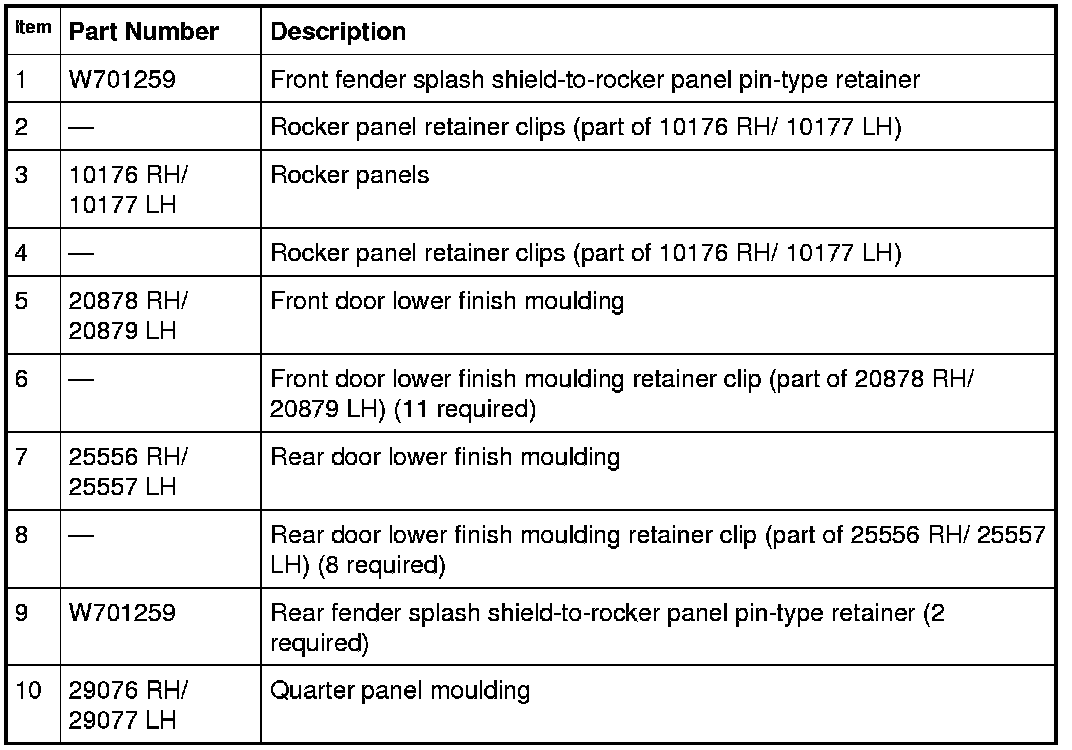

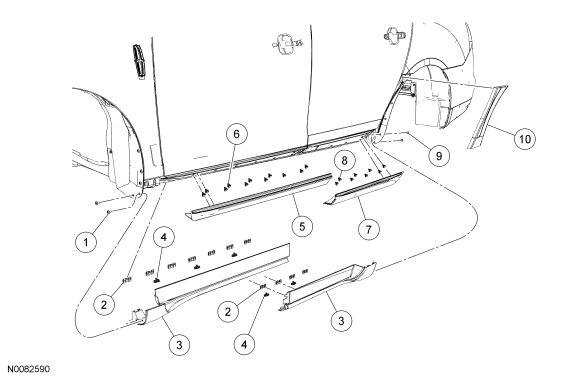

Lower Trim

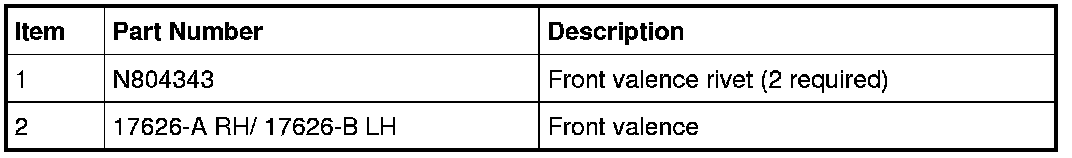

Front End Trim - Base

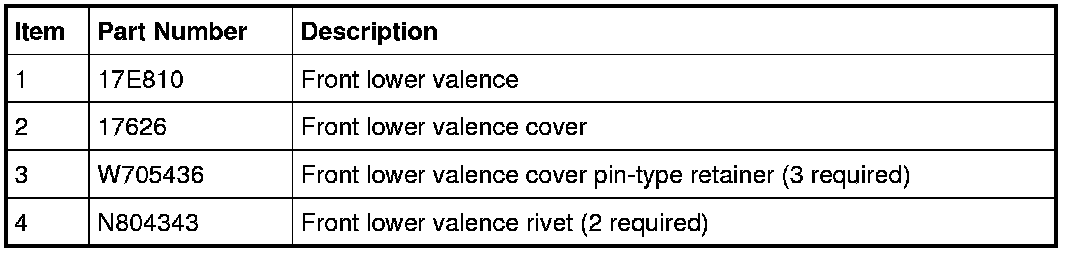

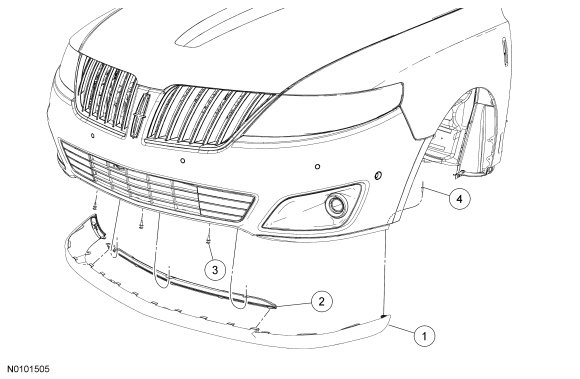

Front End Trim - Ecoboost

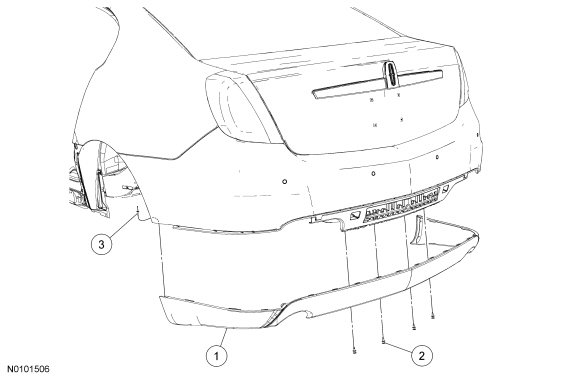

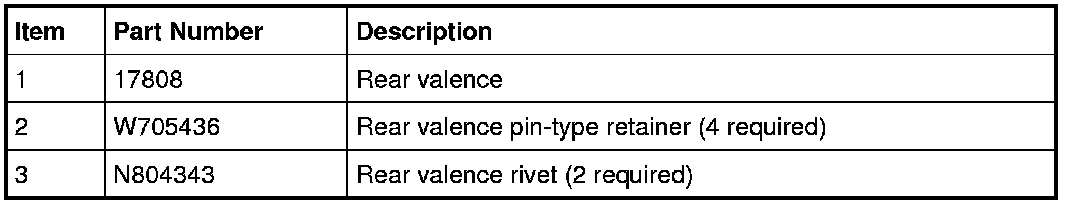

Rear End Trim - Base

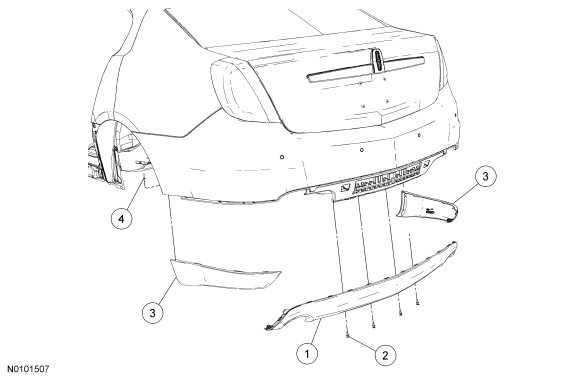

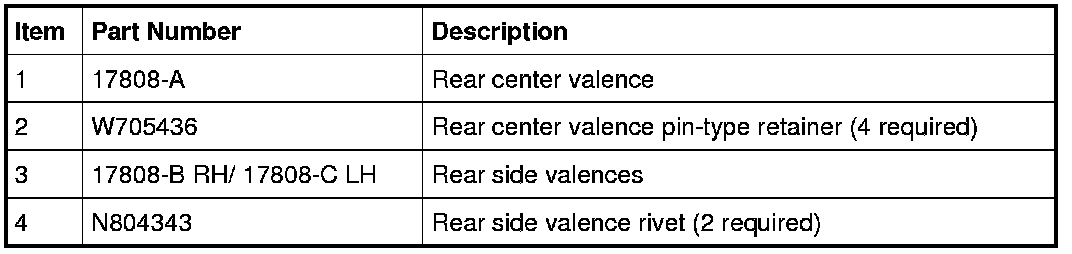

Rear End Trim - Ecoboost
