Steering Column Shroud

Steering Column Shroud









Removal and Installation

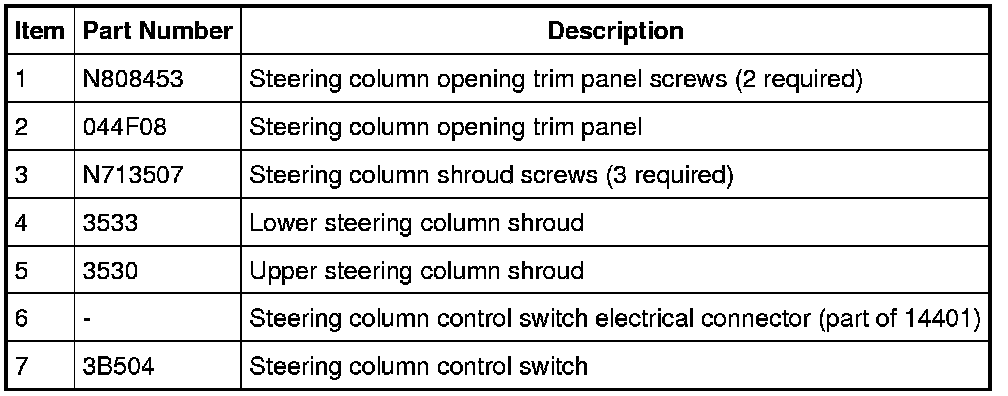

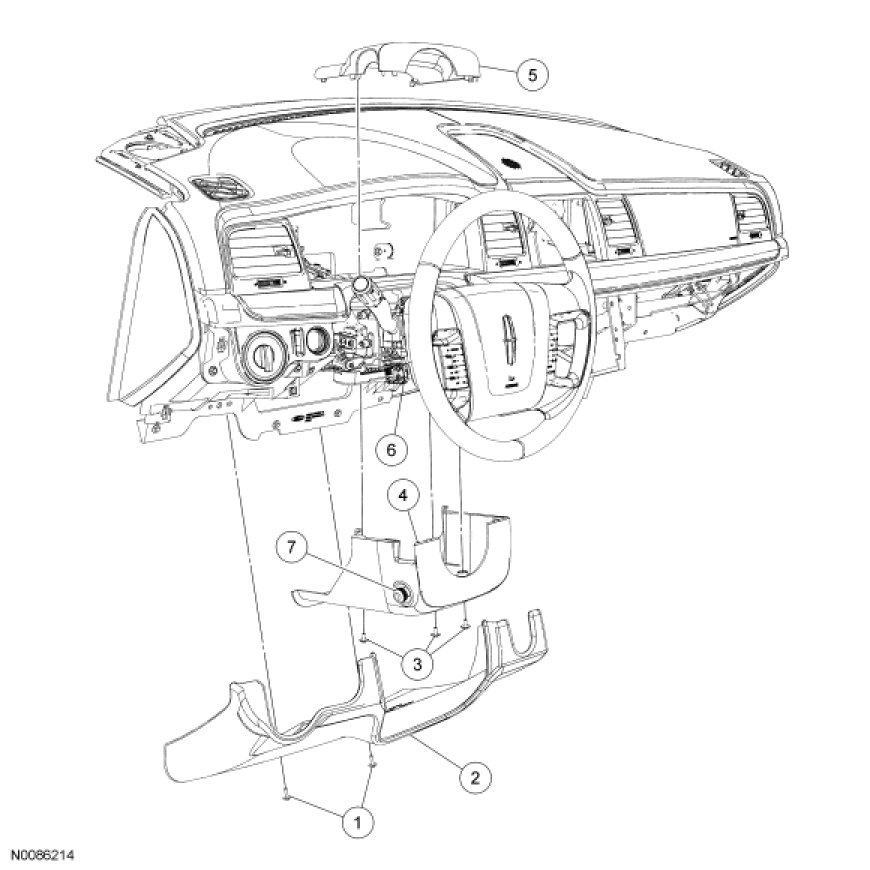

1. Remove the steering column opening trim panel. For additional information, refer to the Instrument Panel - Exploded View in Instrument Panel and Console Instrument Panel - Exploded View.

2. Remove the 3 screws and separate the lower from the upper steering column shroud.

3. Disconnect the steering column control switch electrical connector and remove the steering column shrouds.

4. To install, reverse the removal procedure.
