Suspension System - General Information

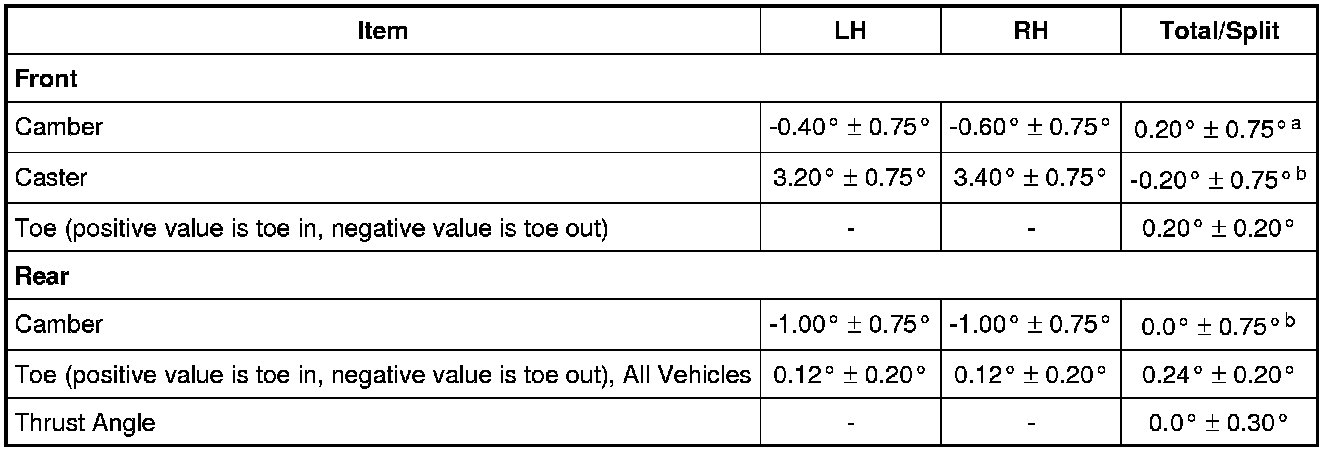

Alignment Specifications





a Camber Total/Split = LH Camber - RH Camber
b Caster Total/Split = LH Caster - RH Caster

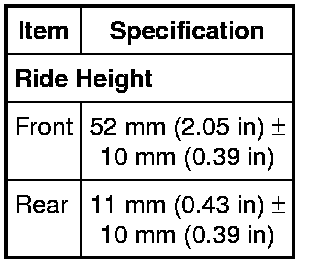

General Specifications

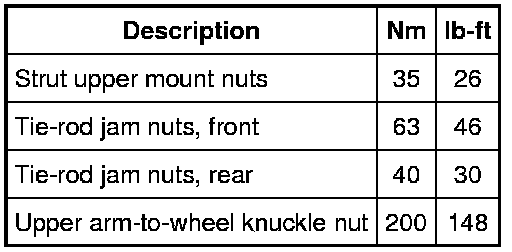

Torque Specifications
