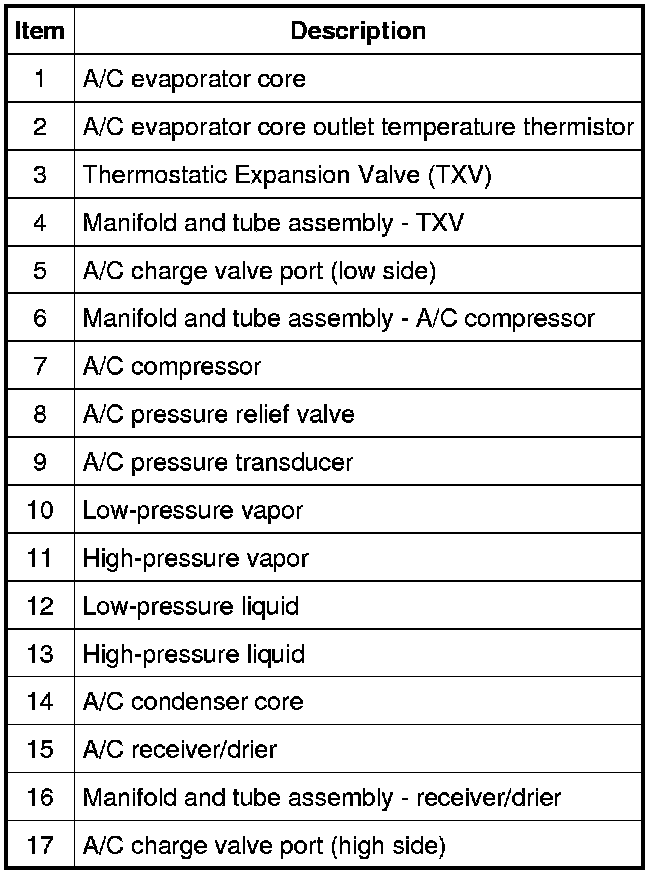

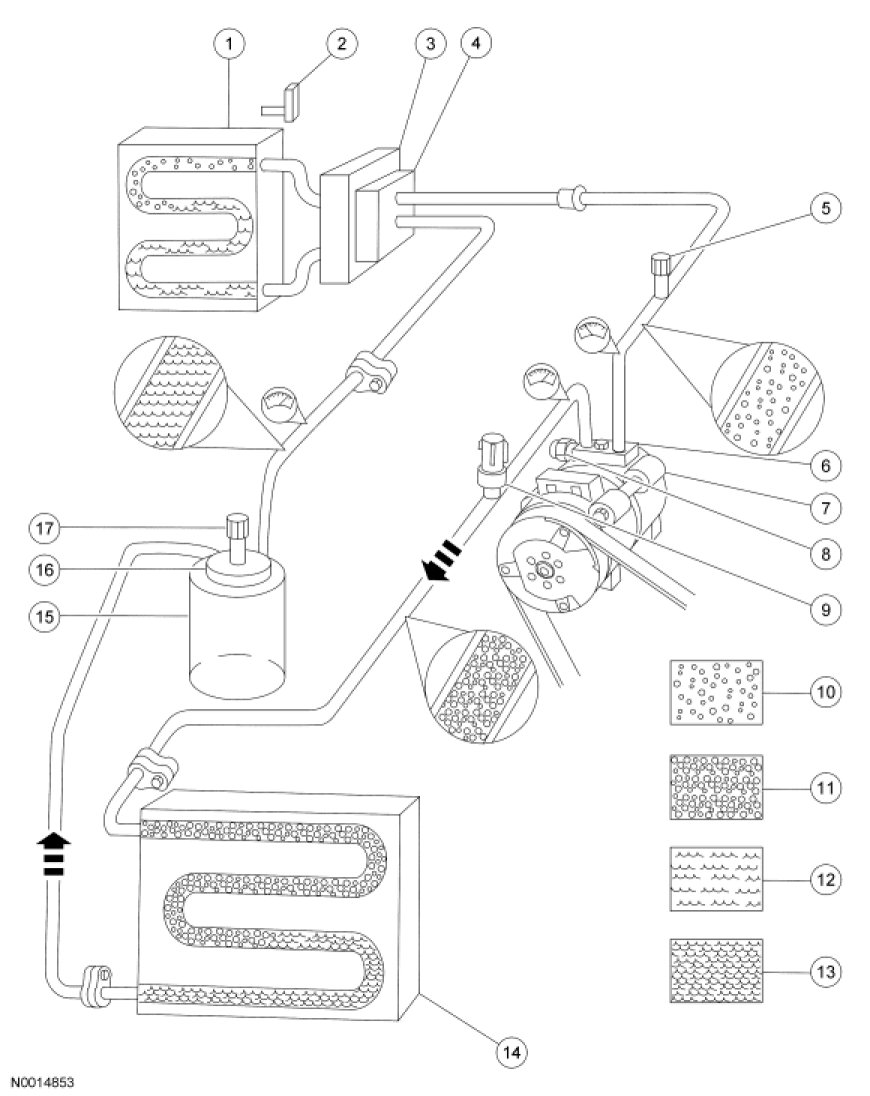

Thermostatic Expansion Valve (TXV) Type Refrigerant System
Thermostatic Expansion Valve (TXV) Type Refrigerant System
Climate Control System
Thermostatic Expansion Valve (TXV) Type
Refrigerant
System
