Home >> Lincoln >> 2011 >> MKS AWD V6-3.5L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Valve Body, A/T

Valve Body, A/T

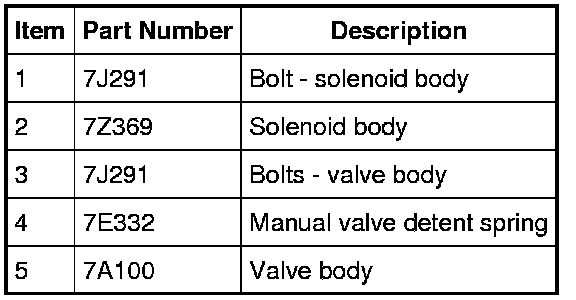

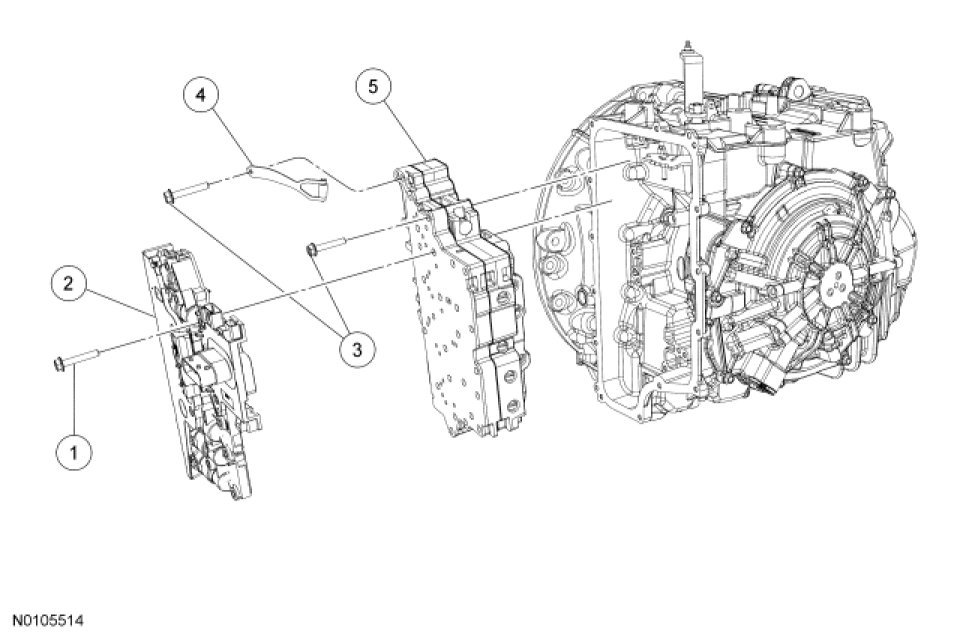

Main Control Valve Body





Valve Body





Lower Valve Body














Main Control Valve Body
