Trough Assembly

Trough Assembly

Removal and Installation

NOTE: The roof opening panel motor(s) must be initialized when repairs are carried out on any part of the roof opening panel system, including: whenever the roof opening panel sliding glass motor or power shade motor has been removed from the roof opening panel system, the roof opening panel glass has been removed from the roof opening panel system, the roof opening panel assembly has been removed from the vehicle, a new roof opening panel motor has been installed, a new roof opening panel glass has been installed or a new roof opening panel assembly has been installed. For additional information, refer to Roof Opening Panel Motor Initialization Programming and Relearning.

1. Remove the front sliding glass panel. For additional information, refer to Roof Opening Panel Glass - Front Sliding Roof Opening Panel Glass - Front Sliding.

2. NOTE: Note the spring orientation during removal. If installing a new drain trough, the spring will need to be transferred to the new drain trough and placed in the same position during installation.

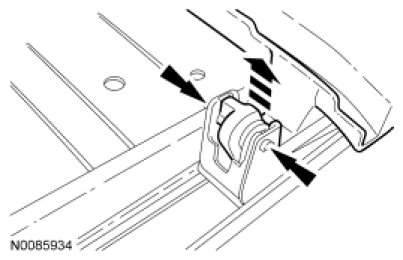

Carefully spread the tabs outward while lifting the trough assembly straight up through the slots in the tabs as shown.

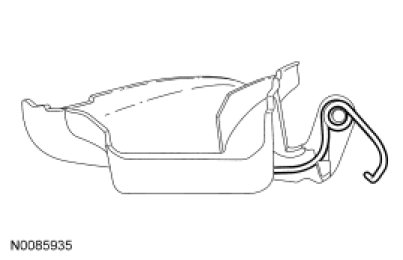

3. NOTE: Make sure that the springs are installed as shown before installation of the drain trough.

To install, reverse the removal procedure.

- Check for correct alignment of the front sliding glass panel. For additional information, refer to Roof Opening Panel Alignment Adjustments.

- Initialize the front sliding glass panel motor. For additional information, refer to Roof Opening Panel Motor Initialization Programming and Relearning.
