Home >> Lincoln >> 2010 >> MKS AWD V6-3.5L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Power Distribution Box

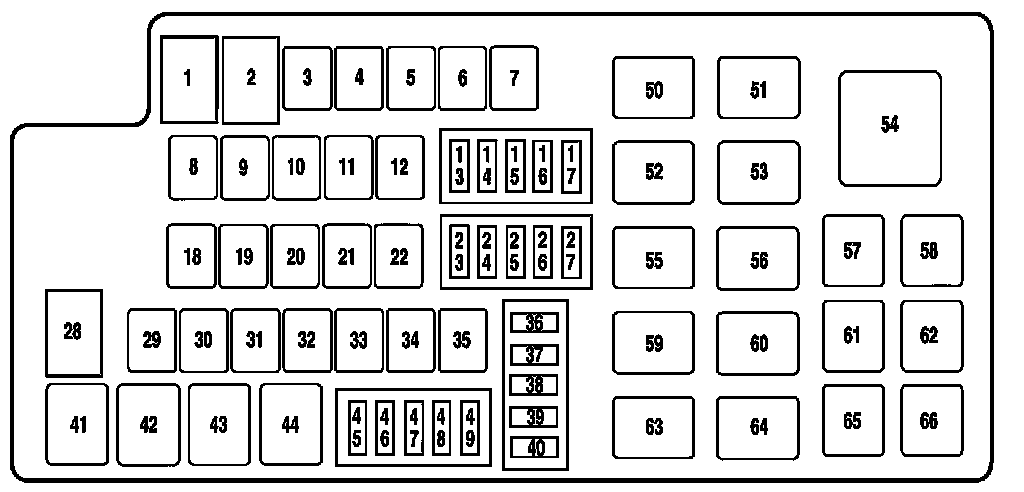

Power Distribution Box

























Note: The Power Distribution Box is located in the engine compartment.
