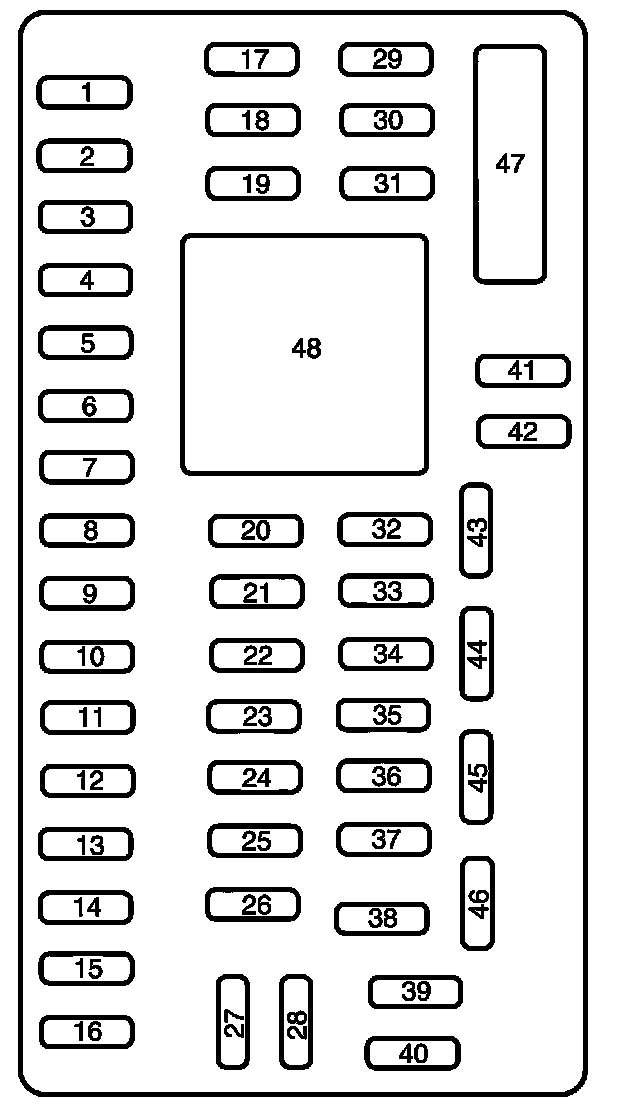

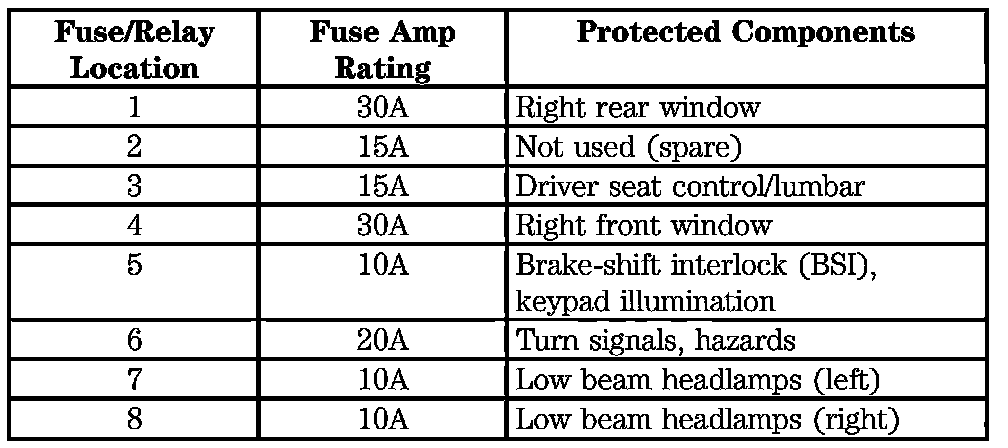

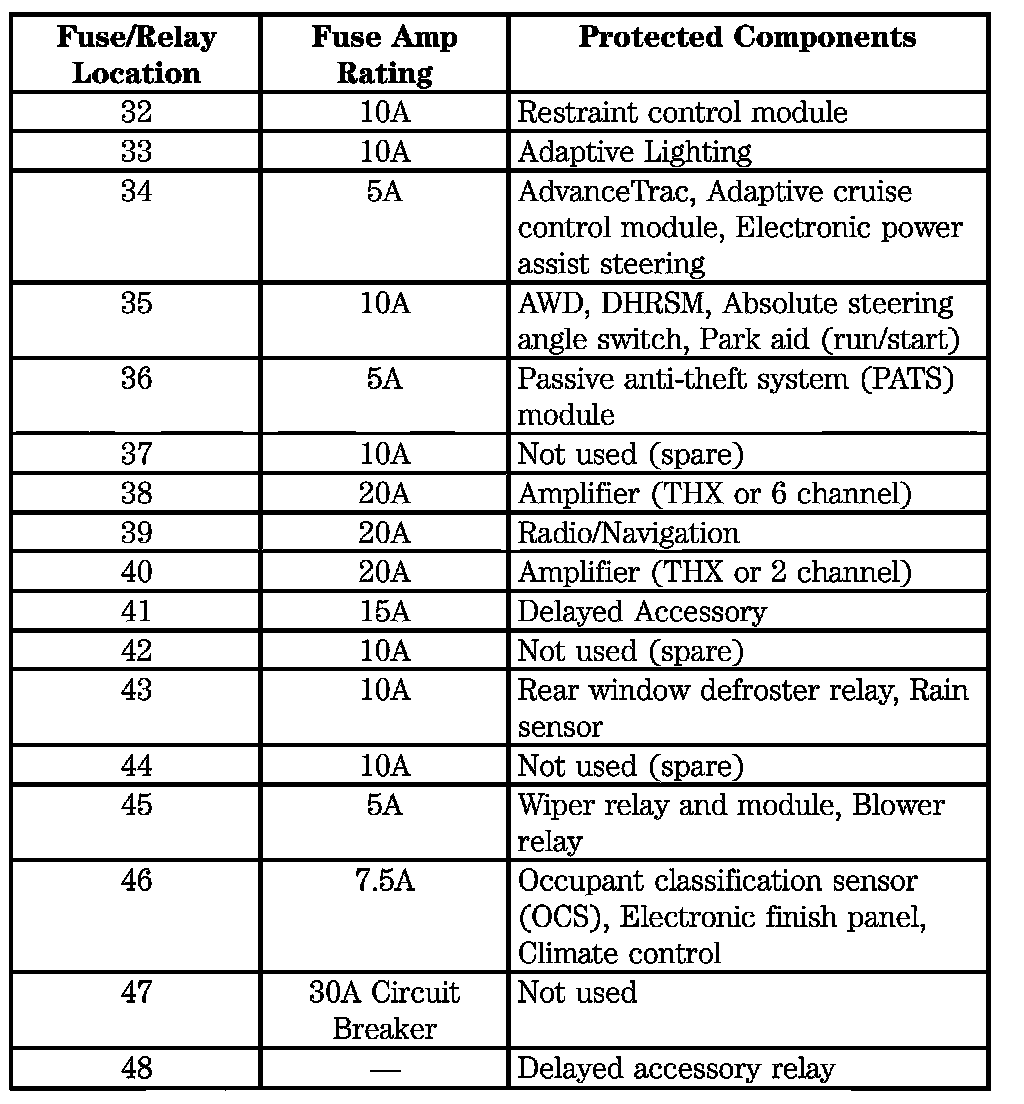

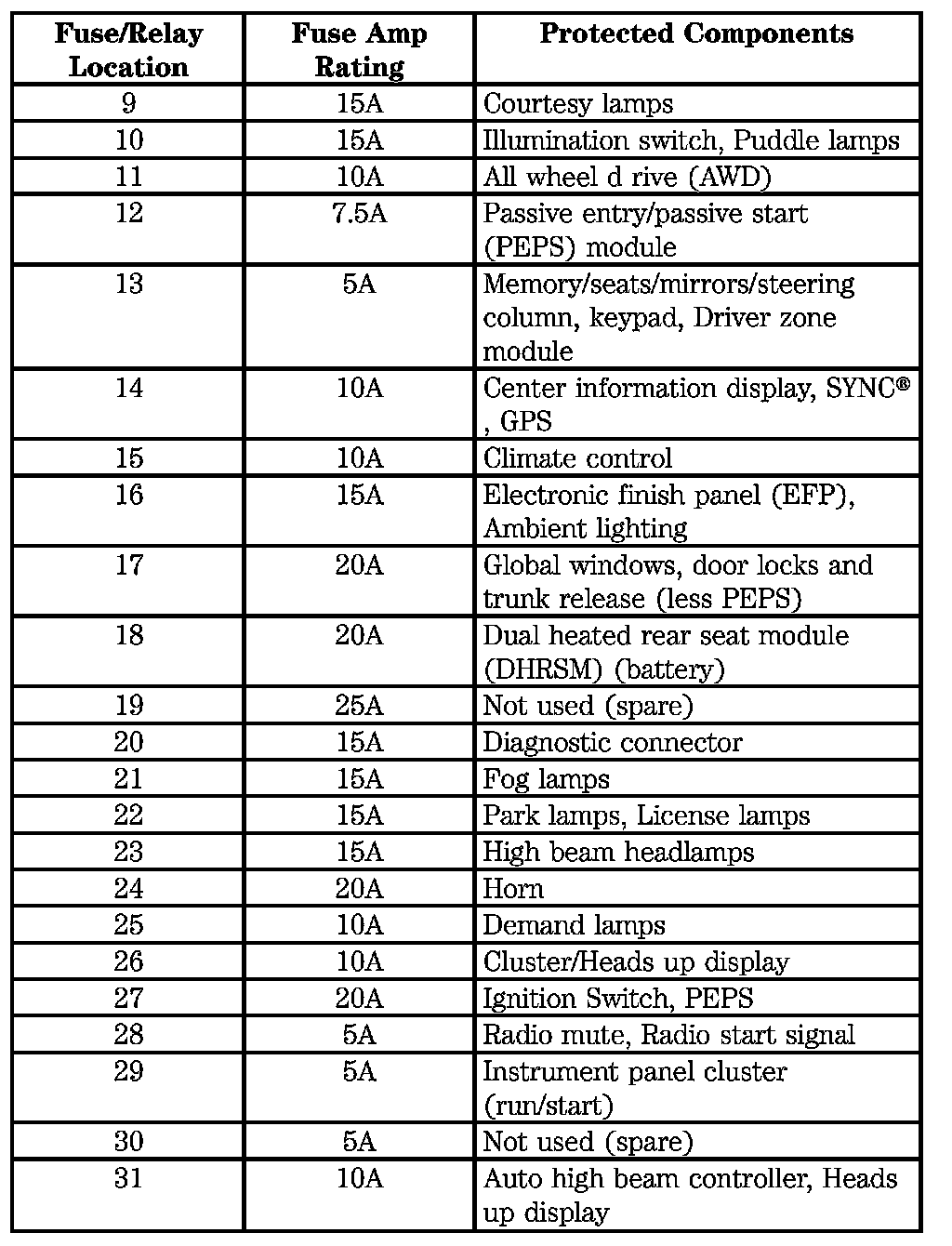

Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel
Note:
The fuse panel is located under the instrument panel on the left side of the steering wheel.
