Parking Aid Sensor - Rear

Parking Aid Sensor - Rear

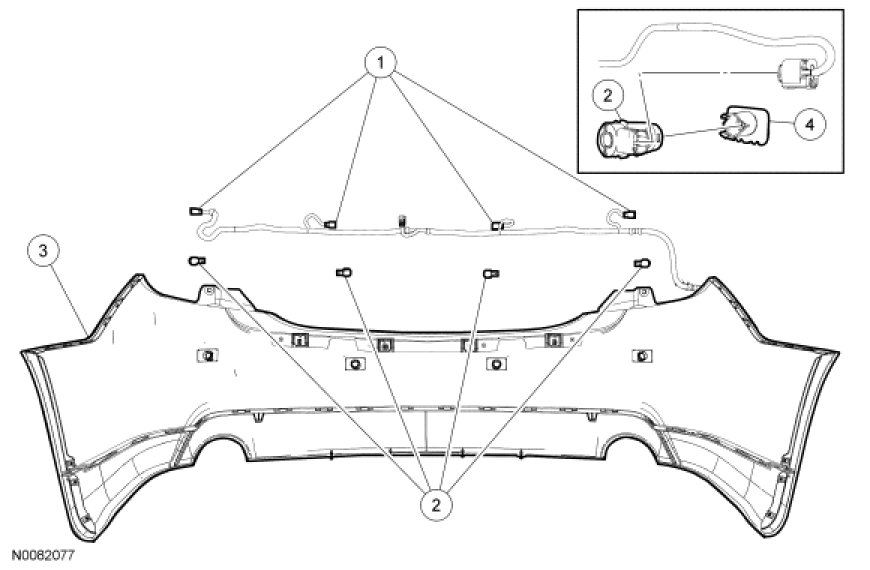

Removal and Installation

1. Remove the rear bumper cover. For additional information, refer to Bumper.

2. Disconnect the parking aid sensor(s) electrical connector(s).

3. Using a suitable tool (such as a flat-bladed screwdriver), gently pry the retaining tabs to release the sensor(s).
- Remove the parking aid sensor(s).

4. To install, reverse the removal procedure.
- NOTE: Paint the new sensor(s) with base coat and one coat of clear. Excessive paint film buildup may result in incorrect sensor operation.

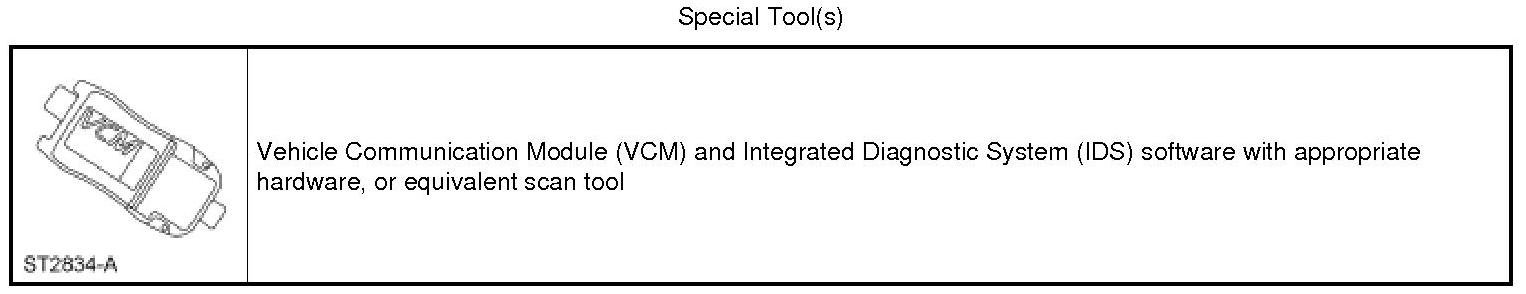

Using the scan tool, verify that the parking aid sensor PIDs read no object present, and that the parking aid sensor attenuation PIDs read between 0.8-1.6 ms. If the parking aid sensor attenuation PIDs do not read between 0.8-1.6 ms, the paint is too thick on the sensor(s) and it is necessary to repaint the sensor(s) as required.
