Inspection and Verification

Turbocharger

Inspection and Verification

NOTE: This section provides mechanical diagnosis of the turbocharger assembly. If there is a Malfunction Indicator Lamp (MIL) illuminated, or DTCs are present, these should be diagnosed prior to performing turbocharger mechanical diagnosis. Refer to Computers and Controls.

1. Verify the customer concern.

2. Inspect the entire turbocharger system for obvious signs of damage or other mechanical concerns, using the following chart.

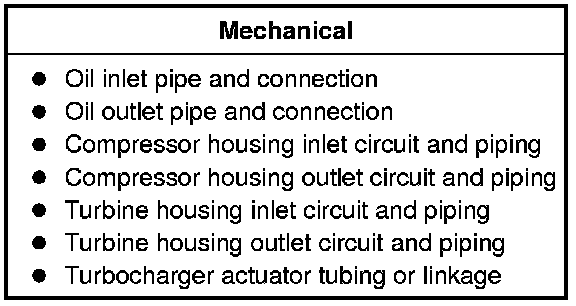

Visual Inspection Chart






3. If the concern(s) remains after the inspection, GO to Symptom Chart.

4. If a driveability condition still exists, refer to Computers and Controls.
