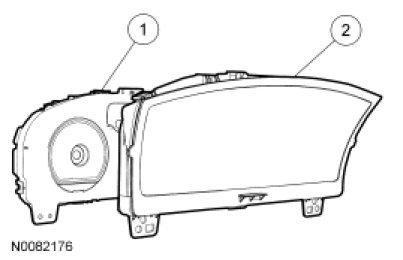

Instrument Panel Cluster (IPC) Lens

Instrument Panel Cluster (IPC) Lens









Removal and Installation

1. Remove the Instrument Panel Cluster (IPC). For additional information, refer to Instrument Panel Cluster (IPC) Instrument Panel Cluster (IPC).

2. Release the retaining tabs and remove the IPC lens.





3. To install, reverse the removal procedure.
