Valve Spring, Retainer And Seal - Installation

Valve Spring, Retainer and Seal

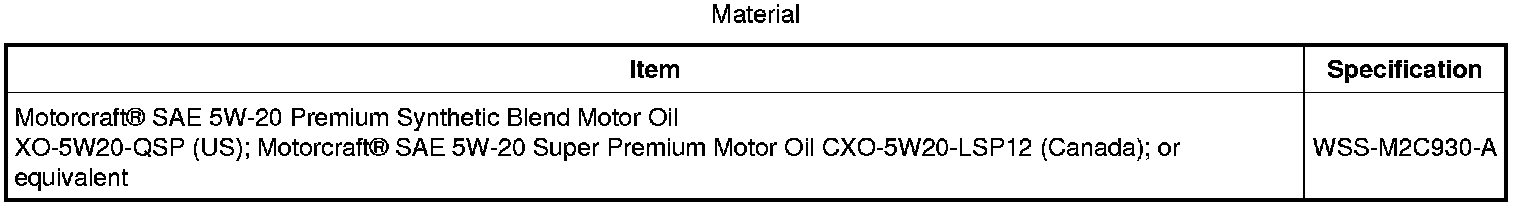

1. NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

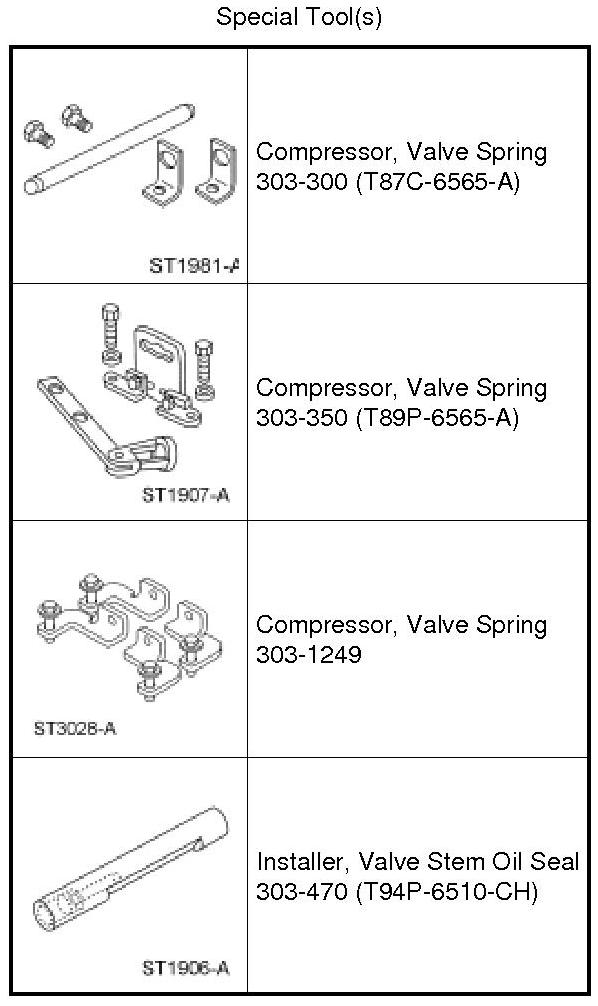

Using the Valve Stem Oil Seal Installer, install a new valve stem seal.





2. Using the Valve Spring Compressors, install the valve spring, retainer and key.





3. Install the valve tappets.
