Automatic Transmission/Transaxle
>>
System Diagram
>>

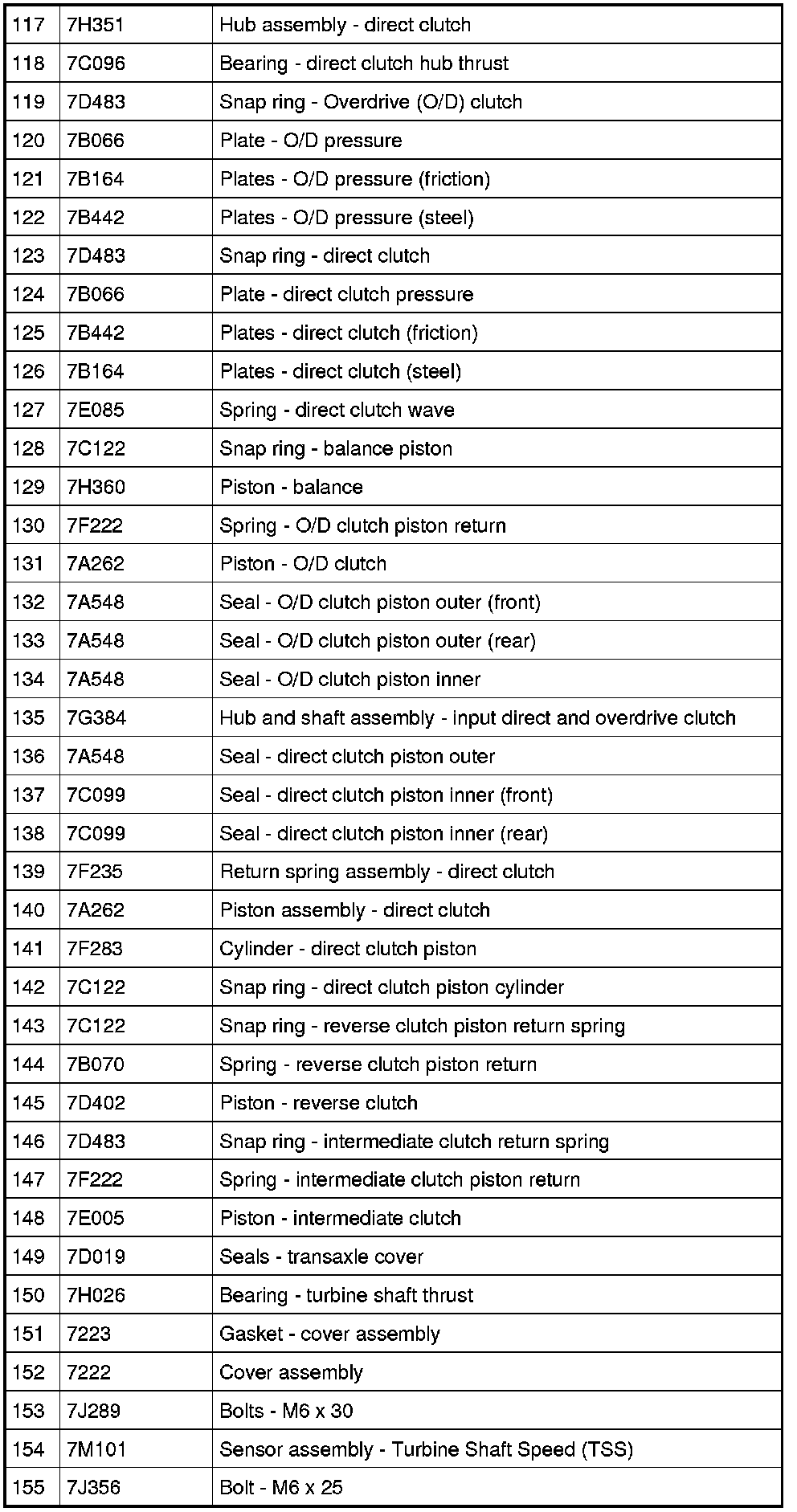

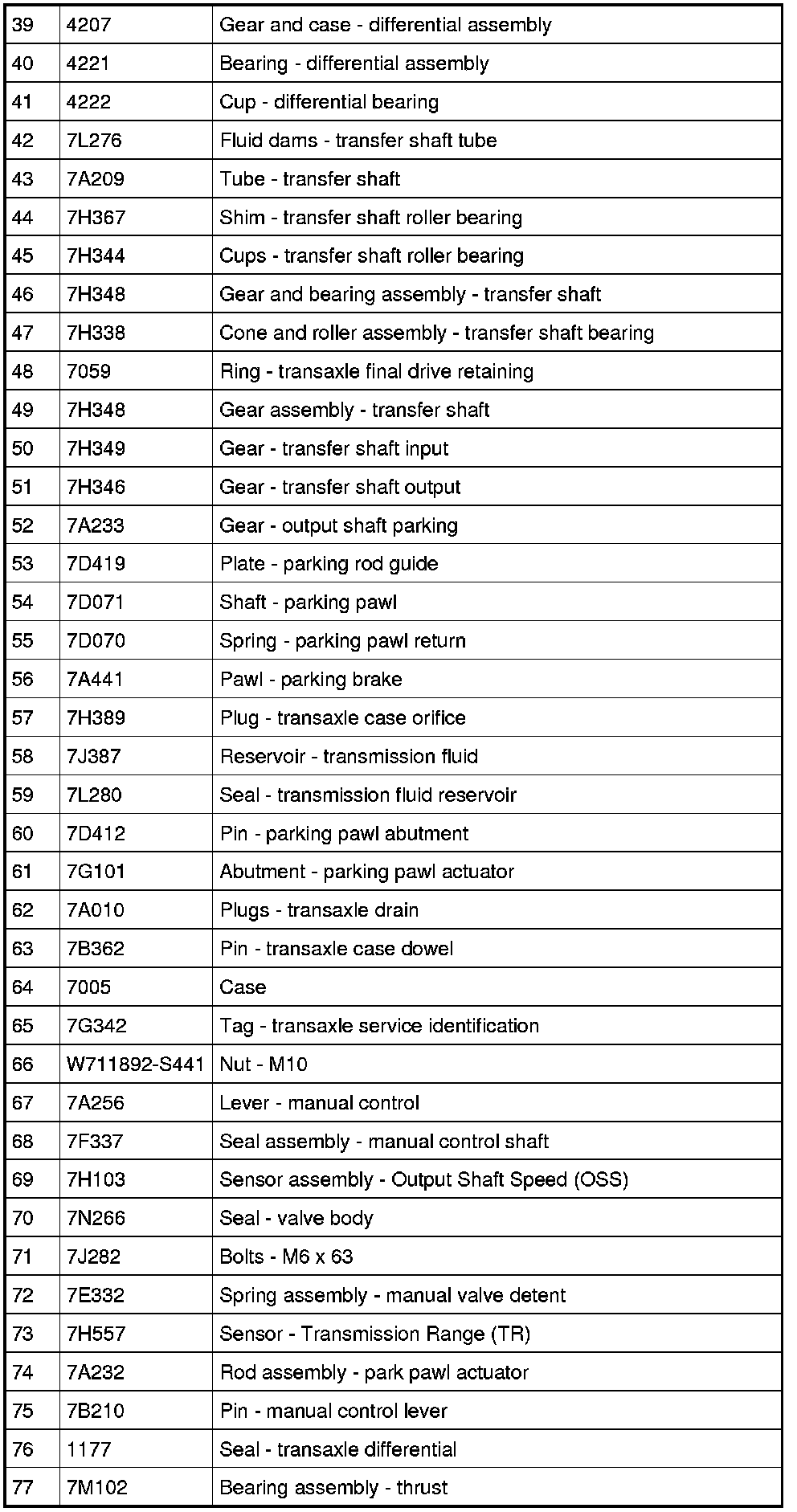

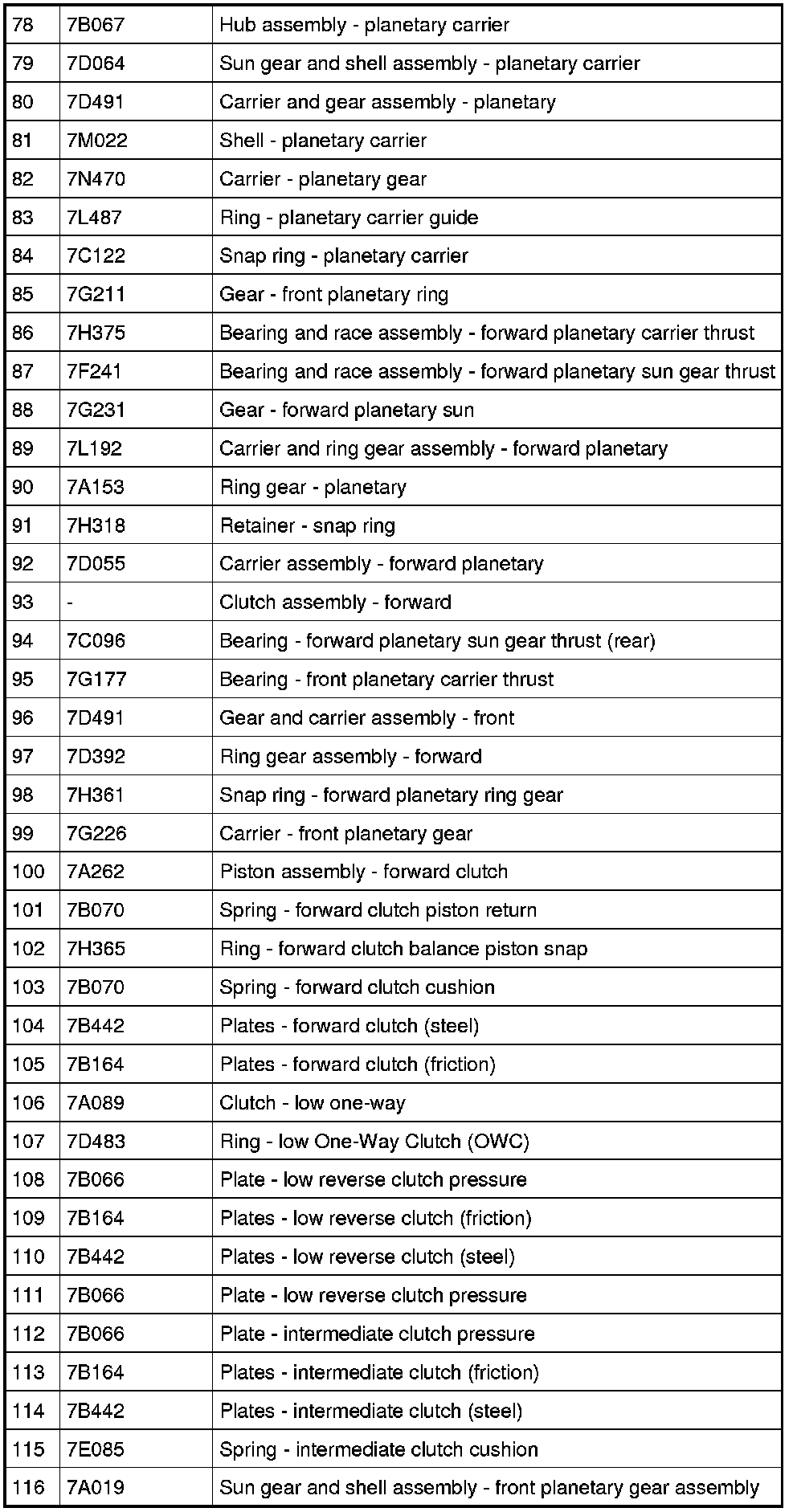

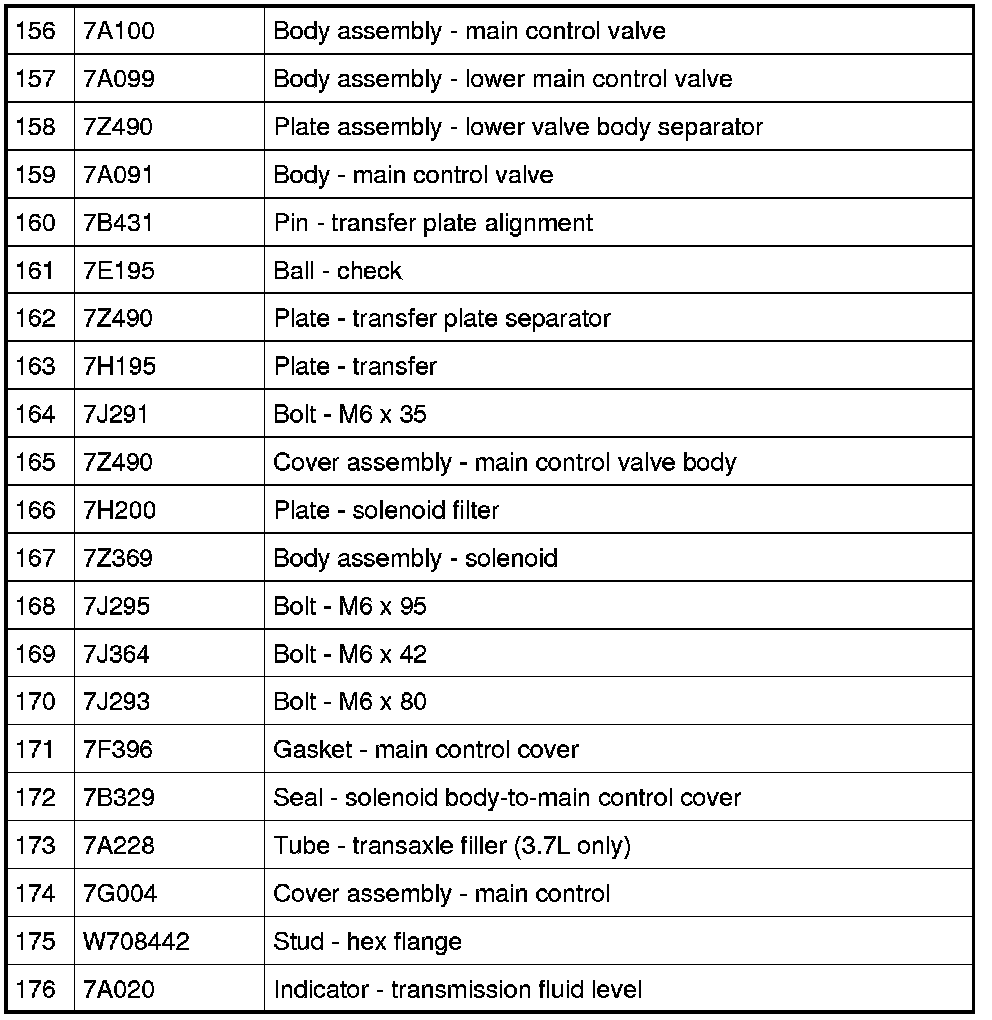

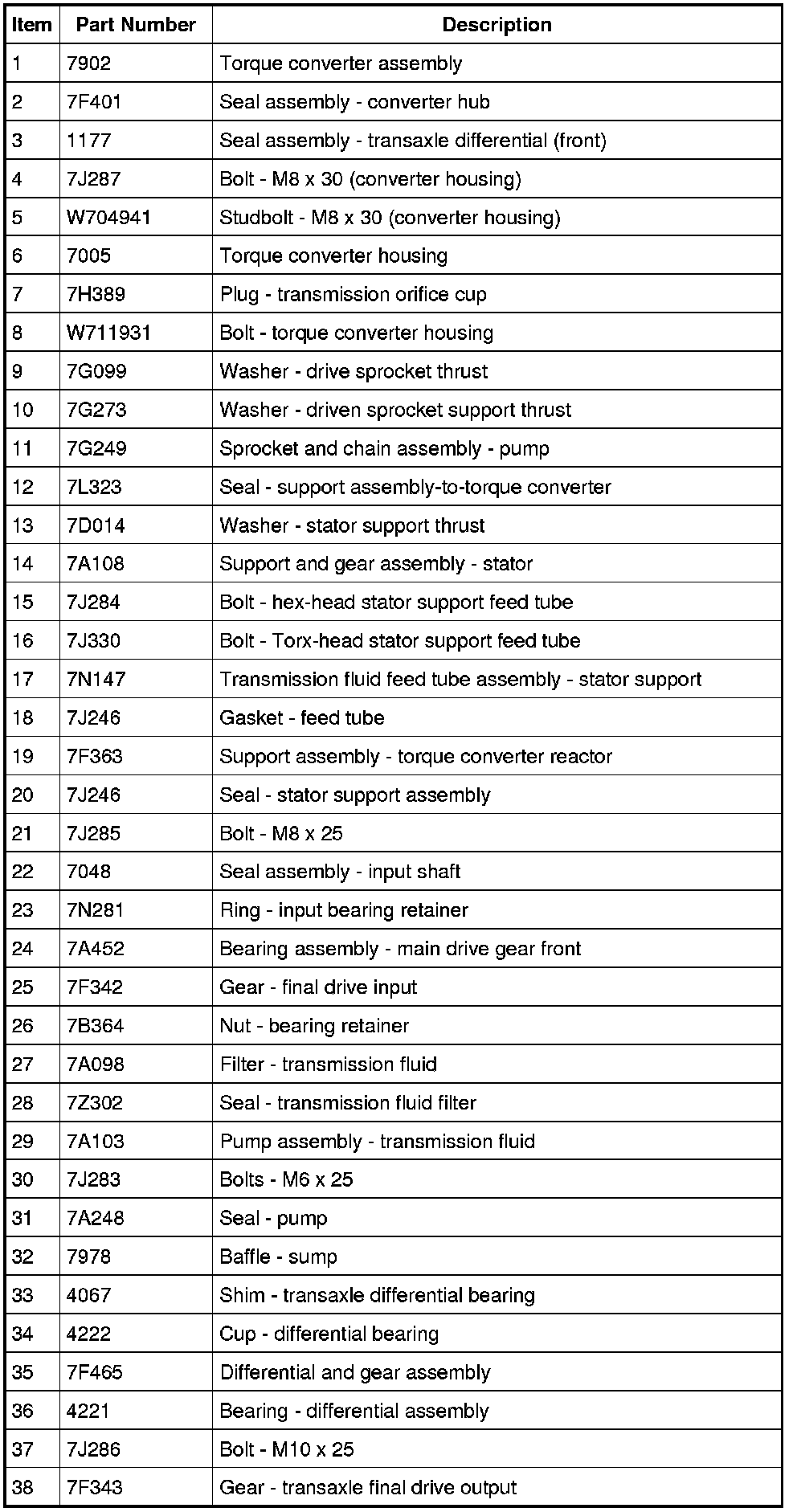

Disassembled Views
Disassembled Views
Transaxle
Disassembled Views
