Roof Opening Panel Motor - Sliding Front Panel

Roof Opening Panel Motor - Sliding Front Panel

Removal and Installation

NOTE: The roof opening panel motor(s) must be initialized when repairs are carried out on any part of the roof opening panel system, including: whenever the roof opening panel sliding glass motor or power shade motor has been removed from the roof opening panel system, the roof opening panel glass has been removed from the roof opening panel system, the roof opening panel assembly has been removed from the vehicle, a new roof opening panel motor has been installed, a new roof opening panel glass has been installed or a new roof opening panel assembly has been installed. For additional information, refer to Roof Opening Panel Motor Initialization Programming and Relearning.

1. Position the front sliding glass panel to the CLOSED position and the power shade to the full OPEN position.

2. Remove the A-pillar and B-pillar trim panels.

3. Remove the front passenger assist handle and the LH and RH sunvisors and clips.

4. Remove the overhead console. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

5. Lower the front portion of the headliner and block with a suitable material.

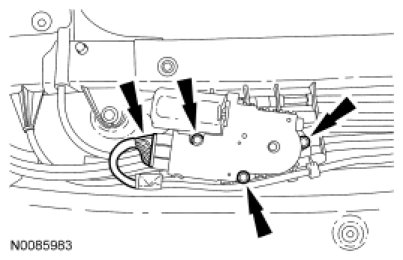

6. Disconnect the electrical connector, remove the 3 motor screws and the front sliding glass panel motor.





7. To install, reverse the removal procedure.
- Initialize the front sliding glass panel motor. For additional information, refer to Roof Opening Panel Motor Initialization Programming and Relearning.
