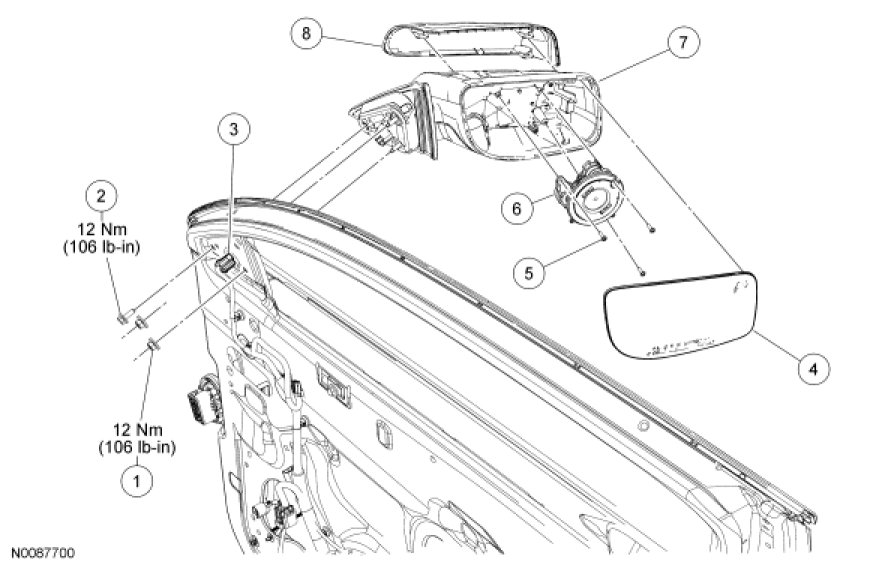

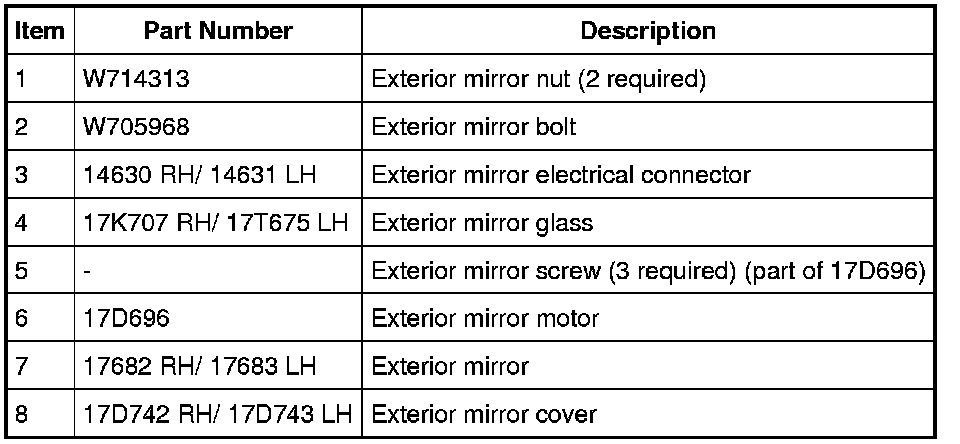

Exterior Mirrors - Exploded View
Exterior Mirrors - Exploded View
Exterior
Mirrors
- Exploded View
NOTE:
RH shown, LH similar.
