Exhaust System
Exhaust System
Exhaust System
- Exploded View

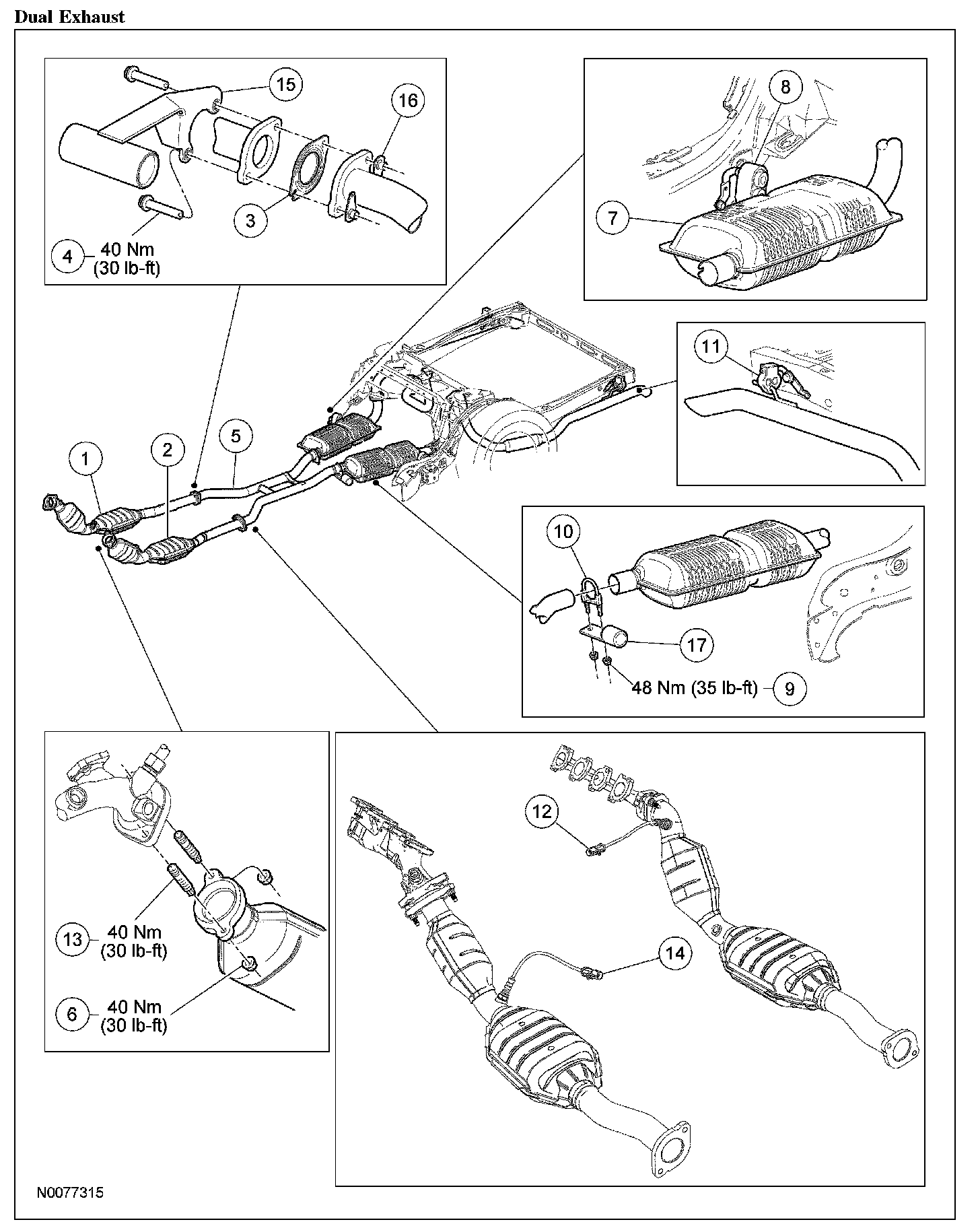

Exhaust System - Exploded View, Dual Exhaust (Part 1):

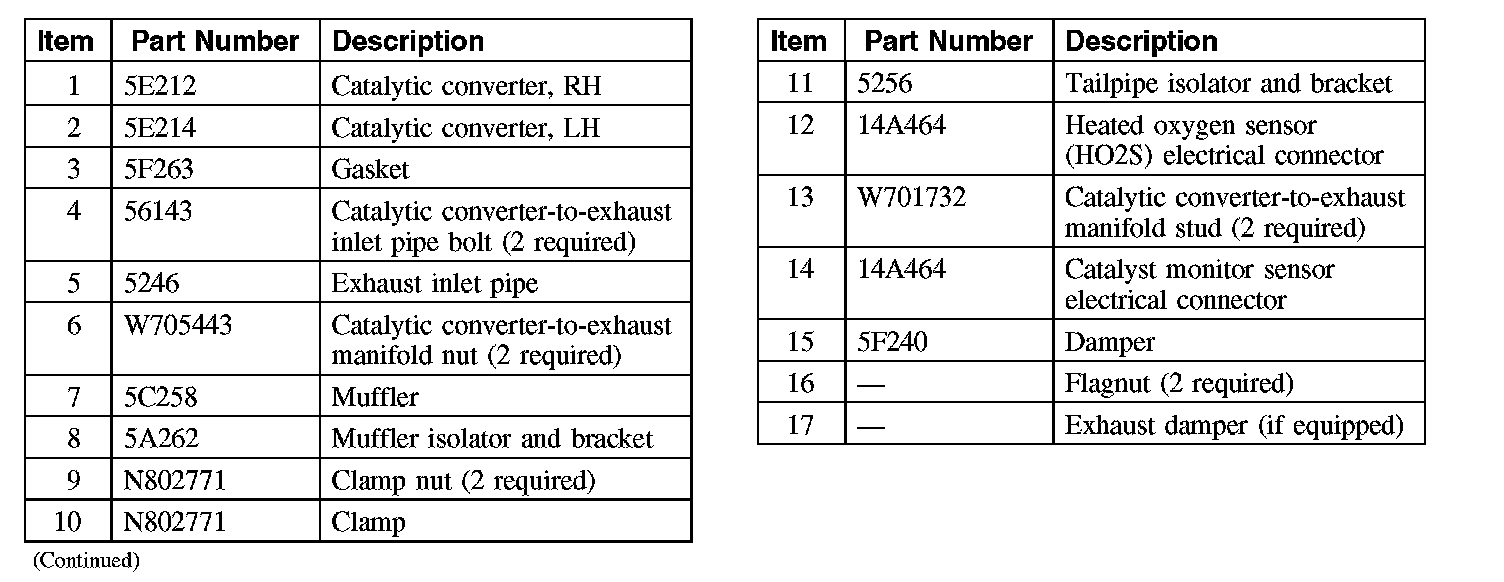

Exhaust System - Exploded View, Dual Exhaust (Part 2):
