Shift Cable: Adjustments
Gearshift Cable Adjustment1. Set the parking brake.
2. Remove the floor console. For additional information, refer to Console.

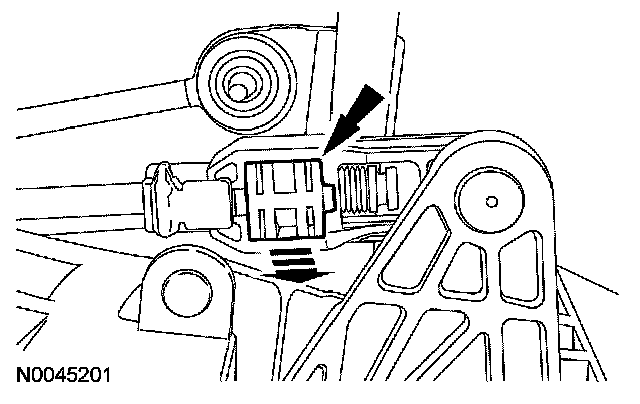

3. Disengage the safety lock by sliding it away from the shifter ball stud.

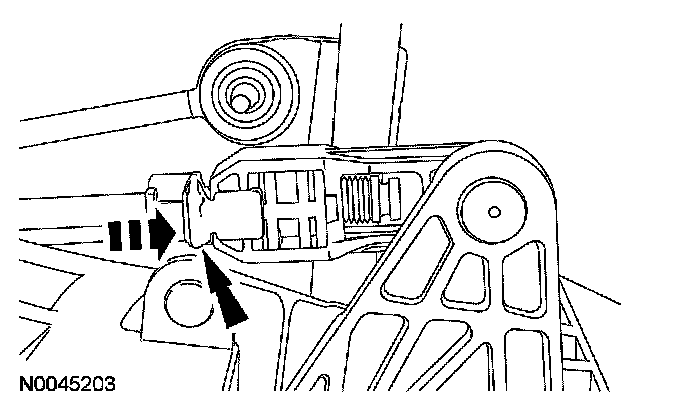

4. NOTE: If the cable lock is difficult to slide out, disconnect the shift cable from the ball stud, push the lock from the rear and reattach the shift cable to the ball stud.

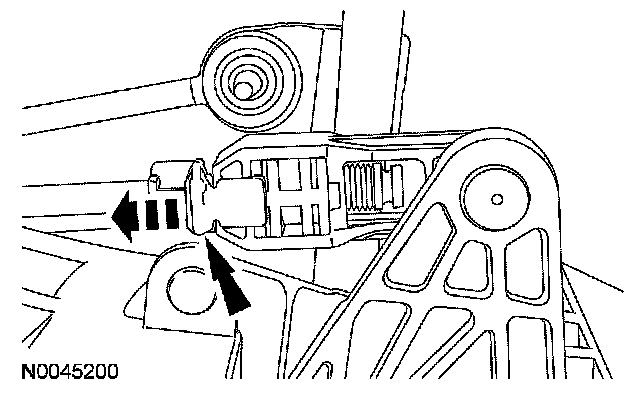

Disengage the cable lock by sliding it away from the shift cable.
5. Move the shift lever to the center position. With the shifter and the transmission in NEUTRAL, push the cable lock onto the cable.

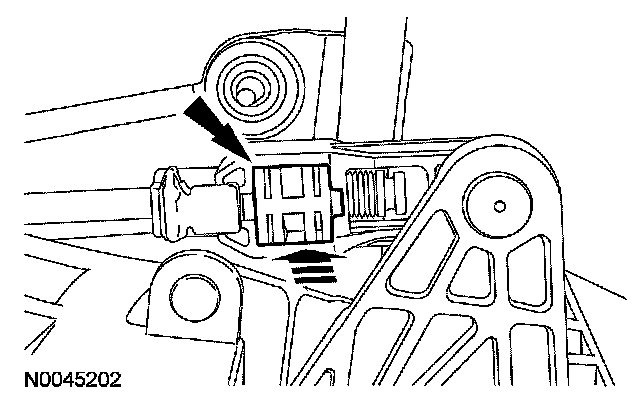

6. Engage the safety lock by sliding it over the primary shift cable lock.
7. Install the floor console. For additional information, refer to Console.
