Clutch Pedal Assembly: Adjustments

Clutch Pedal Freeplay Adjustment

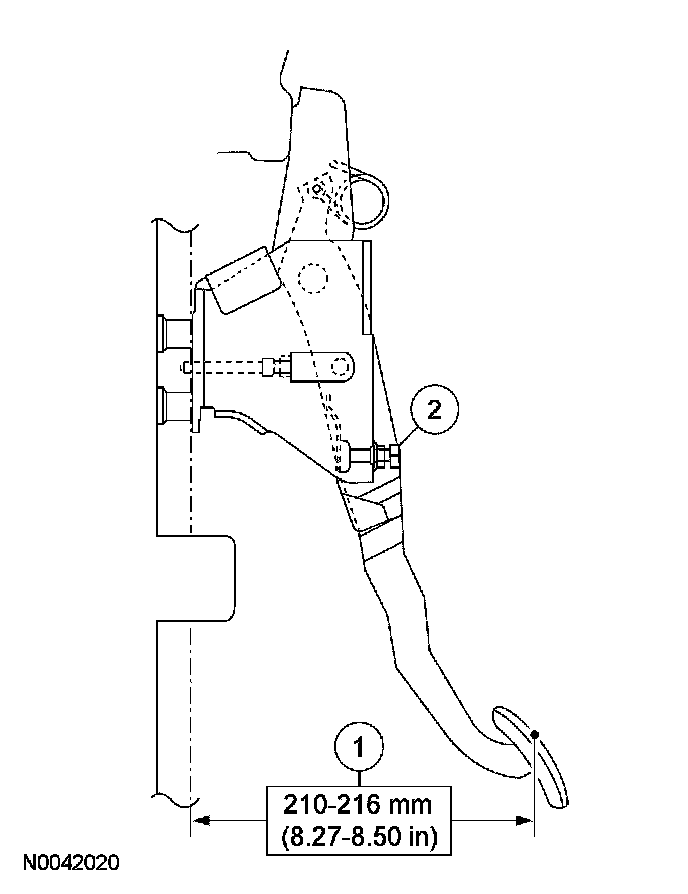

1. Measure the clutch pedal height.
1 If the measurement is not within specification, turn the adjustment bolt as necessary.
2 Tighten the locknut.
^ Recheck the measurement.

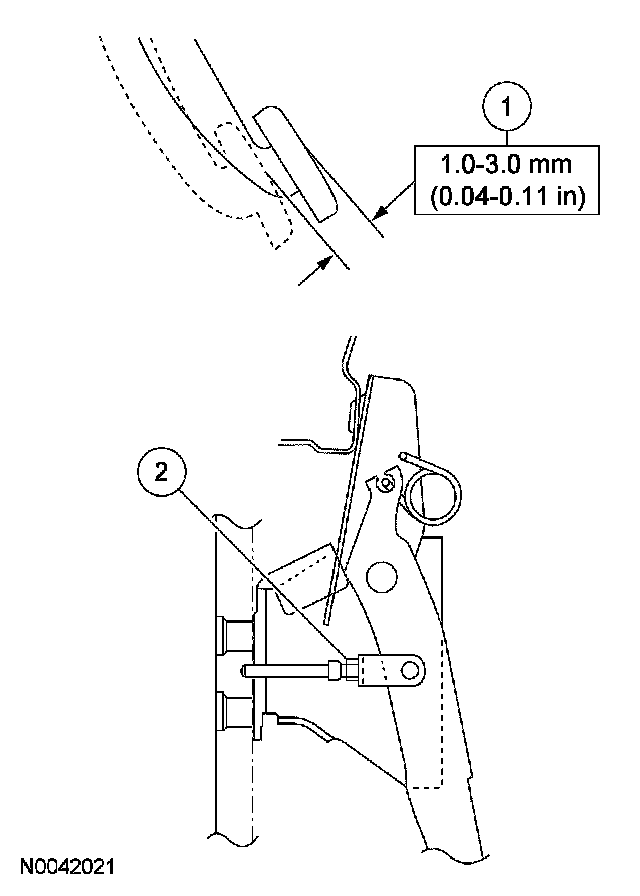

2. Measure clutch pedal free play.
1 Depress the clutch pedal by hand until clutch resistance is felt.
2 If the measurement is not within specification, loosen the locknut and turn the push rod as necessary.
^ Recheck the measurement.
