Clutch Slave Cylinder: Service and Repair

Clutch Slave Cylinder

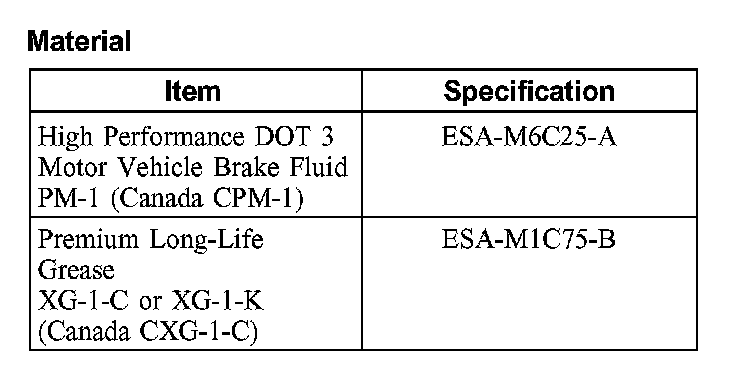

Material:

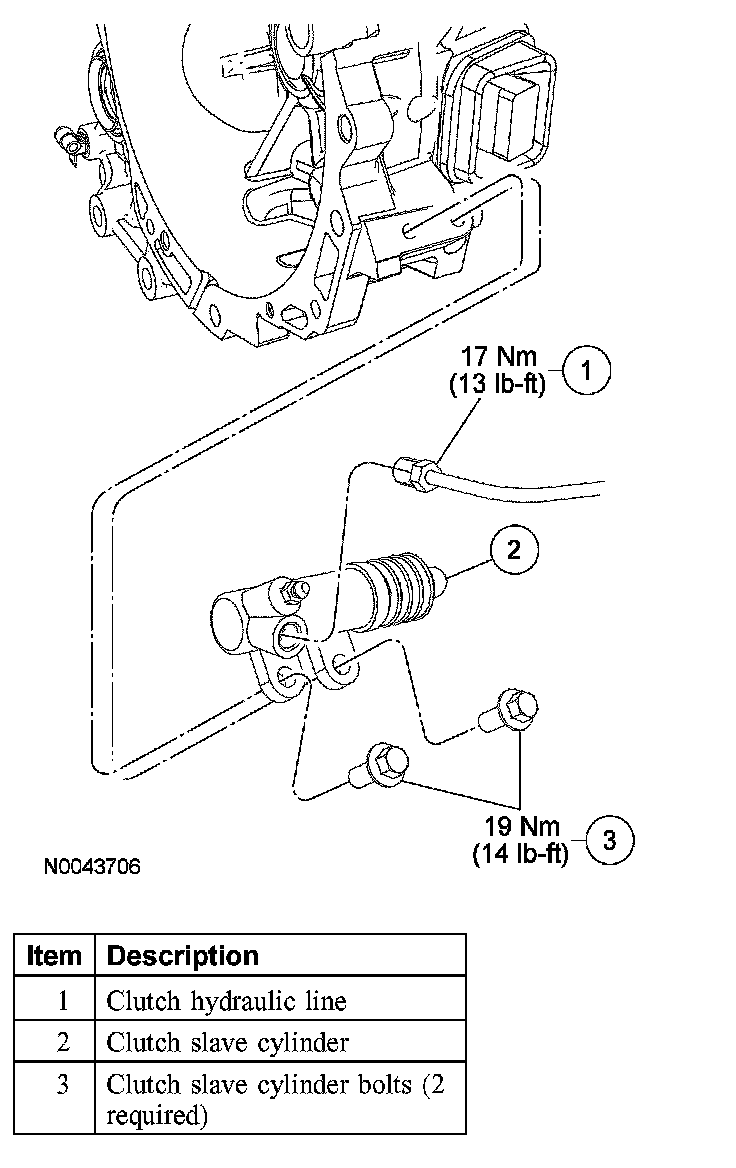

Removal and Installation

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, wash it immediately with water.

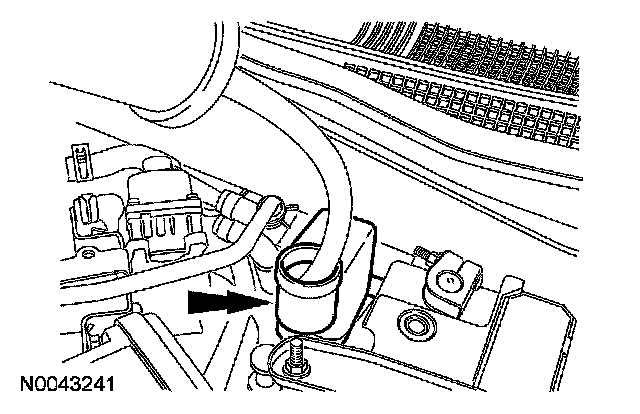

1. Using a suitable suction tool, remove the brake fluid to just below the clutch reservoir hose.

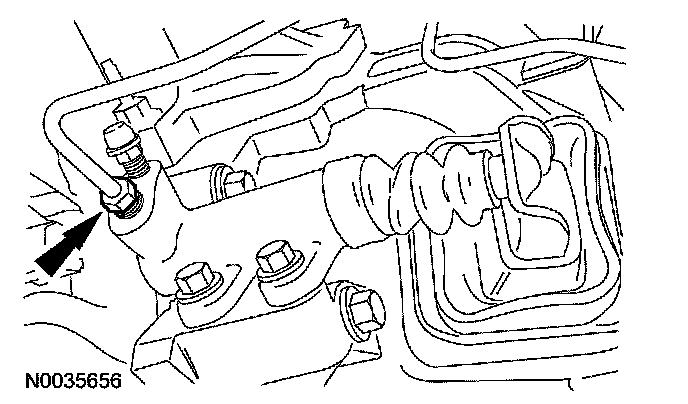

2. Disconnect the clutch slave cylinder-to-clutch master cylinder line.

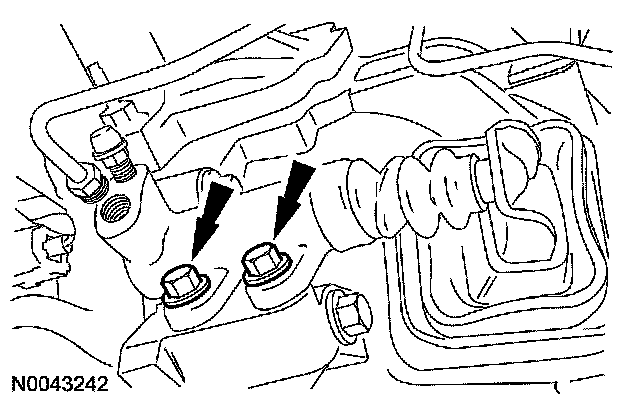

3. Remove the 2 clutch slave cylinder bolts and the clutch slave cylinder.
^ To install, tighten to 19 Nm (14 ft. lbs.).
4. To install, reverse the removal procedure.
^ Apply a small amount of grease on the end of the slave cylinder push rod.
^ Bleed the air from the system.
