Clutch Master Cylinder: Service and Repair

Clutch Master Cylinder

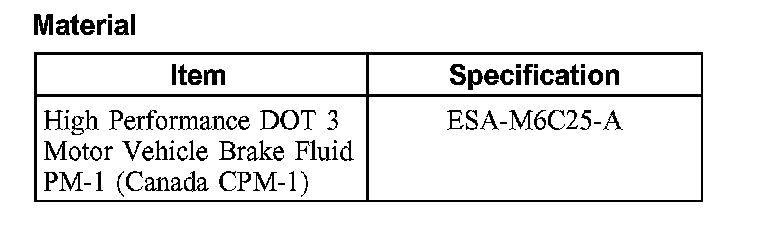

Material:

Removal and Installation

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, wash it immediately with water.

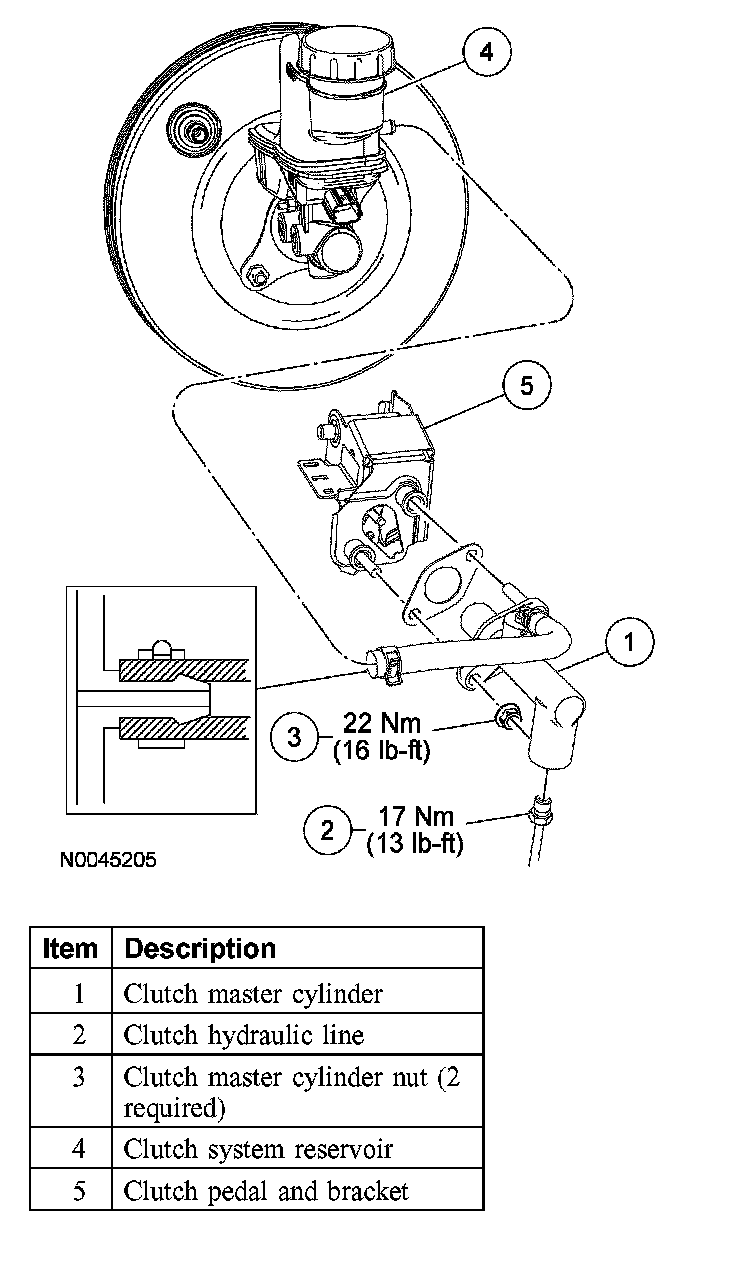

1. Working under the instrument panel, remove the clutch master cylinder nut.
^ To install, tighten to 21 Nm (15 ft. lbs.).

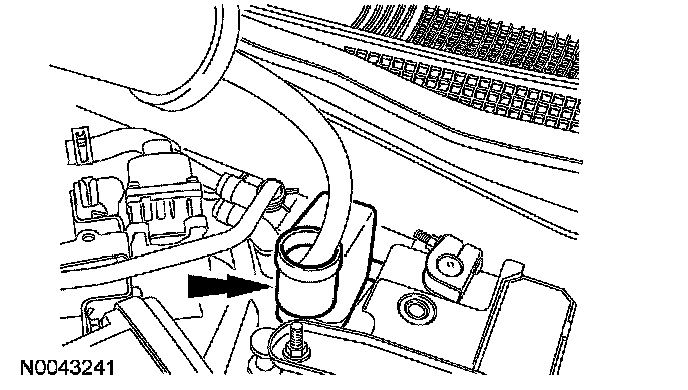

2. Using a suitable suction tool, remove the brake fluid to just below the clutch reservoir hose.
3. Remove the battery and the battery tray. For additional information, refer to Battery.





4. Remove powertrain control module (PCM).

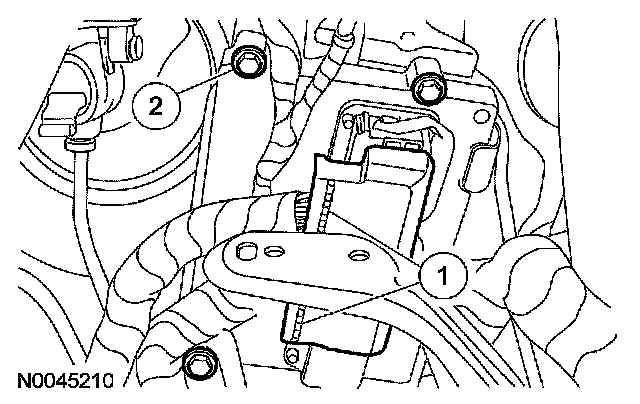

1 Disconnect the electrical connectors.
2 Remove the PCM bolts.

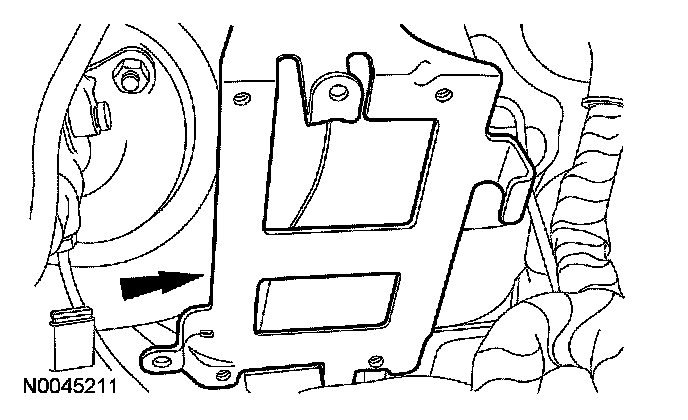

5. Remove the PCM bracket.

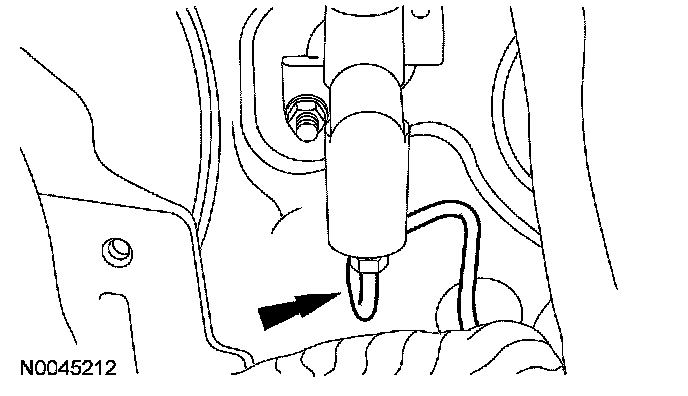

6. Disconnect the clutch master cylinder-to-clutch slave cylinder hydraulic line.
^ To install, tighten to 17 Nm (13 ft. lbs.).
7. Disconnect the clutch master cylinder-to-clutch reservoir hose.
8. Remove the clutch master cylinder nut.
^ To install, tighten to 21 Nm (15 ft. lbs.).
9. Remove the clutch master cylinder assembly.
10. To install, reverse the removal procedure.
11. Bleed the clutch hydraulic system.
