Steering Column Lock Module

Steering Column Lock Module

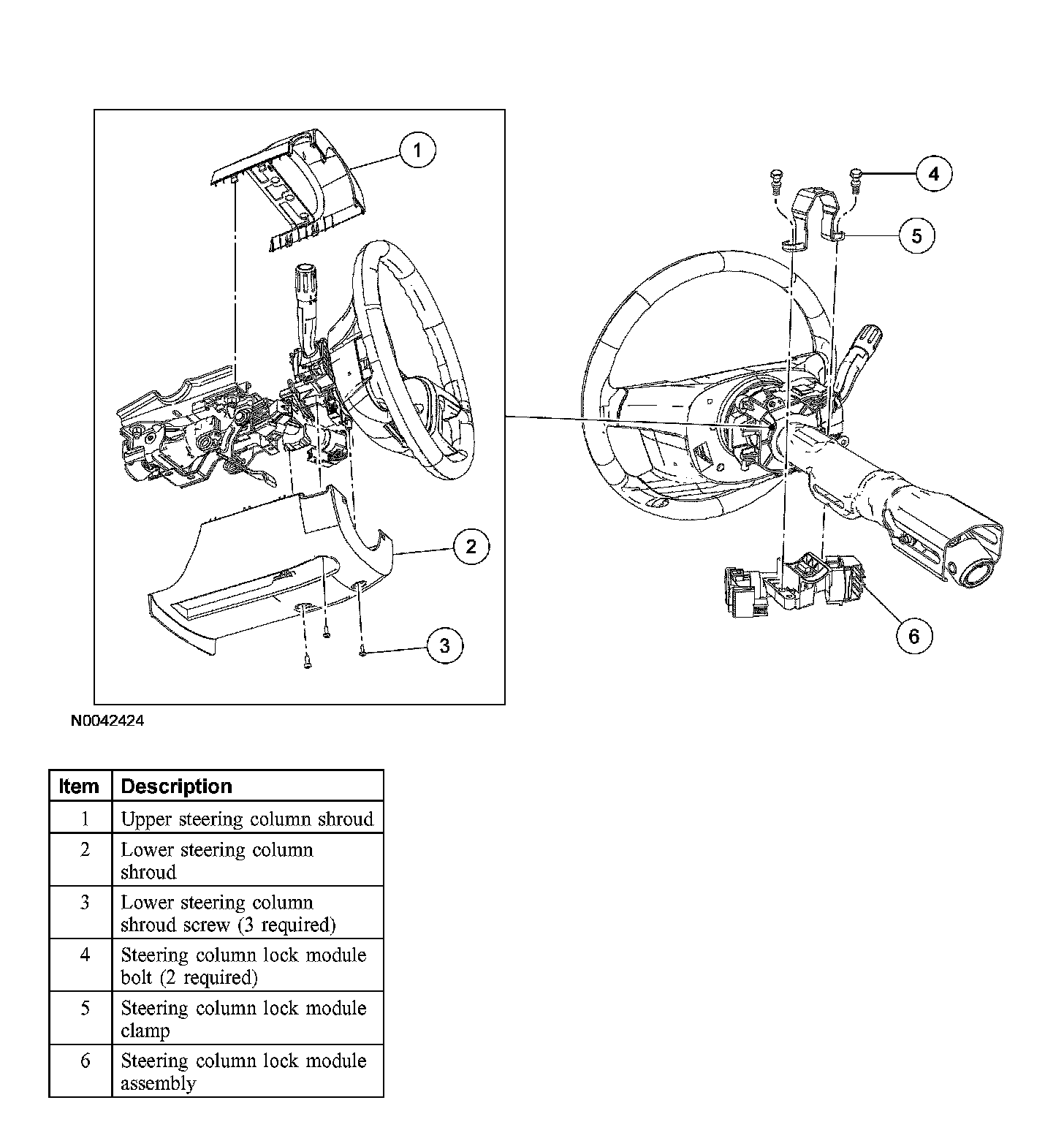

Removal and Installation

1. Disconnect the battery ground cable. For additional information, refer to Battery.

2. NOTE: The instrument panel steering column cover is held in place by tabs that clip to the instrument panel.

Remove the instrument panel steering column cover by pulling straight outward.

3. NOTE: Release the upper steering column shroud, by pressing inward on the sides of the shroud and lifting upwards.

Remove the upper steering column shroud.
4. Release the tilt lever, remove the 3 screws and then remove the lower steering column shroud.
5. Disconnect the multi-function switch electrical connector.
6. Disconnect the passive anti-theft system (PATS) and ignition switch connectors.

7. NOTE: After cutting slots in the steering lock module bolts, clean all metal shavings and foreign material from the steering column.

Using a suitable tool, cut slots into the heads of the 2 steering lock module bolts.

8. NOTE: The steering lock module bolts are designed to sheer off when tightened.

Remove the 2 steering lock module bolts using a screwdriver.
^ Discard the steering lock module bolts.
^ To install, tighten the steering lock module bolts until the heads of the bolts shear off.
9. Remove the steering lock module clamp and the steering lock module assembly from the steering column.

10. NOTE: Align the locating tab on the steering lock module with the window of the steering column tube. Verify that the lock module operates correctly.

To install, reverse the removal procedure.
