Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

Special Tool(s):

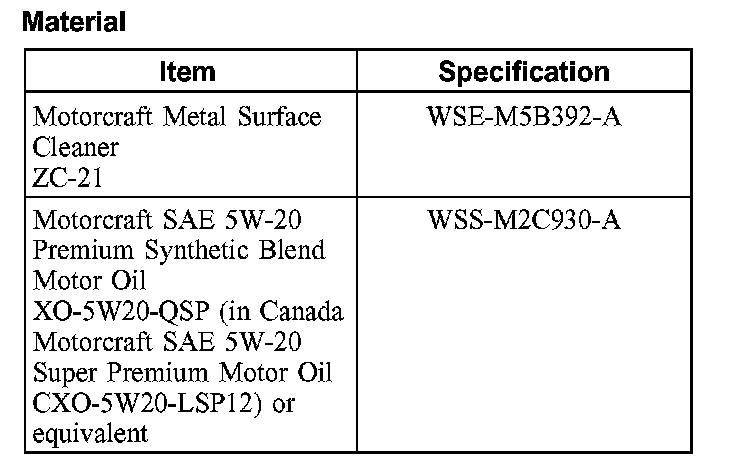

Material:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the crankshaft pulley.





3. Using the special tool, remove and discard the crankshaft front seal.

Installation

1. NOTE: Clean all sealing surfaces with metal surface cleaner.

Apply clean engine oil to the seal lip and seal bore before installing the seal.





2. Using the special tools, install a new crankshaft front seal.
3. Install the crankshaft pulley.
