Engine Mount: Service and Repair

Engine Mount

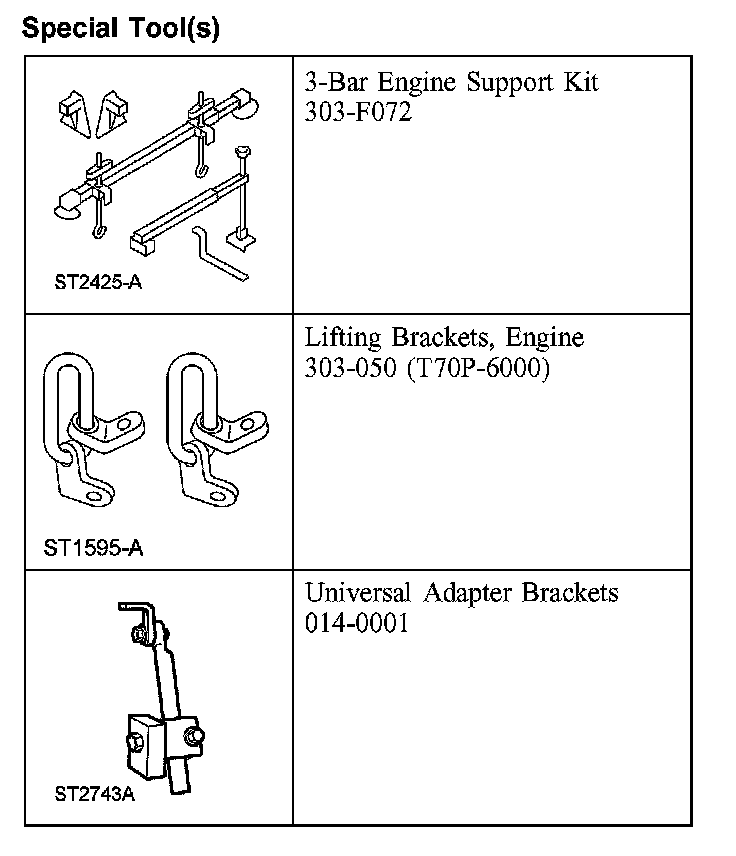

Special Tool(s):

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Release the fuel system pressure. For additional information refer to Fuel Delivery and Air Induction.
3. Remove the engine coolant degas bottle. For additional information, refer to Cooling System.
4. Remove the lower intake manifold.

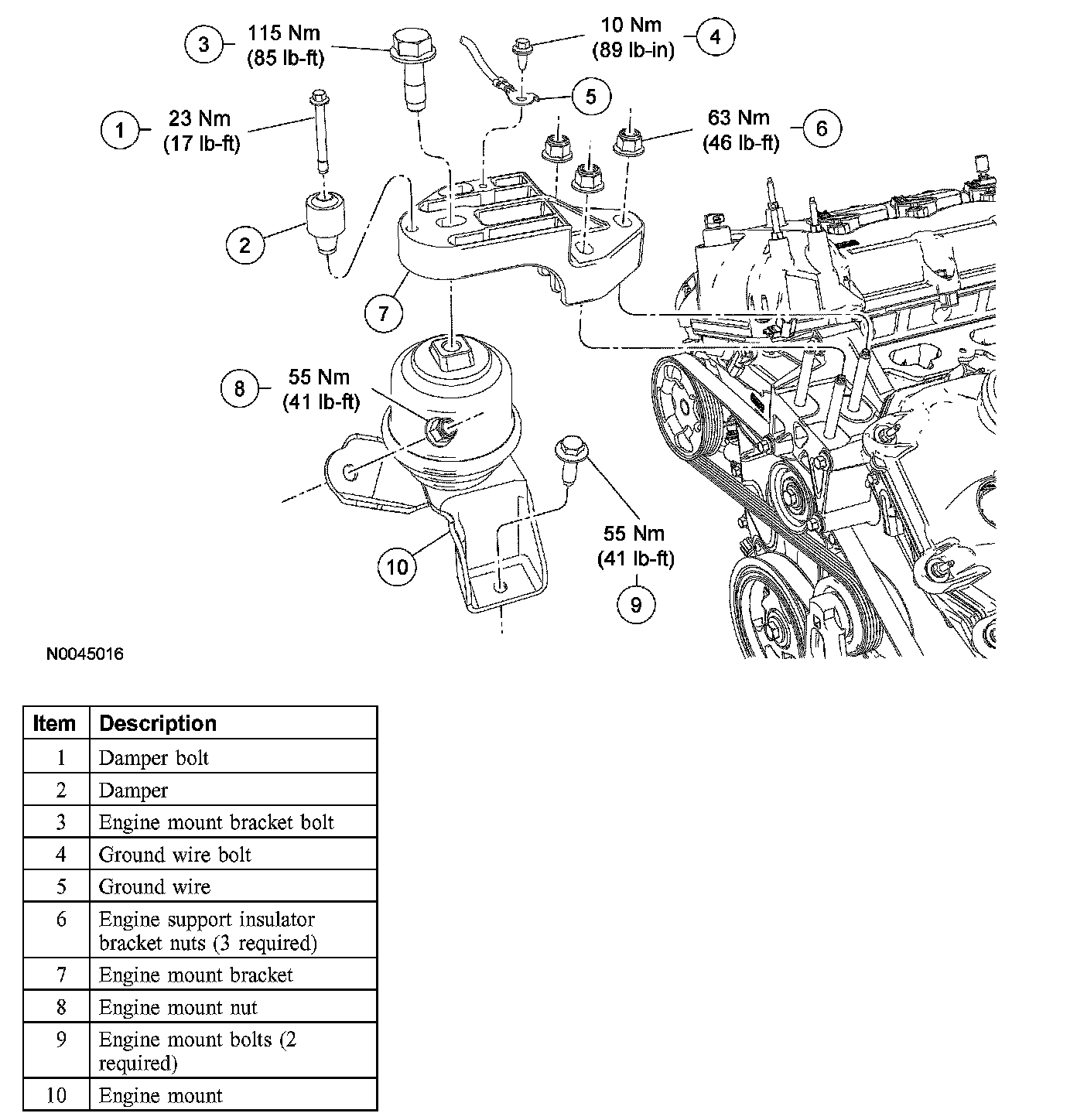

5. Remove the bolt and position aside the ground wire.
^ To install, tighten to 10 Nm (89 inch lbs.).
6. Remove the bolt and damper.
^ To install, tighten to 23 Nm (17 ft. lbs.).
7. Remove the engine mount bracket bolt.
^ To install, tighten to 115 Nm (85 ft. lbs.).

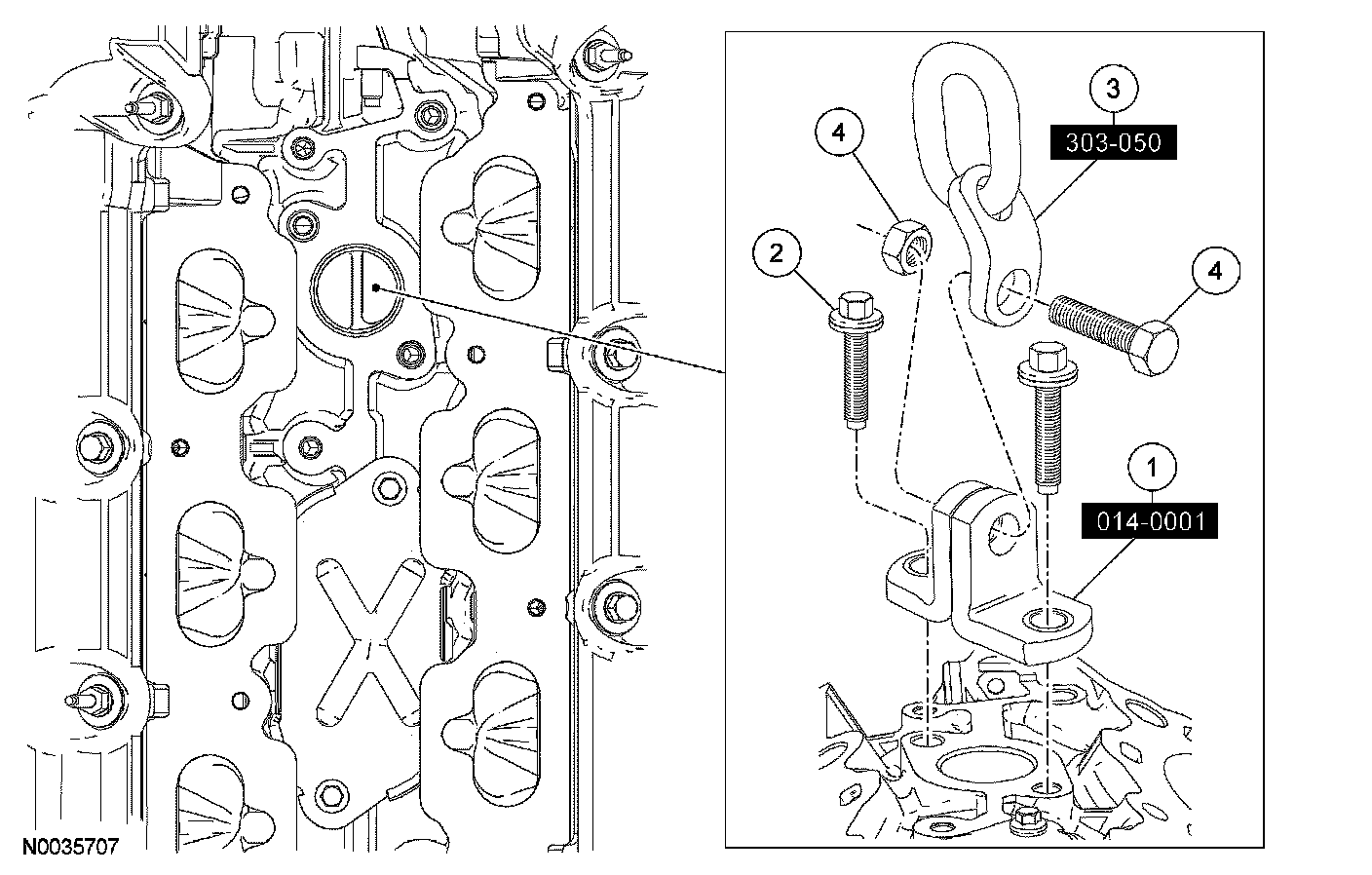

8. Install the special tools.
1 Position the 2 universal adapter brackets on top of the cylinder block.
2 Install 2 M8 x 1.25 x 36 mm (1.41 inch) bolts and tighten to 10 Nm (89 inch lbs.).
3 Position the universal lifting bracket onto the 2 universal adapter brackets.
4 Fasten the universal lifting bracket to the 2 universal adapter brackets with a suitable nut and bolt.

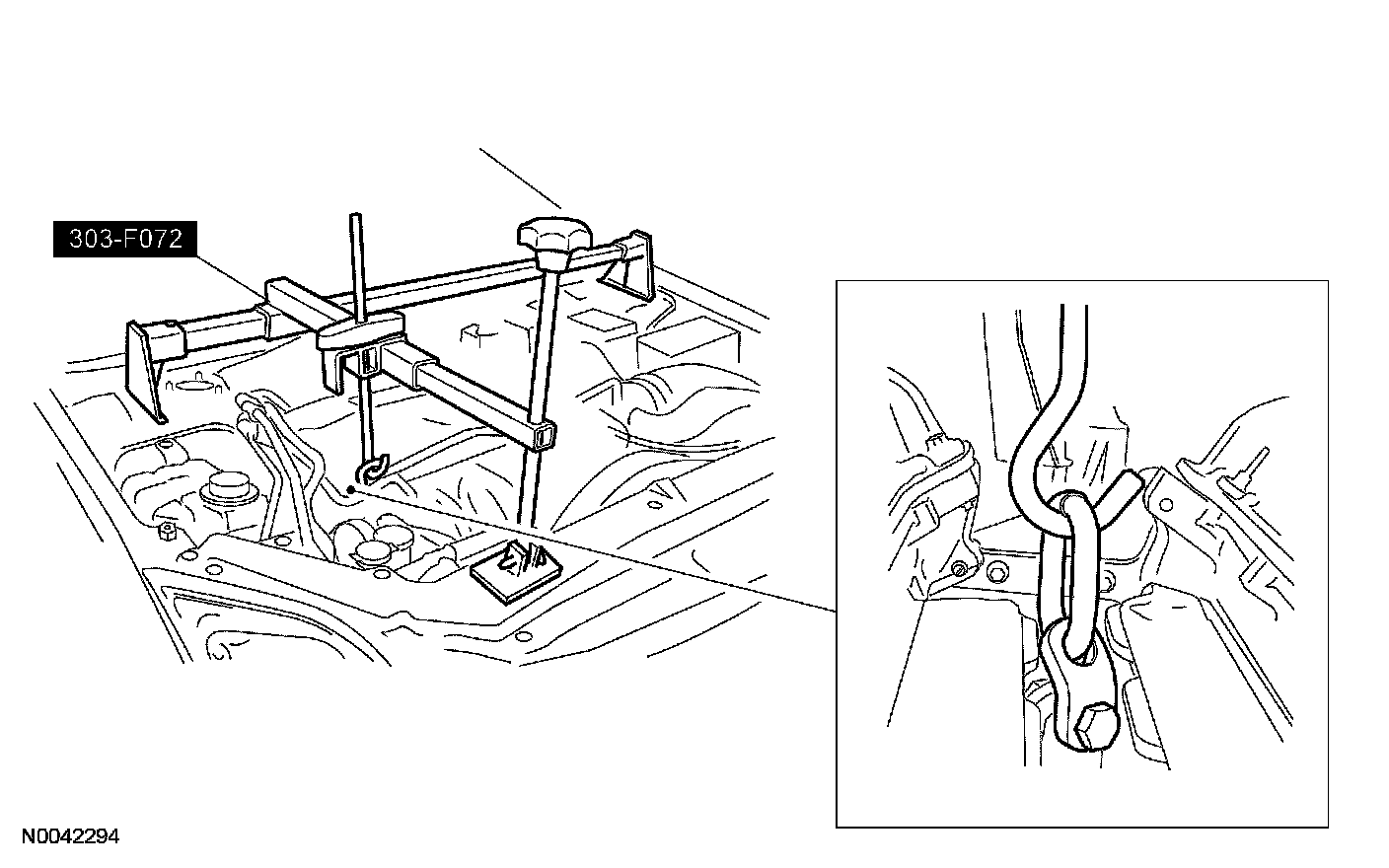

9. Install the special tool and raise the engine 25 mm (0.98 inch).
10. Remove the 3 engine mount bracket nuts.
^ To install, tighten to 63 Nm (46 ft. lbs.).
11. Remove the nut, 2 bolts and the engine mount.
^ To install, tighten to 55 Nm (41 ft. lbs.).

12. NOTE: If the engine mount bracket is to be removed, the engine must be lowered to avoid contact between the A/C tubes and the engine mount bracket.

Use the special tool to lower the engine 25 mm (0.98 inch).
^ Remove the engine mount bracket.
13. To install, reverse the removal procedure.
