Camshafts - RH

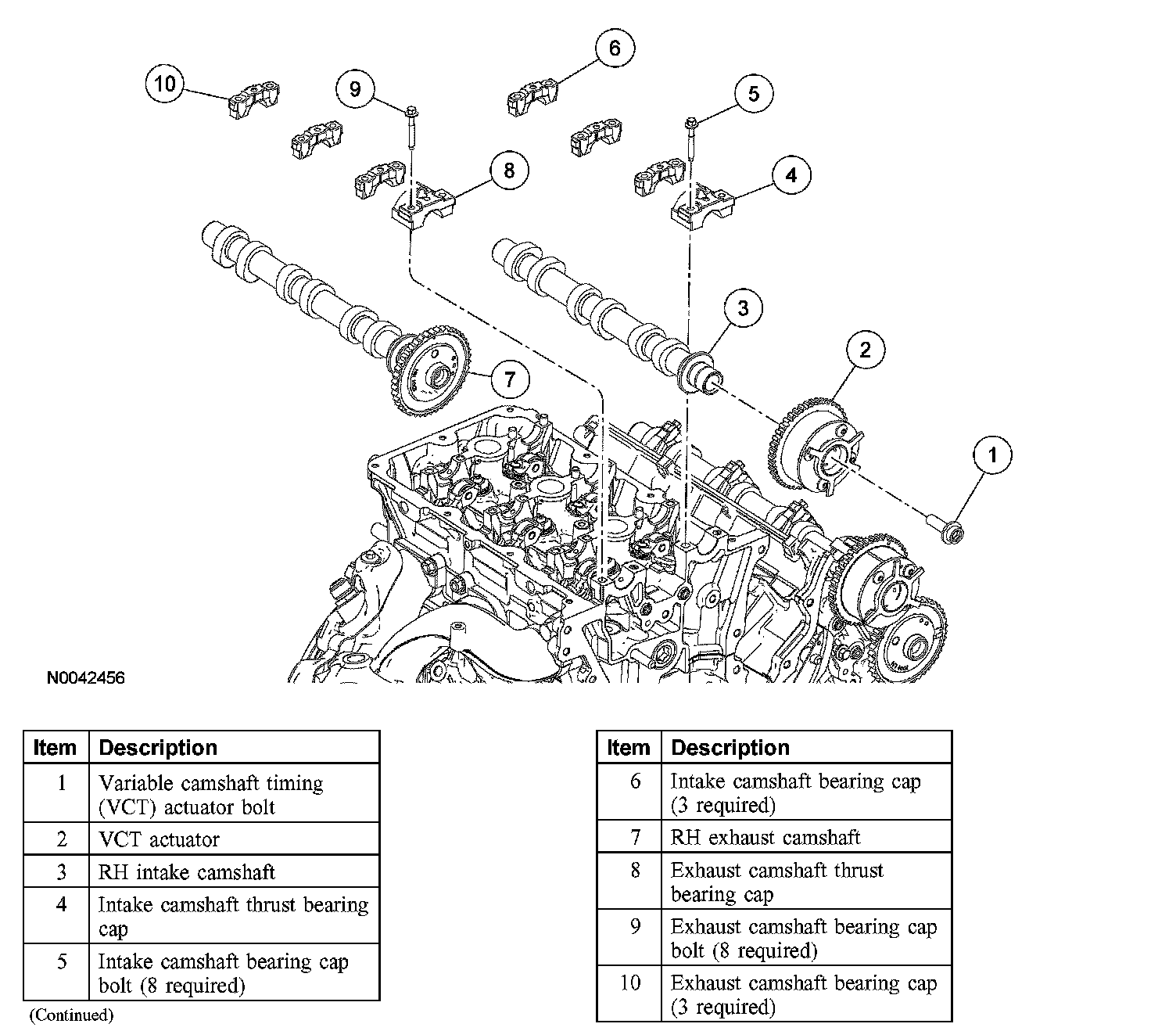

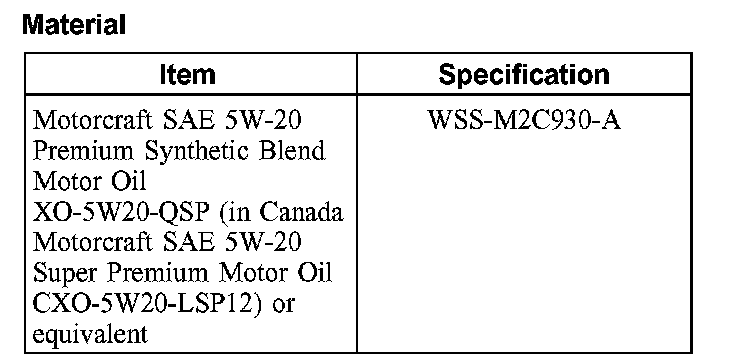

Camshafts - RHMaterial:
Removal
1. Remove the timing drive components.
2. CAUTION: The camshafts must be in the NEUTRAL position before removing the bearing caps.
Verify the camshafts are in the NEUTRAL position.
3. CAUTION: Cylinder head camshaft bearing caps and cylinder heads are numbered to verify that they are assembled in their original positions.
CAUTION: After loosening all of the camshaft bearing cap bolts, remove the camshaft bearing thrust caps (5R and 1R) first, or damage to the thrust caps may occur.

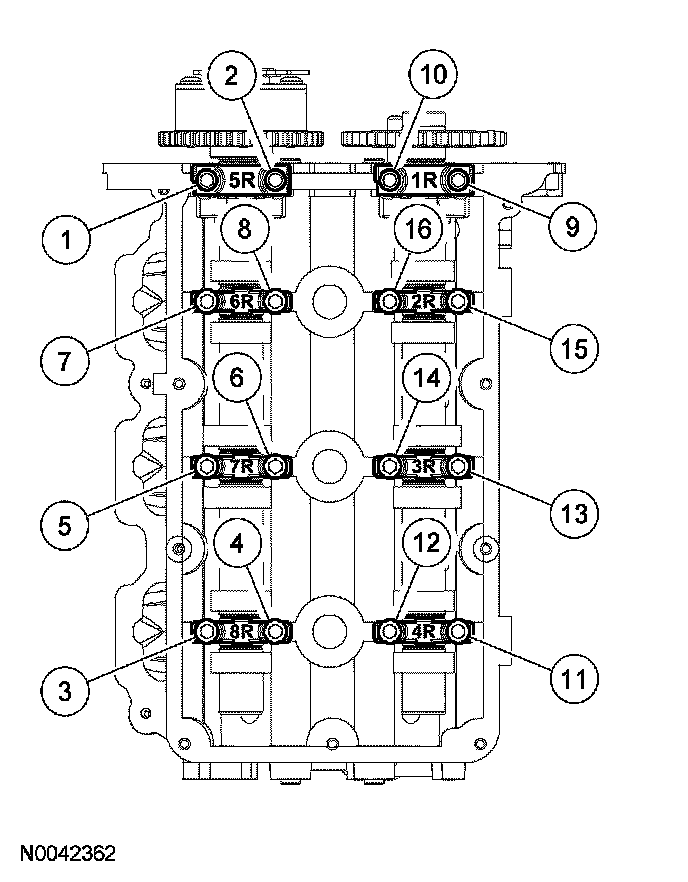

Loosen the bolts evenly in the sequence shown.

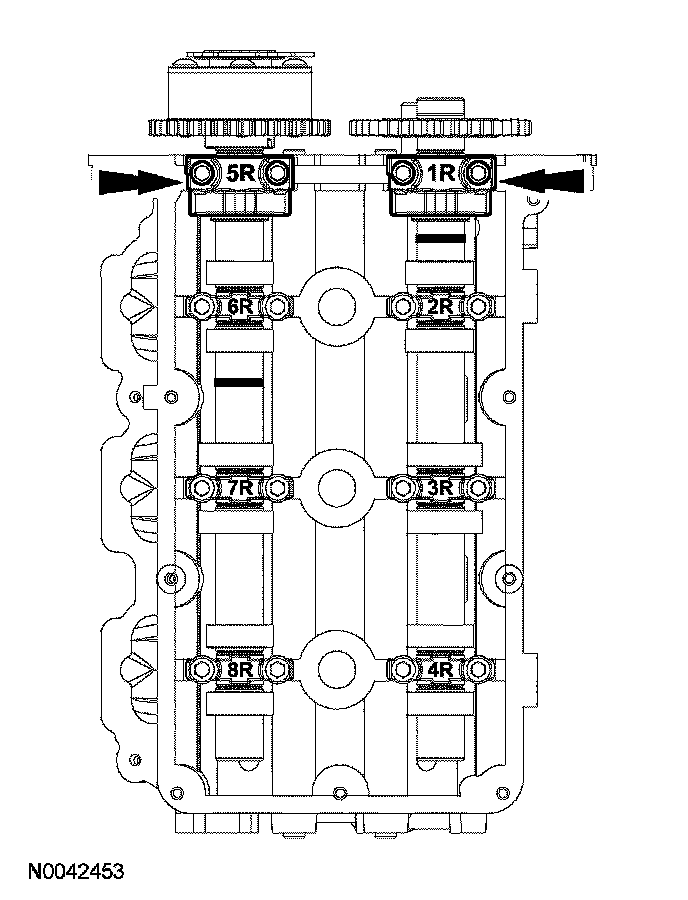

1 Remove the camshaft bearing thrust caps (5R and 1R).
2 Remove the remaining camshaft bearing caps.
3 Remove the camshafts from the cylinder head.

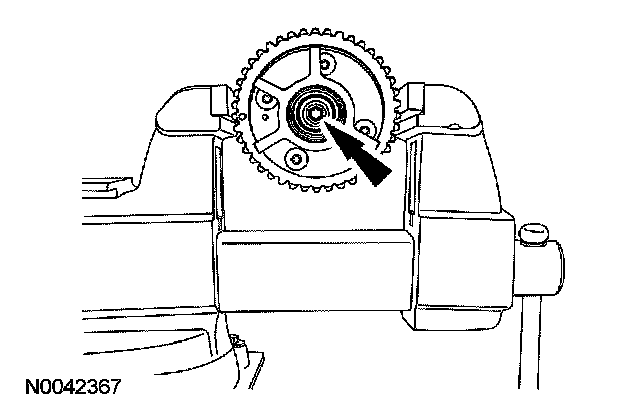

4. Position the intake camshaft in a soft-jawed vise and remove the bolt and the variable camshaft timing (VCT) actuator.
Installation

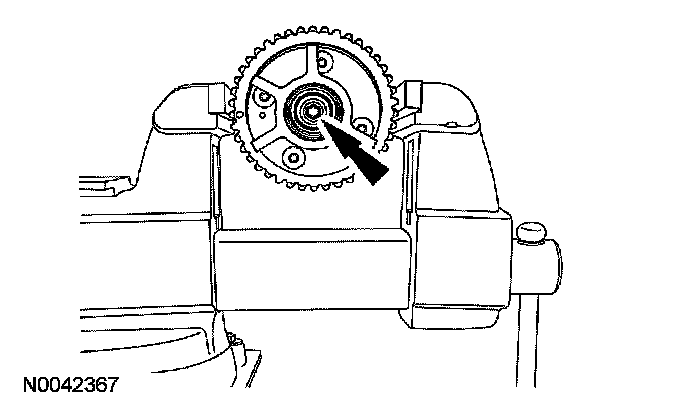

1. Position the intake camshaft in a soft-jawed vise and install the VCT actuator and bolt.
^ Tighten to 40 Nm (30 ft. lbs.) plus an additional 90 degrees.
2. CAUTION: The camshafts must be installed in the NEUTRAL position.
Lubricate the camshafts with clean engine oil and carefully position the camshafts onto the cylinder head.

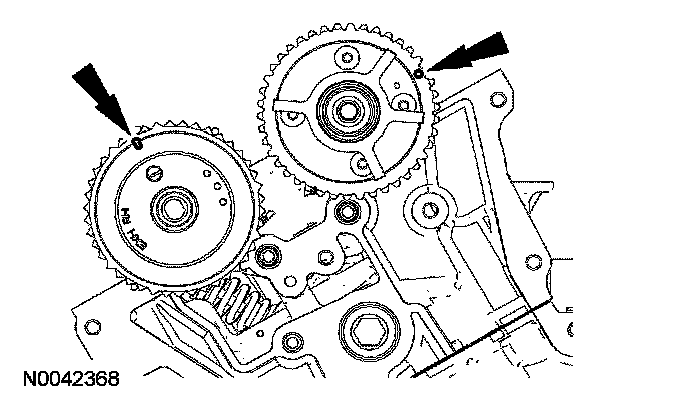

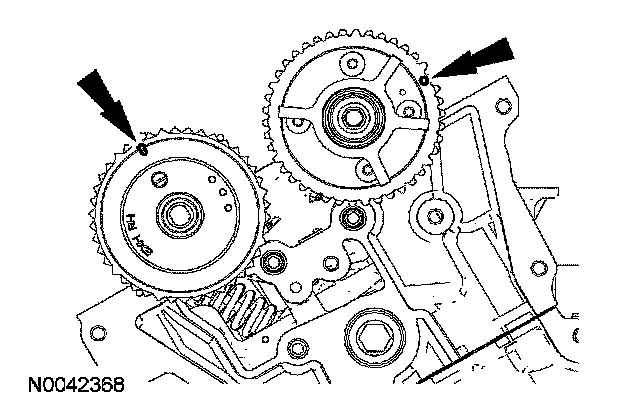

^ Align the camshafts in the NEUTRAL position as shown.
3. CAUTION: Do not install the camshaft bearing thrust caps until all of the camshaft bearing caps have been installed, or damage to the thrust caps may occur.
NOTE: Lubricate the bearing surfaces of the camshaft bearing caps with clean engine oil.
Install the camshaft bearing caps.
^ Loosely install the bolts.
4. NOTE: Lubricate the bearing surfaces of the camshaft bearing thrust caps with clean engine oil.
Install the camshaft bearing thrust caps.
^ Loosely install the bolts.

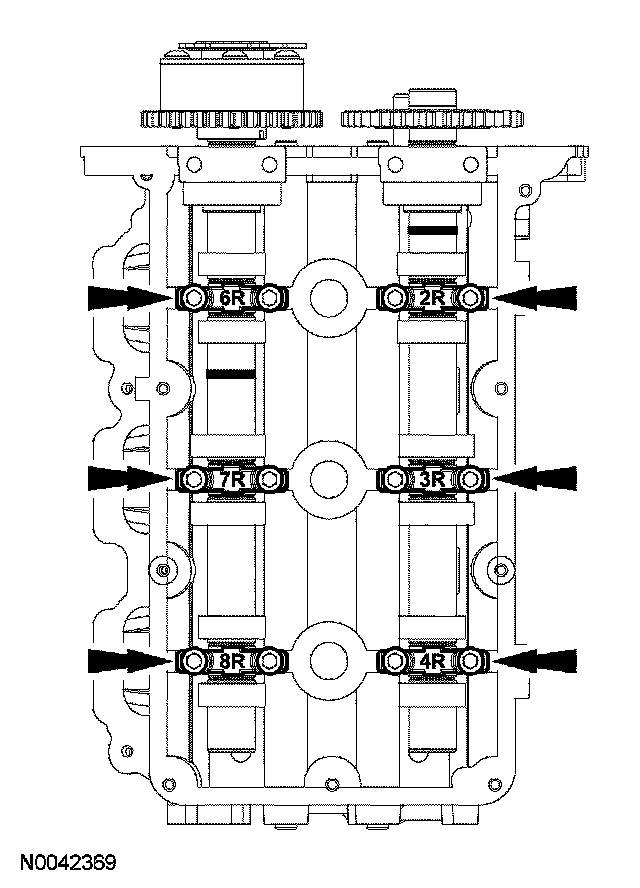

5. Tighten the camshaft bearing cap bolts in the sequence shown to 10 Nm (89 inch lbs.).
6. Install the timing drive components.
