Thermostat Bypass Hose: Service and Repair

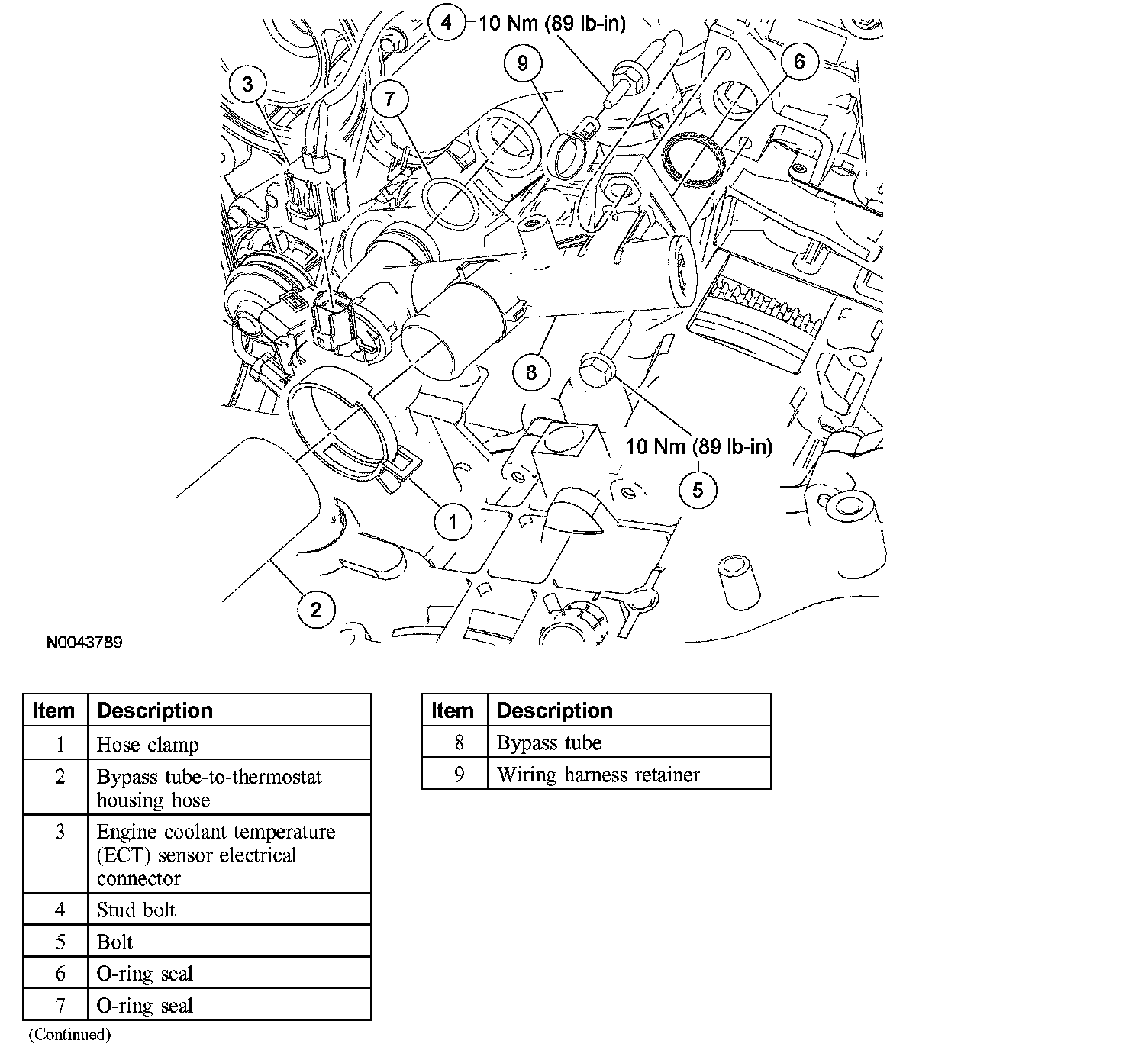

Bypass Tube - 3.0L (4V)

Material:

Removal and Installation
1. Remove the thermostat housing.
2. Remove the bypass tube-to-thermostat housing hose.
3. Disconnect the engine coolant temperature (ECT) sensor electrical connector.





4. Detach the wiring harness retainer from the bypass tube stud bolt.
5. Remove the bolt, stud bolt and bypass tube.
^ To install, tighten the bolt and stud bolt to 10 Nm (89 inch lbs.).
6. Remove and inspect the O-ring seals, install new seals if necessary.
7. To install, reverse the removal procedure.
^ Lubricate the O-ring seals with clean engine coolant.
8. Fill and bleed the cooling system.
