Drive Belt

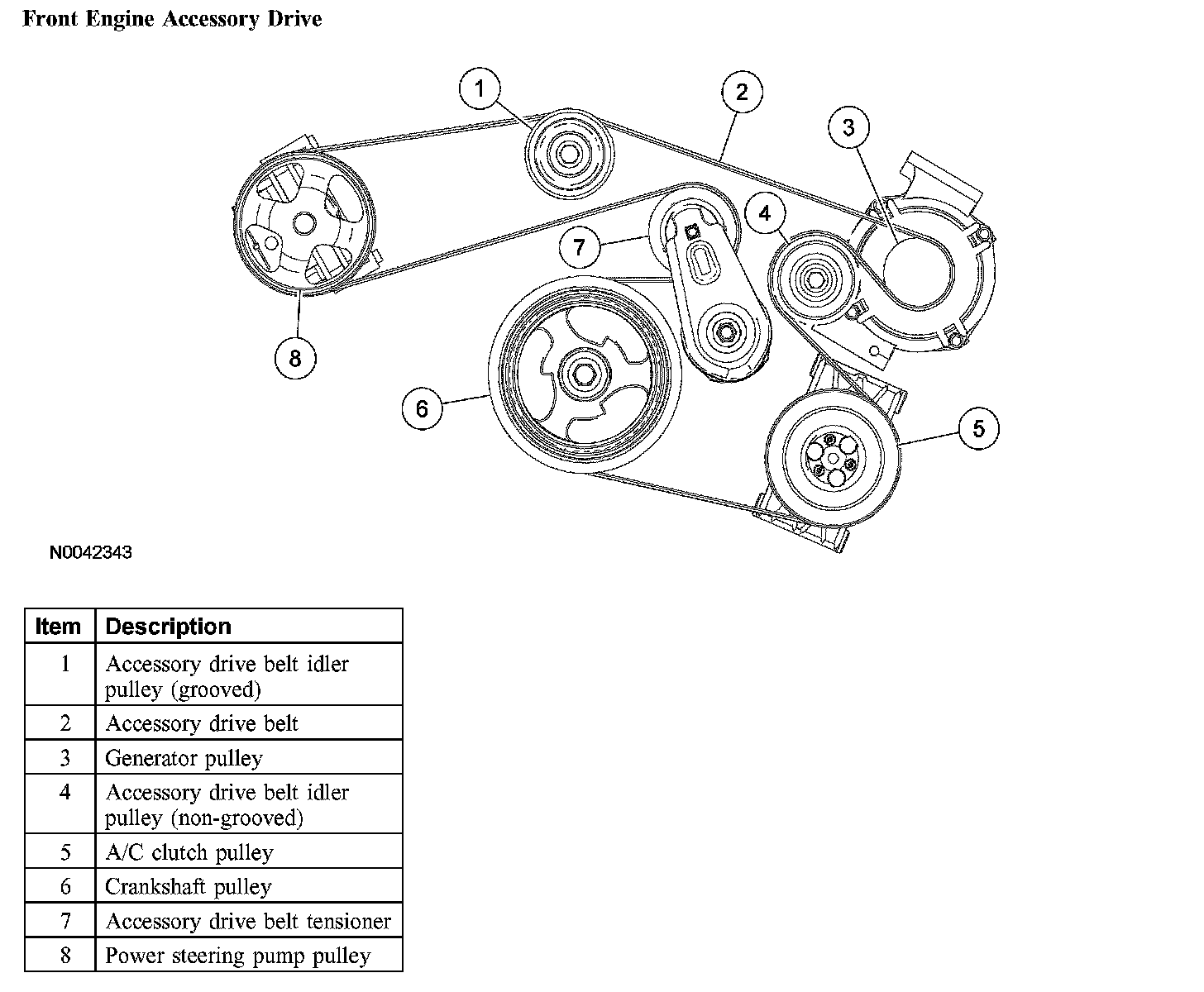

Front Engine Accessory Drive

Front Engine Accessory Drive:

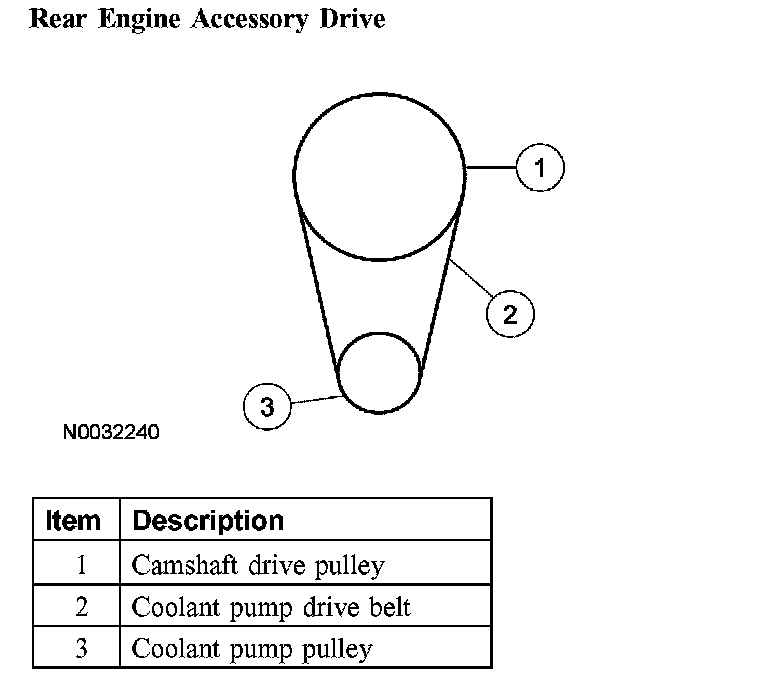

Rear Engine Accessory Drive

Rear Engine Accessory Drive:
