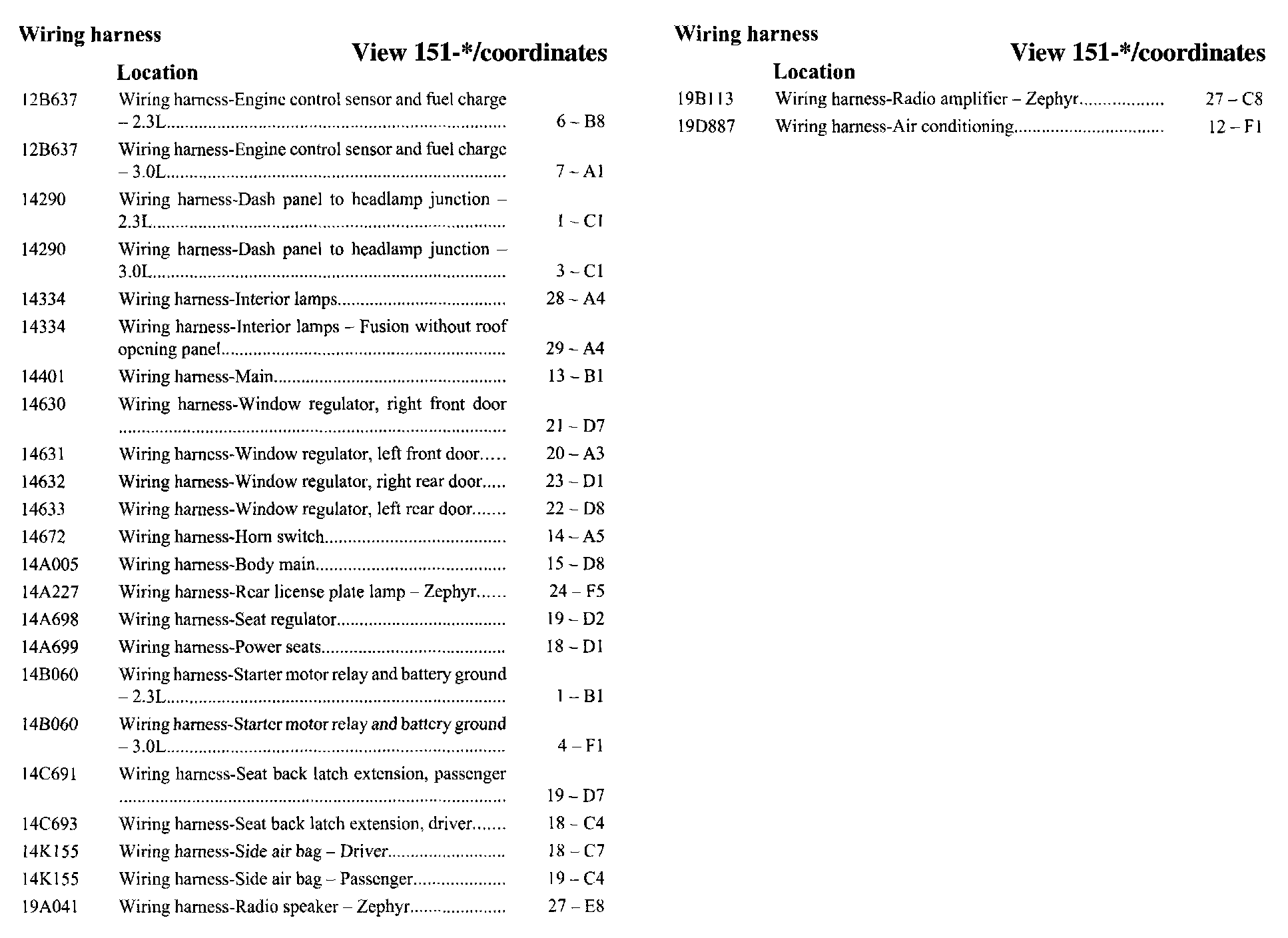

Harness Location Index

PLEASE NOTE: If a link on the Harness Location Index to a View is not provided, that means that the Harness and/or View in question does NOT apply to the vehicle model selected.


12B637-19B113:
