Home >> Lincoln >> 2006 >> Zephyr V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Wheel

Steering Wheel

STEERING WHEEL SWITCH

C2998:

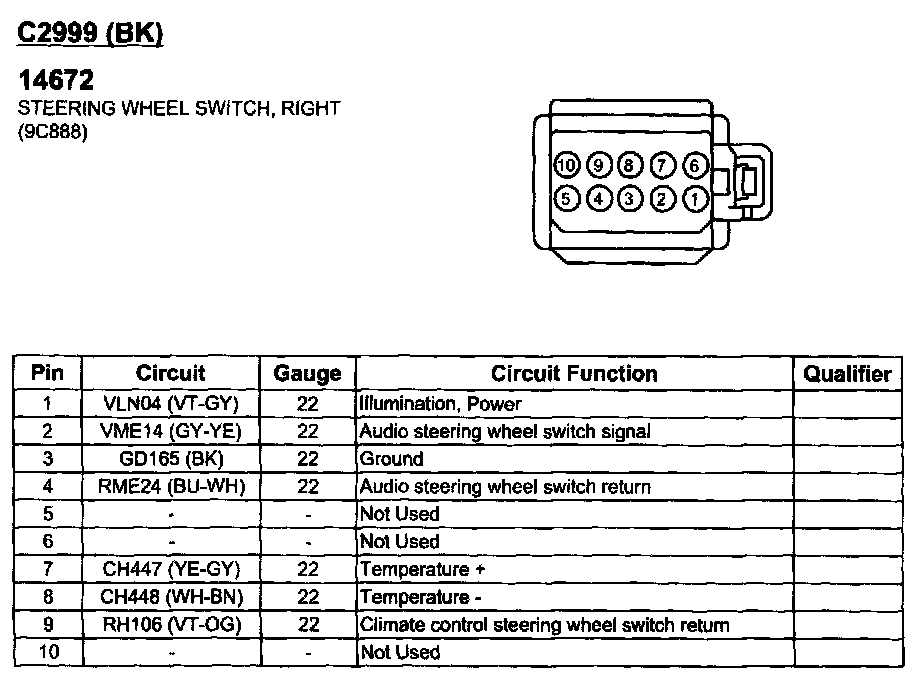

C2999:
