Parking Brake Cable: Service and Repair

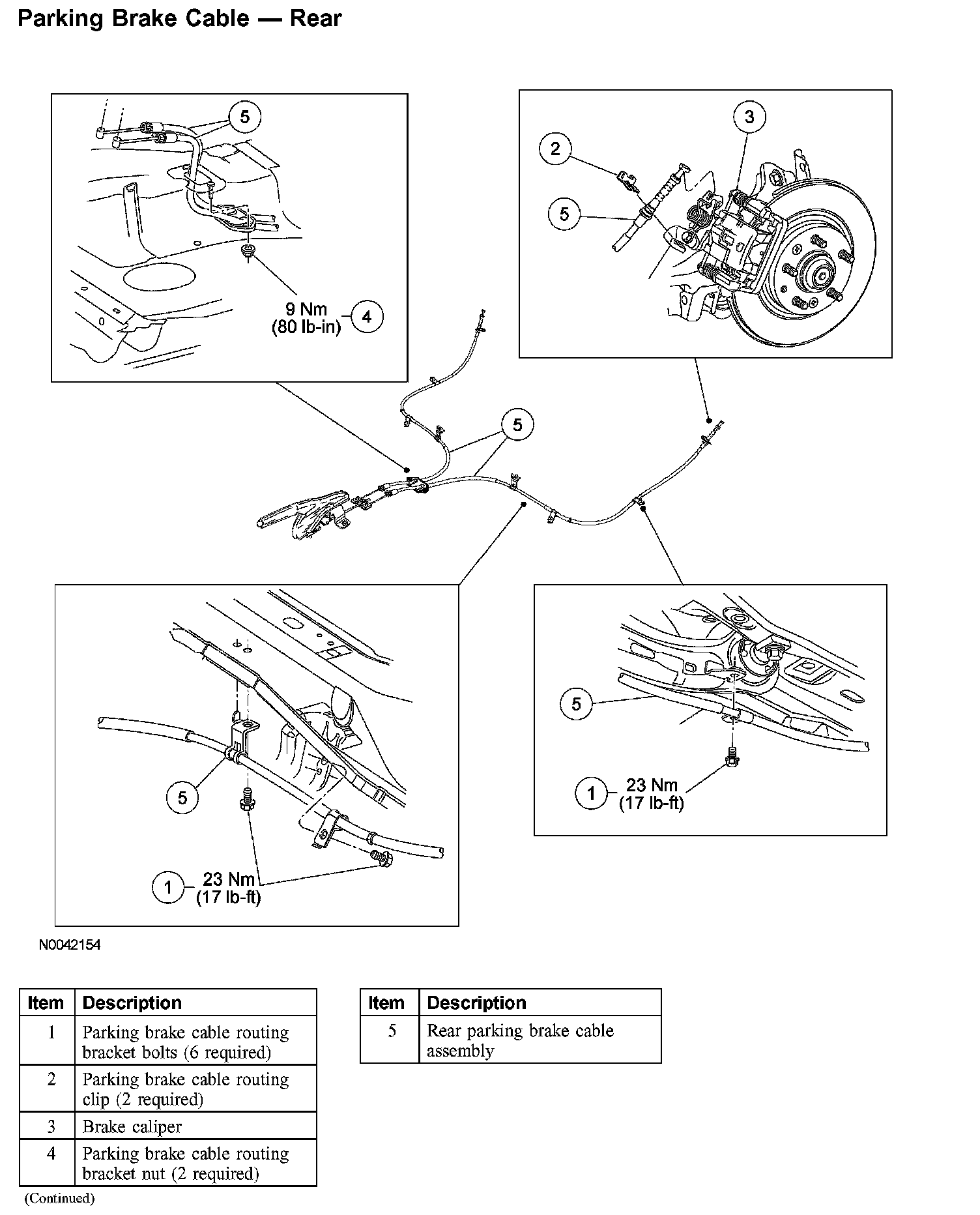

Parking Brake Cable - Rear

Parking Brake Cable - Rear:

Removal and Installation
1. Remove the floor console. For additional information, refer to Console.
2. Loosen the parking brake control adjusting nut.
3. Disconnect the rear parking brake cables from the equalizer.
4. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.





5. Remove the heat shield.
^ Remove the 6 nuts, the 2 pin-type retainers and the heat shield.
6. Remove the 2 parking brake cable routing bracket nuts.
^ To install, tighten to 9 Nm (80 inch lbs.).
7. Remove the 6 parking brake cable routing bracket bolts.
^ To install, tighten to 23 Nm (17 ft. lbs.).
8. Remove the 2 parking brake cable routing clips.
9. Disconnect the rear parking brake cables from the calipers and remove the cables.
10. To install, reverse the removal procedure.
Adjust the parking brake cable.
