Brake Fluid Reservoir

Brake Fluid Reservoir

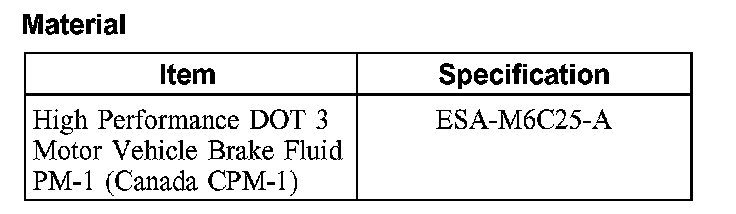

Material:

Removal and Installation

WARNING: Use of any other than approved DOT 3 motor vehicle brake fluid will cause permanent damage to brake components and will render the brakes inoperative. Failure to follow these instructions may result in personal injury.

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

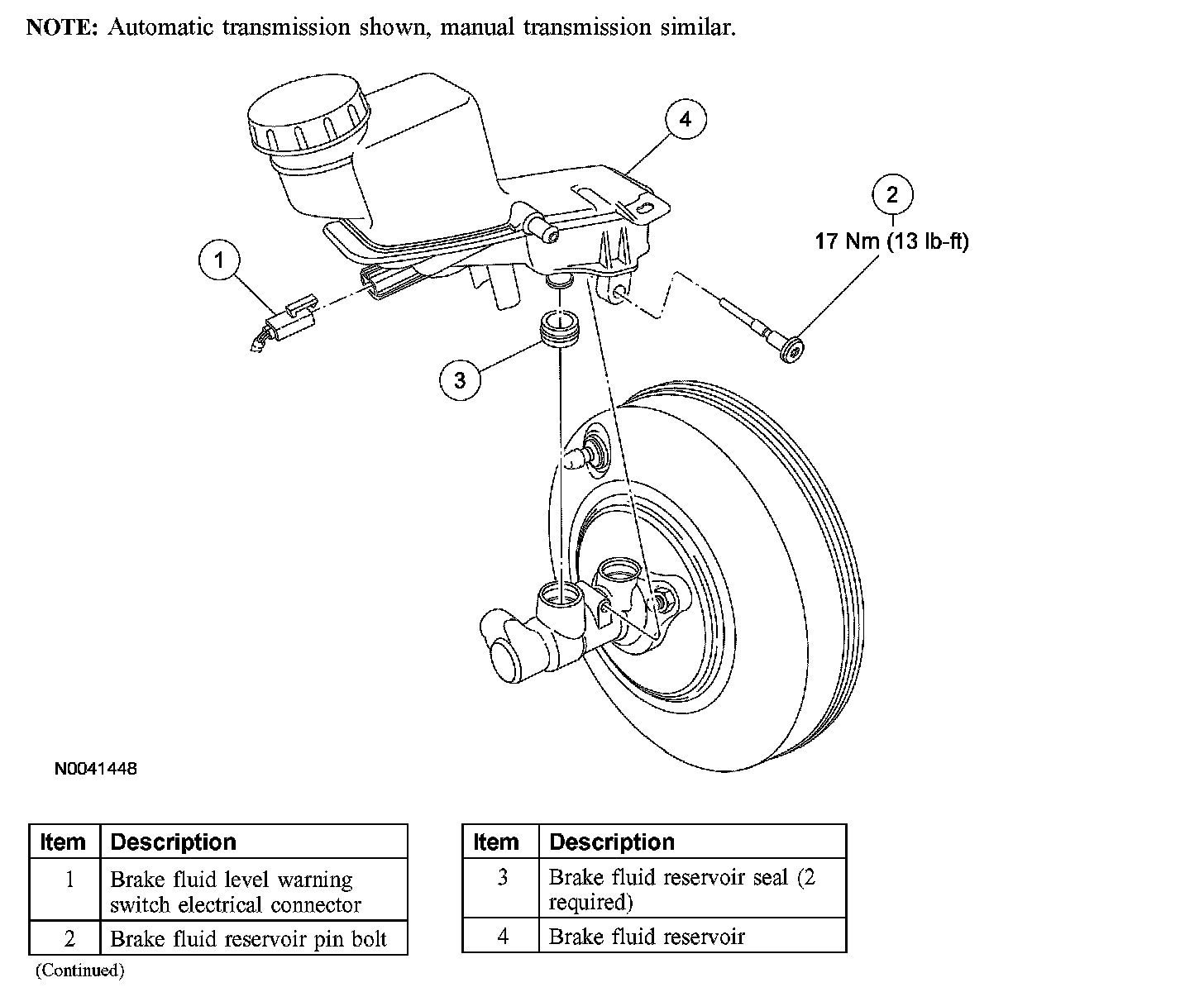

1. Remove the brake master cylinder.
2. Remove the reservoir pin bolt and the brake fluid reservoir.
^ To install, tighten to 17 Nm (13 ft. lbs.).
3. Remove and discard the 2 seals.

4. NOTE: Install new seals. Lubricate the seals with clean DOT 3 motor vehicle brake fluid.

To install, reverse the removal procedure.
^ Bleed the brake system.
^ If equipped with a manual transmission, bleed the clutch master cylinder.
