Brake Pedal Assy: Service and Repair

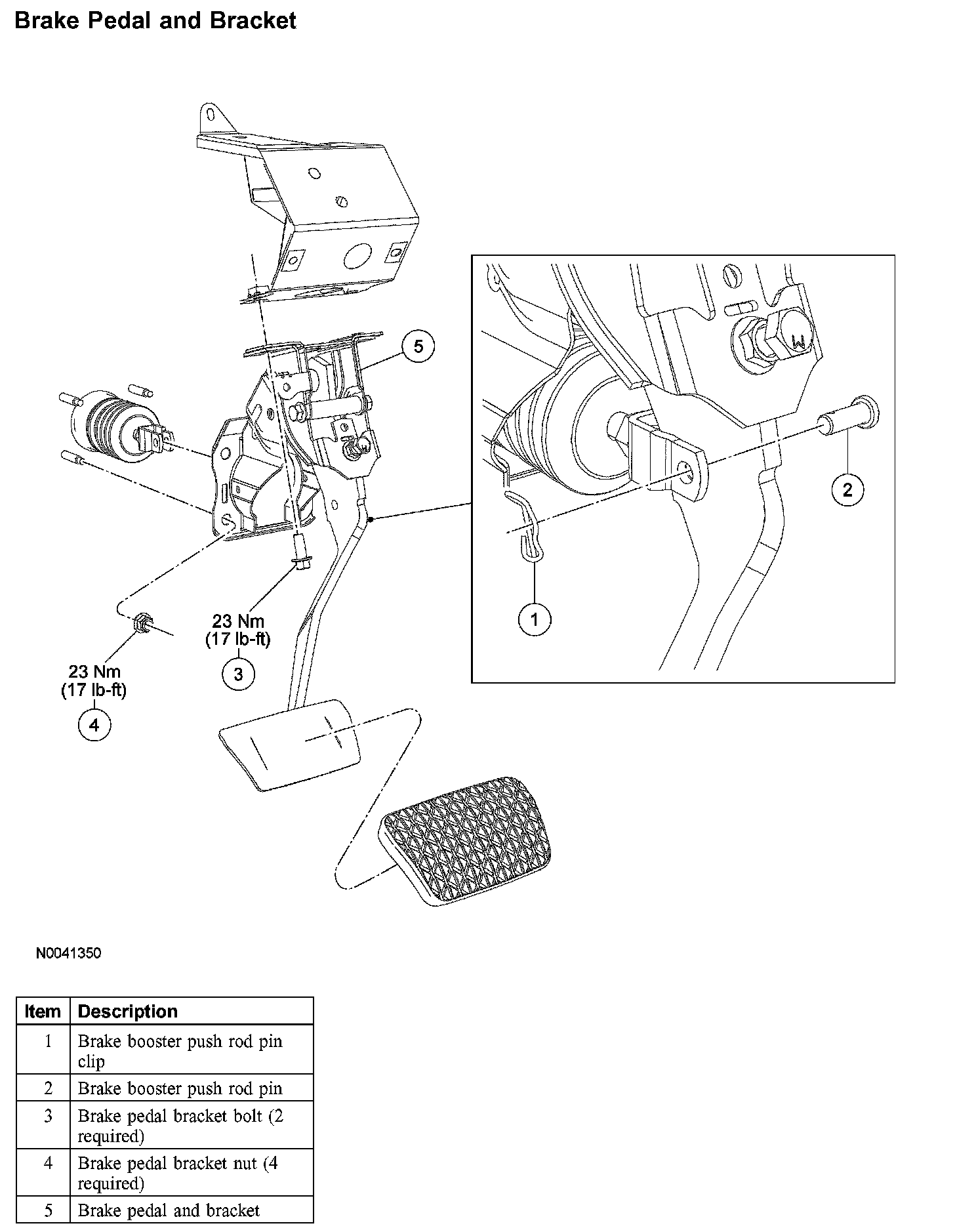

Brake Pedal and Bracket

Brake Pedal And Bracket:

Removal and Installation
1. Remove the brake booster push rod pin clip.
2. Remove the brake booster push rod pin.
3. Disconnect the stoplamp, switch from the brake pedal bracket.
4. Remove the 2 brake pedal bracket bolts.
^ To install, tighten to 23 Nm (17 ft. lbs.).
5. Remove the 4 brake pedal bracket nuts and the brake pedal and bracket assembly.
^ To install, tighten to 23 Nm (17 ft. lbs.).
6. To install, reverse the removal procedure.
