Rear Bumper Cover / Fascia: Service and Repair

REAR BUMPER COVER







Exploded View

Removal and Installation
1. Remove the rear lamp assembly.
2. Remove the 6 pin-type retainers (3 each side) from the rear splash shield.

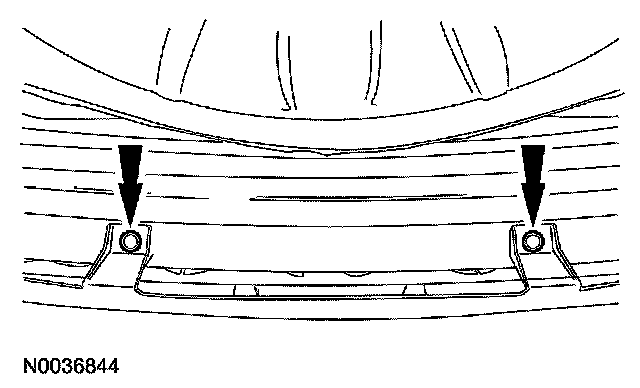

3. Remove the 2 pin-type retainers from the lower rear bumper cover.







4. Remove the 2 bolts and 2 pin-type retainers from the top of the rear bumper cover.

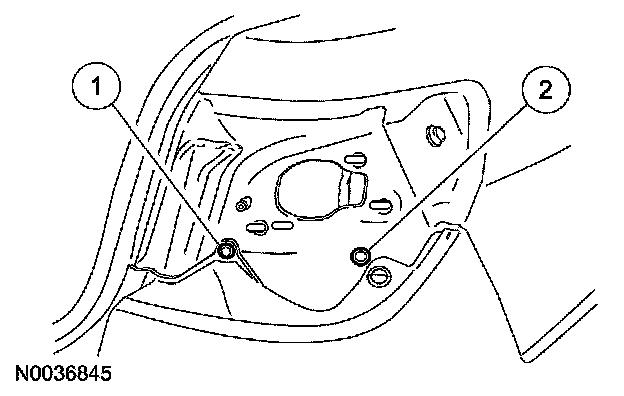

1 Remove the 2 bolts (1 shown).
2 Remove the 2 pin-type retainers (1 shown).

5. If equipped, disconnect the parking aid system electrical connector.
6. Remove the rear bumper cover.
7. To install, reverse the removal procedure.
