Parcel Shelf Speaker
PARCEL SHELF SPEAKER
Removal and Installation
1. Remove the parcel shelf.

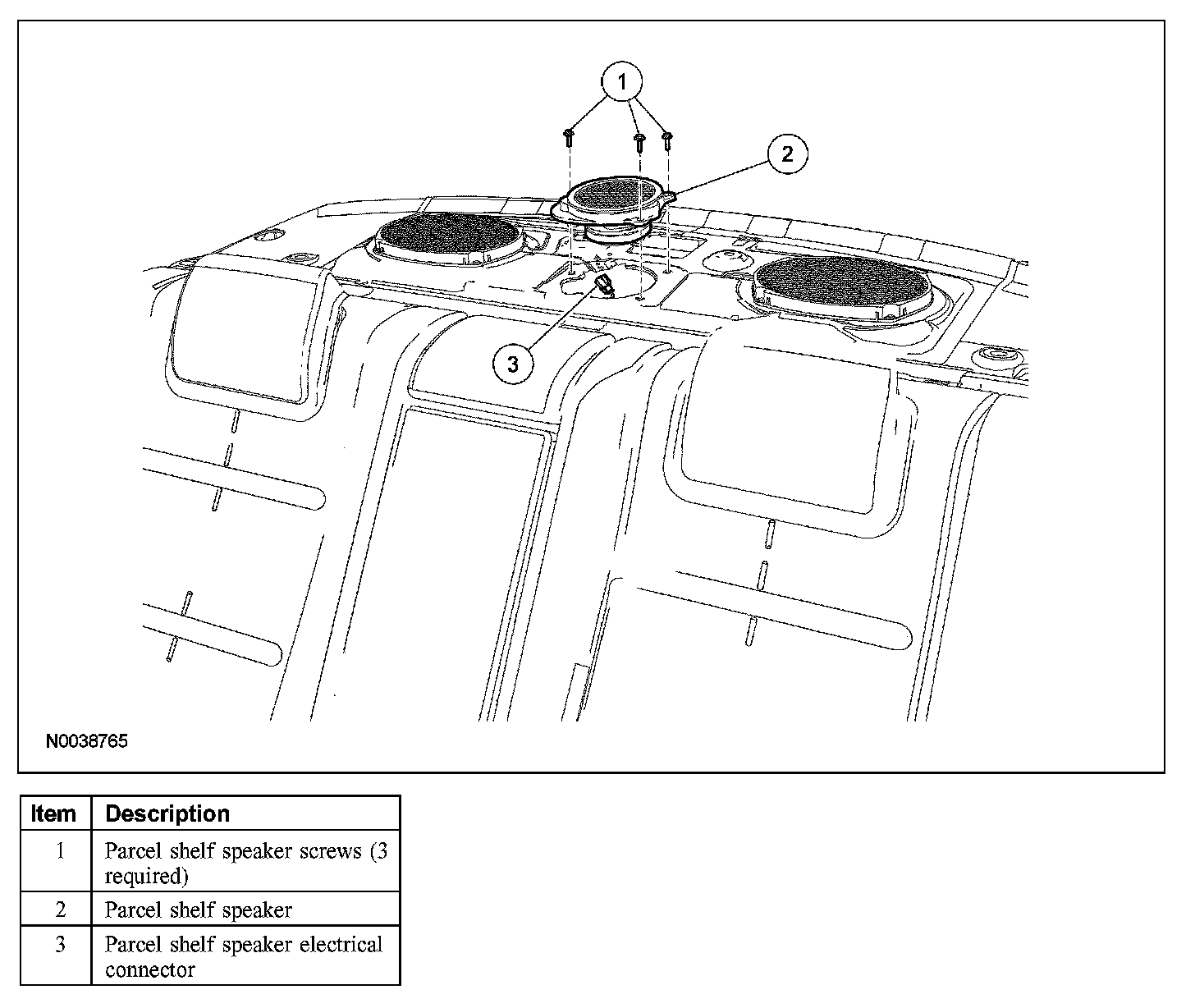

2. Remove the 3 screws and the parcel shelf speaker.
- Disconnect the electrical connector.
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the parcel shelf.
2. Remove the 3 screws and the parcel shelf speaker.
- Disconnect the electrical connector.
3. To install, reverse the removal procedure.
